Customized Ultrasonic Vibrating Screen , Flour Sieve Machine For Fine Materials
Customized Ultrasonic Vibrating Screen , Flour Sieve Machine For Fine Materials
Customized Ultrasonic Vibrating Screen , Flour Sieve Machine For Fine Materials
Customized Ultrasonic Vibrating Screen , Flour Sieve Machine For Fine Materials
Specifications
Brand Name :
TECHANG
Model Number :
TCCZS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~15 working days
Packaging Details :
Wooden case
Name :
Factory Customized Ultrasonic Vibrating Screen For Fine Materials
Motor Type :
Vibrating motor
Frequency :
50 / 60 HZ
Material :
Stainless Steel
Layer(s) :
1-4 Layers
Mesh size :
100~500 mesh
Capacity :
20 KG~20 T/H
Mesh clean :
Ultrasonic
Advantage :
Avoid blocking
Customized :
Acceptable
Description

Factory Customized Ultrasonic Vibrating Screen For Fine Materials

Description
Factory Customized Ultrasonic Vibrating Screen For Fine Materials is able to convert electric energy with 220V,50Hz or110V,60Hz into high frequency electric energy with 18KHz and then puts it into ultrasonic energy exchanger to make it change into mechanical virbration with 18KHz and attains the purpose of high effciency sieve and cleaning mesh, which makes it easy to sieve the superfine powder. This system uses a low amplitude, high frequency ultrasonic vibrating wave(mechanical wave)on the sieve mesh by the traditional vibrating sieve to mprove the sieving abilities of superfine powder.This product is suitable for the users who demand the high additional value and fine powder.

Customized Ultrasonic Vibrating Screen , Flour Sieve Machine For Fine Materials

Specification-Factory Customized Ultrasonic Vibrating Screen For Fine Materials

The below table shows the detailed data of different models for you reference, and we will choose a suitable model according to your specific materials and application.

Model

Effective diameter
(mm)

Effective area
(m2)

Mesh size
(mesh)

Layers

Power
(kw)

CZS600φ5400.2289100~5001~50.37
CZS800φ7300.41830.55
CZS1000φ9000.63591.1
CZS1200φ11000.94991.1
CZS1500φ14001.53861~41.5
CZS1800φ17102.26871~33
CZS2000φ19102.79221~33

Detailed Images

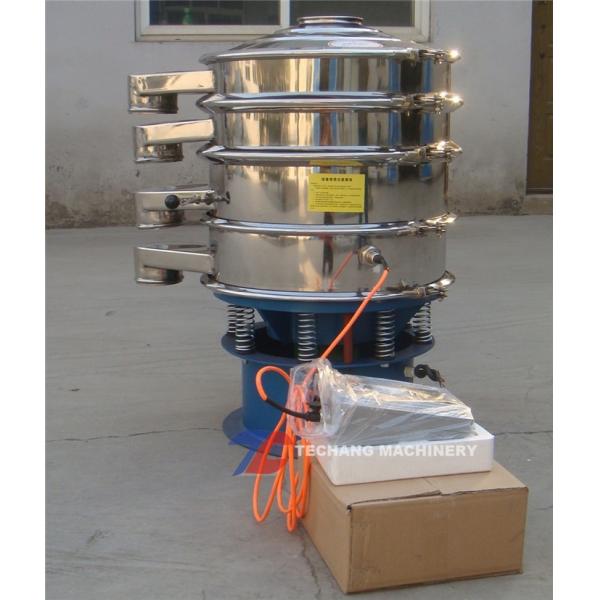

Factory Customized Ultrasonic Vibrating Screen For Fine Materials consists of cover, inlet, outlet, screen frame, ultrasonic screen, vibrating motor, vibrator, controller, and so on.

Customized Ultrasonic Vibrating Screen , Flour Sieve Machine For Fine Materials

Feature

Factory Customized Ultrasonic Vibrating Screen For Fine Materials has following features:
1. Fine sieving of sticky and difficult materials
2. Saving time for cleaning screen
3. Eliminating the pollution of bouncing balls to materials
4. Keeping screen mesh size & stabilizing sieving precision
5. Disintegrating adhesive materials, reducing the coarse materials
6. Decreasing sieving times

Application

Factory Customized Ultrasonic Vibrating Screen For Fine Materials is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
Customized Ultrasonic Vibrating Screen , Flour Sieve Machine For Fine Materials
