Carbon Steel Plate Chain Bucket Elevator Conveyor For Limestone / Coal / Gypsum
Carbon Steel Plate Chain Bucket Elevator Conveyor For Limestone / Coal / Gypsum
Specifications
Brand Name :
TECHANG
Model Number :
TCNE
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
20~30 working days
Packaging Details :
Wooden case
Name :
Carbon Steel Limestone Conveyor Chain Plate Bucket Elevator
Working condition :
Continuous type
Wind speed :
29.8~31 m/s
Application :
Lifting materials
Usage :
Material Transmission
Capacity :
2.5~501.8 L
Chain material :
Plate link chain
Lifting capacity :
16~800 m3/h
Customized :
Acceptable
Description

Carbon Steel Limestone Conveyor Chain Plate Bucket Elevator

Product Description

Carbon Steel Limestone Conveyor Chain Plate Bucket Elevator is suitable for vertical conveying of powdery, granular and small lump materials and abrasive materials which their temperature generally is less than 200℃ and its largest lifting height is 40m. The main features includes: wide lifting range, large transmission capacity, small drive efficiency, flow-type feed, gravity induced unloading, long service life, excellent sealing performance, stable and reliable operation, convenient operation and maintenance, compact struture, good rigidity and low operation cost.

Carbon Steel Plate Chain Bucket Elevator Conveyor For Limestone / Coal / Gypsum

Specification

The following table shows the detailed data of different models of Carbon Steel Limestone Conveyor Chain Plate Bucket Elevatorfor your reference.

Model Capacity Type of hopper Max Material Size (mm)
Bucket Volume(L) Bucket Pitch(mm) Bucket Speed(m/m) Percentage (%)
m3/h 10 25 50 75 100
NE15 16 2.5 203.2 29.8 65 50 40 30 25
NE30 31 7.8 304.8 30.1 90 75 58 47 40
NE50 60 14.7 304.8 30.1 90 75 58 47 40
NE100 110 35 400 31 130 105 80 65 55
NE150 165 52.2 400 31 130 105 80 65 55
NE200 220 84.6 500 30 170 135 100 85 70
NE300 320 127.5 500 30 170 135 100 85 70
NE400 441 182.5 600 30 205 165 125 105 90
NE500 470 260.9 700 30 240 190 145 120 100
NE600 600 300.2 700 30 240 190 145 120 100
NE800 800 501.8 800 30 275 220 165 135 110

Detail Pictures

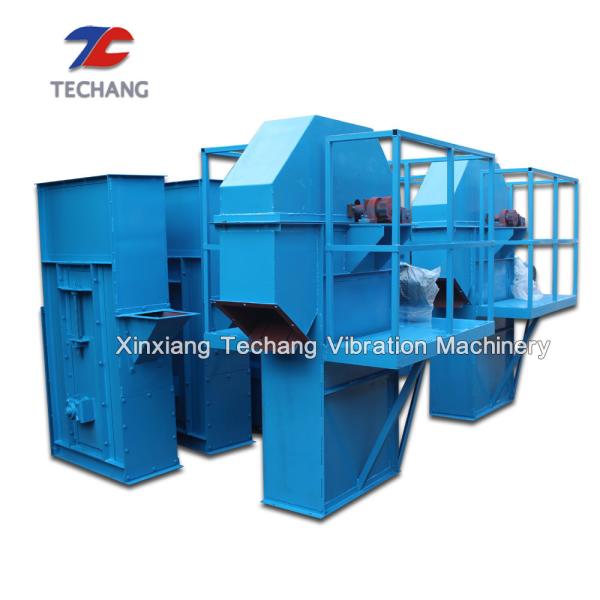

Carbon Steel Limestone Conveyor Chain Plate Bucket Elevator consisits of hoppers, actuators, top and bottom rollers (or sprockets, tape, traction chains), tensioning devices and casings, etc.

Carbon Steel Plate Chain Bucket Elevator Conveyor For Limestone / Coal / Gypsum

Application

Carbon Steel Limestone Conveyor Chain Plate Bucket Elevator is used for vertically elevating block and granular materials of limestone, coal, gypsum, clinker, clay, as well as powder materials of raw material, cement, coal powder and other materials in quarry plant, beneficiation plant, drying plant or cement production line.
