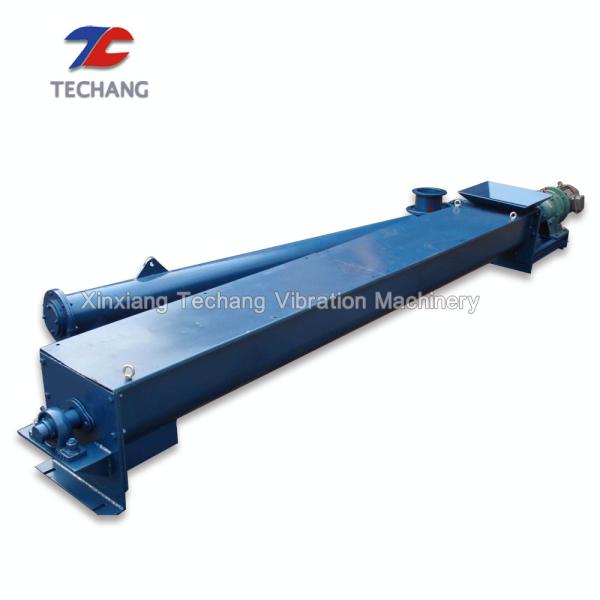

Professional U Trough Screw Conveyor , High Speed Shaftless Screw Conveyor
Professional U Trough Screw Conveyor , High Speed Shaftless Screw Conveyor
Specifications
Brand Name :
TECHANG
Model Number :
TCLS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
20~30 working days
Packaging Details :
Wooden case
Product name :
Professional Custom U Trough Shaftless Screw Conveyor
Structure :
Conveyor System
Usage :
Material Transimission
Power(W) :
.4kW - 22kW
Application :
chemical
Feature :
Simple Operation
Color :
As requirement
Warranty :
1 Year
Voltage :
220v or as your local power
Description

Professional Custom U Trough Shaftless Screw Conveyor

Product Description

U Trough Shaftless Screw Conveyor is the main units for mechanical transport operation of various departments of industry and agricultures, screw conveyor can be used to reduce labor intensity and improve efficiency. The working temperature of the screw conveyor is usually -20 ~ 40℃, the temperature of the conveying material is generally -20 ~ 80℃, the screw conveyor suitable for horizontal and small angle arrangement, inclination to not exceed 15, if the tilt angle is too large please use GX series screw conveyor.

Professional U Trough Screw Conveyor , High Speed Shaftless Screw Conveyor

Advantages

1. The machine is small in size and high in speed, ensuring fast and uniform delivery.
2. The sealing is good and the shell is made of seamless steel tube. The end part is connected to each other by flanges and is rigid.

3. The application range of screw conveyor is very wide, suitable for conveying powdery materials.
4. Simple structure, low cost, small size, safe operation and can be sealed during operation. It's an ideal delivery device.
5. Large carrying capacity and safe and reliable.
6. Strong adaptability, convenient installation and maintenance, long life.
7. The machine has simple structure, small dimension, low cost and safe operation. It can meet the requirements of multi-point feeding and discharging according to process requirements.
8. The structure is novel, the technical index is advanced, the sealing device has little resistance, good abrasion resistance, low noise of the whole machine, good sealing.

​

Specification

Model Screw diameter Screw pitch n---rotation speed(r/min), allowable deviation<10%
Q---volume(m3/h), fill-factor=0.33
(mm) (mm) n Q n Q n Q n Q
LS160 160 112 112 8 90 7 71 6 50 4
LS200 200 100 100 14 80 12 63 10 50 7
LS250 250 90 90 24 71 20 56 16 45 13
LS315 315 80 80 34 63 26 50 21 40 16
LS400 355 71 71 64 56 52 45 41 36 34
LS500 400 63 63 100 50 80 40 64 32 52
LS630 450 50 50 145 40 116 32 94 25 80
LS800 500 40 40 208 32 165 25 130 20 110
LS1000 600 32 32 300 25 230 20 180 16 150

Features

1. High quality seamless steel tube enable stiffness, can customize to suit different working conditions and plant design.

2. High quality gear reducer with heavy duty design, high torque, low noise, no oil leakages and durable.

3. Size ranged from Φ168, Φ219, Φ273, Φ323, Φ407, inclination and length made to customer order.

4. Continuous fly with dual pitches to avoid self compaction, especially designed for long distance conveying for cement.

Benefits

1. Industrial quality product.

2. Worldwide spare parts availability.
3. Modular design features ensuring matching spare parts.

Working Principle

U Trough Shaftless Screw Conveyor is rotating spiral blade for screw conveyor conveying the material goes on, the material is not spinning force with the blades of screw conveyor is its own weight and screw conveyor casing material for material friction screw conveyor on the axis of rotation of the welding of spiral blade, blade surface type according to the conveying material have different entity type belt type surface type, such as type of screw conveyor screw axis of vane surface terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, when the captain a long, should add hanging bearing in the middle.

Application

1. Agriculture: livestock feed, food, powder, etc.

2. Building materials: cement, sand, slaked lime,refractory material, etc.

3. Ceramic industry: clay, silica, sand, polishing materials, etc.

4. Food industry: soybean, peanut, starch, milk powder, salt, sugar, etc.

5. Plastics industry: plastic powder, plastic particles, etc.

6. Wood industry: wood chips, wood sawing surface and byproducts, etc.

7. Environmental: the filter material, fly ash, fixed residue, waste, etc.

Professional U Trough Screw Conveyor , High Speed Shaftless Screw Conveyor
