Economical Laundry Towel Folding Machine Improving Labor Productivity High Stability
Economical Laundry Towel Folding Machine Improving Labor Productivity High Stability
Specifications
Place of Origin :
China
Brand Name :
Evergreen
Certification :
CE
MOQ :
1 set
Price :
Negotiable
Packaging Details :
export pallet/full packing, one 20' container can fit 3 sets of 100kg or 4 sets of 50kg washer extractors
Delivery Time :
20-40 days
Payment Terms :
T/T, L/C, Western Union
Material / metal processed :
Stainless Steel
Automation :
Automatic
Description

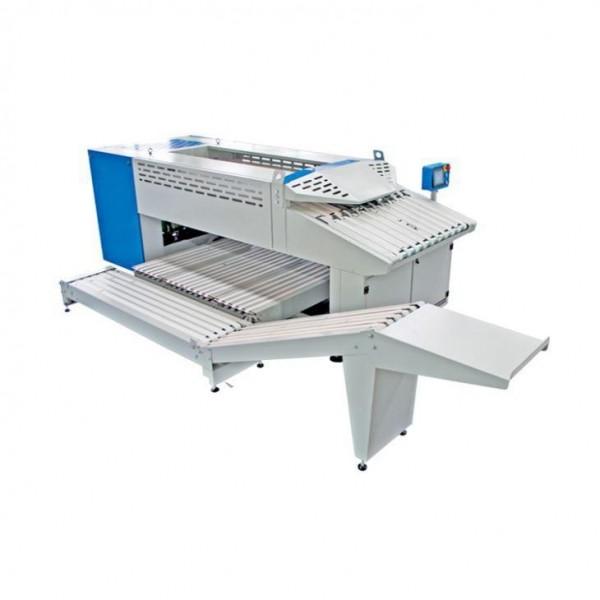

Towel Folding Machine

1. With high intelligent infrared detection, fault self diagnosis, Towel Folding Machine improve the safety protection function.
2. The sensors can detect the size of towels and adjust the width accordingly.
3. The towel folding machine will adjust its template to suit the thickness and weight of towel to ensure good quality folding and execute the second cross fold.
4. 12 photoelectric position sensors, accurate detecting.
5. Powerful electrostatic eliminator.
6. Four wheels for easy transportation.
7. Four motors and two LS converters.

Product Description

- With high intelligent infrared detection, fault self diagnosis, Towel Folding Machine improve the safety protection function.Available in various different languages display menu, easy to operate this towel folder.

- The sensors can detect the size of towels and adjust the width accordingly. The lateral fold is done with folding plate. The coder installed on the shaft measures the length of towel and selects folding method accordingly.

- The towel folding machine will adjust its template to suit the thickness and weight of towel to ensure good quality folding and execute the second cross fold. The second cross fold is done by special positive-reverse run and air blow, and an adjustable transport platform is added to ensure good quality. Discharge precisely positioned. Automatically and fast.

- Intelligent control adopted, combining with international technology of computer and communication, the controlling system is designed for actual requirements of towel folder folding, which posseses individual built-in software and comprehensive detecting function.

- Supported with rich experience, we are engaged in manufacturing and supplying Towel Folding Machine. Our principles are provide you with excellent quality products and considerate service, advance together with you hand in hand.We believe that you will like our product, you can buy with confidence.

Main data

Items

Unit

parameter

Model

ETF1920-1200

Externally connected

Compressed air pressure

Mpa

0.5-0.7

Compressed air connection dia

mm

∮12

Air consumption

L/min

200

Power supply

V/P/Hz

380/3/50

Frequency

Hz

50

Rated motor power

kw

1.8

Power consumption

kw.h/h

1.8

Controller voltage

V.DC

24

Cycle time

second

3-7

Capacity

pcs/h

800-1200

Max.size of towel before folding

mm

1100×1820

Max.size of towel after folding

mm

450×600

Way of lateral folding
(width adjusted of 140-380mm)

by pass
cross
1/3 folds

Cross
Fold
AB

by pass
/cross in＆out
1/3 folds
s-type1/3 folds
2cross folds
/regular fold(or1/3 folds)

Dimension(W×H×D)

mm

3818×1320×1305

Total dimension with stacker
involed (W×H×D)

mm

5160×1960×1350

Weight

kg

1200

Towel folding machine

Intelligent control system with large touch screen display.

Folding simple, stable, high speed.

Easily realize the setting of process parameters adjustment.

The invert-er positioning control ensures the folding precision.

The automatic stacking storage function
