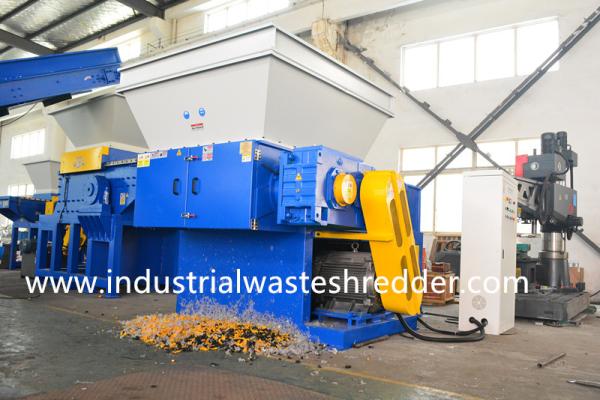

XR1300 Plastic Plallets Shredder,Plastic Lumps Shredder,Effective Rotor Length1350mm,75KW Motor

XR1300 Shredder for Plastic Pallet ,Pipes, and Plastic Lumps like PP PE PS ABS,HDPE,LD ..

Main Technical Data

Note:

1. The above machine configuration is the standard configuration of our factory, and the specific configuration will be different for different materials. Please call us for specific conditions or special requirements.

2. Single-shaft shredder knife holders can be divided into three types: welded knife holders, detachable knife holders and integrated knife holders. For details, please communicate with our company's sales staff to confirm that the knife holders are suitable.

3. The above technical parameters are for reference only, and are subject to change without notice. Customers please call and confirm with our sales staff before ordering.

Introduction of Single Shaft Shredder

XR series shredder is a universal shredder developed by our factory, which can effectively shred most materials. Small energy consumption, high output, easy to move and other characteristics. Users can choose different models according to the size of materials and the required handling capacity to achieve the purpose of "limited resources, unlimited recycling". This series of shredder can be used to tear more difficult to break plastic, rubber, tires, nylon plastic, automobile bumper, waste fishing nets, plastic pipe, fiber, paper, electrical components, cable, circuit board, wood, etc.

Features:

• 1. The single-spindle shredder is strong and durable. Suitable for recovery of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic pads. Shred particles can be as small as 20mm according to different needs. And according to customer demand to provide a variety of feeding hopper. The equipment is low speed rotary knife, low noise, more energy saving.
• 2. The single-spindle shredder is composed of moving cutter and fixed cutter to finish the function of shredding materials. The cutter head consists of a base axis and a number of quadrilateral moving cutter blocks. Moving knife block has 4 cutting edges, replace use. The moving knife block is arranged in v-shaped multiple rows along the base axis, and is fixed on the base axis with screws, which are rotated together with the base axis to form the moving knife disk. Static knife has two groups, fixed on the rack. The material is driven to the cutter head by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsive force is large and even. Suitable for recovery of bulk solid materials, irregular refractory materials, plastic containers and plastic barrels, tubes, film, fiber, paper, etc. Spindle speed is 45~100 RPM.
• 3. According to different materials, different knives and sticks can be selected. Choosing knives and sticks correctly can greatly improve the performance and production efficiency of the equipment. The knives and sticks provided by our factory are: high performance knives and sticks, hard material knives and sticks and thin film knives and sticks.
• 4. When choosing different knives and sticks, our factory also designs different installation methods of knife holders according to the characteristics of different materials: welding movable knife holder, detachable movable knife holder, and integral movable knife holder.
