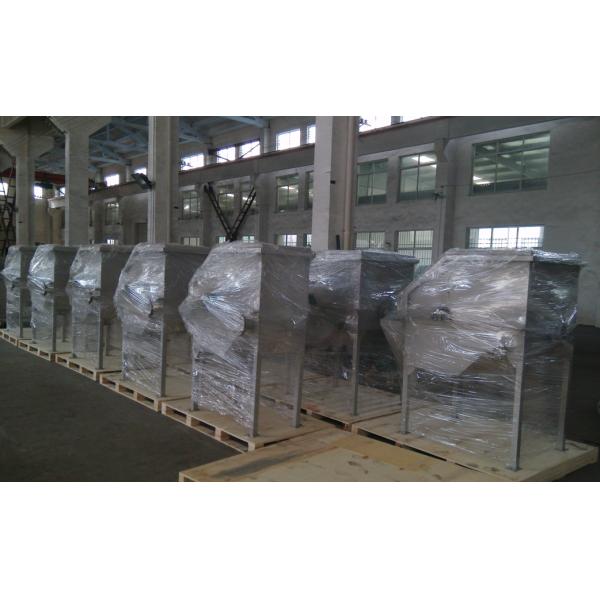

CMS Model Drum Wastewater Bar Screen Drum Type Microfiltration Machine
CMS Model Drum Wastewater Bar Screen Drum Type Microfiltration Machine
CMS Model Drum Wastewater Bar Screen Drum Type Microfiltration Machine
CMS Model Drum Wastewater Bar Screen Drum Type Microfiltration Machine
CMS Model Drum Wastewater Bar Screen Drum Type Microfiltration Machine
CMS Model Drum Wastewater Bar Screen Drum Type Microfiltration Machine
Specifications
Brand Name :
CHENENG
Model Number :
CMS
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Supply Ability :
10pcs per month
Delivery Time :
30 working days after received your payment
Packaging Details :
nude packing, bulk packed in wooden cases
Product Name :
Drum Screen
Application :
Water Treatment
Material :
CS Or SS
Standard :
ISO
Capacity :
8-912m³/h
Structure :
Compact Connection
Description

CMS model drum screen/Drum type microfiltration machine

Application

Mainly used in sewage pretreatment and industrial filtration,can greatly reduce treatment load of subsequent process.It can reduce30-60%or organic and inorganic suspended solid.

Advantage

  • Equipment use wedge grid as filter component,easy for liquid to get through,and not easy blocked.
  • Equipment use stainless steel grid,can be used for high temp and concentration liquid filtration.
  • Equipment use the drum design,having big filter area,so in the same treatment capacity,it has compact structure,small footprint,low power consumption.
  • Equipment use backwash nozzle to clean the blocked scum between the grid,manwal or automatic for the backwash can be the options.
  • Equipment can operate automatically and continuously,and can remove the scum automatically,high degree of automation.
  • Equipment use fully enclosed design,which can avoid secondary pollution when it is operating.
Model CMS CMS CMS CMS CMS CMS CMS CMS CMS
Gap 3/300 6/400 6/700 6/1000 6/1300 6/1600 6/2000 8/2000 8/2500
0.50mm Papermaking 6 20 40 60 80 100 130 190 225
Slaughter process 4 15 30 45 60 75 95 130 160
0.75mm Seafood process 5 17 35 50 70 90 110 140 170
Meat food process 6 20.5 40 60 80 100 130 190 240
1.00mm Meat food process 7.5 25 50 75 100 125 150 220 240
Vegetable food process 12 40 75 100 150 180 220 330 400

Model CMS CMS CMS CMS CMS CMS CMS CMS CMS
Parameter 3/300 6/400 6/700 6/1000 6/1300 6/1600 6/2000 8/2000 8/2500
Drum size(mm) Φ325*300 As:CMS6/400 Spec:Φ610*400 Φ800*2000 Φ800*2500
Motor power(kw) 0.18 0.37 0.55 0.75 1.1
Drum rotate speed(rpm) 16 10-11 8-9
Equipment length(mm) 860 990 1290 1590 1890 2190 2590 2590 3090
Equipment width(mm) 830 1290 1510
Equipment height(mm) 1055 1600 1700 1950
Ground level of the outlet water 350 500 600 650
Inlet pipe diameter(mm) DN65 DN100 DN150 DN150 DN200 DN200 DN250 DN300 DN400
Outlet pipe diameter(mm) DN100 DN150 DN200 DN200 DN250 DN300 DN250*2 DN300*2
Drain pipe diameter(mm) DN50
