CAF cavitation water treatment device for remove solid suspended particles , grease
CAF cavitation water treatment device for remove solid suspended particles , grease
CAF cavitation water treatment device for remove solid suspended particles , grease
CAF cavitation water treatment device for remove solid suspended particles , grease
CAF cavitation water treatment device for remove solid suspended particles , grease
CAF cavitation water treatment device for remove solid suspended particles , grease
CAF cavitation water treatment device for remove solid suspended particles , grease
CAF cavitation water treatment device for remove solid suspended particles , grease
Specifications
Brand Name :
CHENENG
Model Number :
ORF
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10pcs per month
Delivery Time :
30 working days after received your payment
Packaging Details :
nude packing, bulk packed in wooden cases
Product Name :
Cavitation air flotation
Application :
Water treatment
Material :
CS or SS
Standard :
ISO
capacity :
1-500m³/h
Structure :
Compact Connection
Description

CAF cavitation water treatment device for remove solid suspended particles , grease

Specifications

1. CAF
2. Cavitation air flotation machine
3. widely used to remove solid suspended particles, grease and jelly etc.

Product Description
I. CAF can cut your waste treatment cost by 40-90%

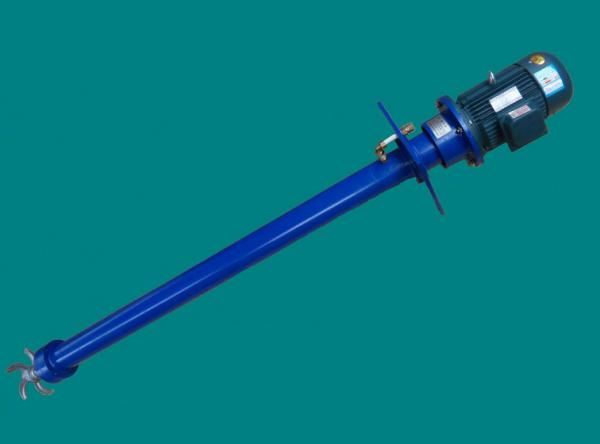

CAF System is a cavitation air flotation process. Microbubbles are injected into the wastewater without first
having to dissolve the air. Only air passes through the ejection nozzles. therefore no blockage can occur.
No need for air compressors,pumps, air saturation tanks.

II. CAF Features
1. Self contained system
2. rectangular,minimum space requirement
3. site preparation,construction,cost are minimum.

III. CAF Specification

Type
size

Treatment
capacity

Tank
Length
(mm)

Tank
Width
(mm)

Tank
Depth
(mm)

Aerator
power
(kw)

Skimmer
power
(kw)

ORF-1

1m³/h

1400

550

1100

0.37

0.18

ORF-3

3 m³/h

2500

800

1300

1.5

0.37

ORF-5

5 m³/h

2500

1000

1300

1.5

0.37

ORF-10

10 m³/h

3000

1200

1300

2.2

0.37

ORF-15

15 m³/h

4000

1200

1300

2.2

0.37

ORF-20

20m³/h

5000

1200

1300

2.2

0.37

ORF-30

30m³/h

5000

1600

1800

2.2

0.37

ORF-40

40m³/h

6000

1600

1800

2.2

0.37

ORF-50

50m³/h

6000

1800

1800

4.4

0.37

ORF-75

75m³/h

7000

2400

1800

4.4

0.55

ORF-100

100m³/h

8000

2400

1800

4.4

0.55

ORF-150

150 m³/h

11500

2400

1800

6

0.55

ORF-200

200m³/h

15000

2400

1800

9

0.55

ORF-300

300 m³/h

15000

3100

1800

12

0.55

ORF-400

400m³/h

17000

3600

1800

12

0.55

ORF-500

500m³/h

21000

4500

1800

15

1.10

CAF cavitation water treatment device for remove solid suspended particles , grease
