Specifications
MOQ :
1set
Product name :
Composite Filter
Material :
Carbon Steel / Stainless Steel/FRP
Size :
Customized
Color :
Blue/Green/Black/Yellow
Type :
water treatment system
Voltage :
220V/380V
Application :
Agriculture/Power/Oil & Gas/Mining/Medical & Laboratory/Environmental Protection
Usage :
Water treatment system/wastewater treatment system/pure water treatment system
Description

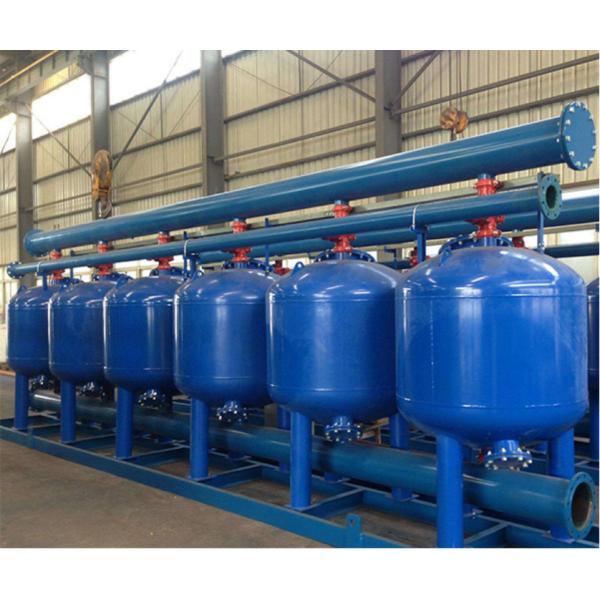

Customizability Water Treatment System - Composite Filter

1 . Descriptions:

Composite filters are efficient water treatment equipment that combine various filtration technologies and materials. Typically, composite filters use multiple layers of different types of filtration media, such as sand, quartz sand, activated carbon, and diatomaceous earth, with each layer serving a specific filtration function. The arrangement of these media layers can be customized based on the requirements and objectives of water quality treatment, making them ideal for both wastewater treatment systems and pure water treatment systems.

In composite filters, activated carbon and other adsorbent media can effectively adsorb organic matter, odors, and some dissolved chemicals, improving the taste and quality of water. Some composite filters may also include a biological filtration layer for the removal of microorganisms and nutrients needed for microbial growth. Like other filters, composite filters require backwashing after a period of operation to remove accumulated dirt and impurities, maintaining filtration efficiency and extending the media's lifespan in both wastewater treatment systems and pure water treatment systems.

2 . Product parameters:

Model Number DFX-1200 DFX-1400 DFX-1600 DFX-1800 DFX-2000 DFX-2200
Tank diameter (mm) 1200 1400 1600 1800 2000 2200
Inlet and outlet pipe diameter (mm) DN50 DN50 DN80 DN80 DN100 DN125
Tank material Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
Tank anti-corrosion
Paint antiseptic

Paint antiseptic

Paint antiseptic

Paint antiseptic

Paint antiseptic

Paint antiseptic
Single filter area (㎡) 1.1 1.5 2 2.5 3 3.8
Filtration speed (m/h) 10-15 10-15 10-15 10-15 10-15 10-15
Single processing capacity (m³/h) 10-15 15-20 20-30 25-40 30-45 40-60
Working pressure (MPa) 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4
Backwashing strength L/(s.㎡) 8-12 8-12 8-12 8-12 8-12 8-12
Single tank backwashing time (s) 60 60 90 120 120 180
Backwashing interval time (h) 4-8 4-8 4-8 4-8 4-8 4-8
Backwash control differential pressure (MPa) 0.08 0.08 0.08 0.08 0.08 0.08
Filter material form Quartz sand + Anthracite Quartz sand + Anthracite Quartz sand + Anthracite Quartz sand + Anthracite Quartz sand + Anthracite Quartz sand + Anthracite
Net weight of tank(t) 1.1 1.5 1.7 2 2.5 2.7
※parameter and detail are customizable to clients' demands.

3 . Specificities:

1. Efficient purification: Combined with a variety of filtration technologies, it can effectively remove a variety of pollutants and particles in the water and improve the purification effect of water.

2. Multifunctionality: according to the specific water quality characteristics and treatment needs, the filter media can be flexibly adjusted and combined to adapt to different water treatment scenarios.

3. Space-saving: composite filters are usually compact in design and cover a small area, suitable for applications with limited space.

4. Long life and stability: The combination design of various filter media and the backwashing function can extend the service life of the filter and maintain stable operation efficiency.

4 . Appliance:

1. Municipal water supply and industrial water treatment systems;

2. Tap water treatment for commercial and public buildings;

3. water treatment in industrial production processes;

4. Pretreatment in food and beverage processing;

5. Agricultural irrigation water pretreatment, etc.
