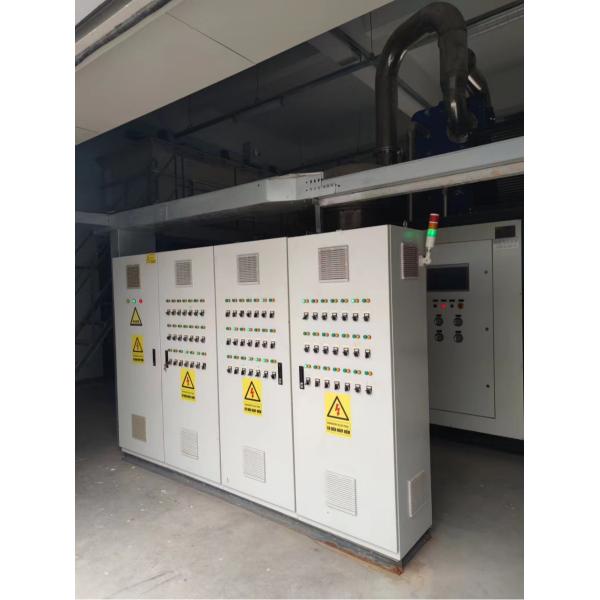

Customized Wastewater Station Control System - Power Distribution Cabinets

1 . Descriptions:

A power distribution cabinet is a device used for the distribution and control of electrical energy in a power system. It brings in power and distributes it to individual circuits through switchgear, protective devices, and power cables. The main function is to distribute power from the main power supply to different branch circuits, supplying a variety of loads. The internal configuration includes circuit breakers, fuses, and other protective devices. When an overload, short circuit, or other faults occur, it can quickly cut off the power supply to protect equipment and personnel safety. This is crucial for ensuring the reliable operation of both wastewater treatment systems and pure water treatment systems.

In the context of wastewater treatment systems and pure water treatment systems, the power distribution cabinet ensures that electrical energy is effectively managed and distributed to various components, such as pumps, sensors, and control systems.

2 . Product parameters:

3 . Configure components:

1. Circuit breakers: Used to protect circuits and equipment from overloads and short circuits.

2. Fuses: Fuse when the current exceeds the safe range to cut off the circuit and protect the equipment.

3. Energy meter: Used to measure and record power consumption.

4. Contactors: control the start and stop of electric motors and other high-power equipment.

5. Relay: Used for circuit protection and control.

6. PLC controller: programmable logic controller to realize complex automation control functions.

7. Busbar: conductive row or wire that conducts electrical energy.

8. Terminal block: used for cable connection and distribution.

4 . Appliance:

1. Industrial facilities: factories, production lines, power equipment, etc.

2. Commercial buildings: office buildings, shopping malls, hotels, etc.

3. Civil buildings: residential neighborhoods, schools, hospitals, etc.

4. Infrastructure: public facilities such as airports, stations, ports, etc.

5. Energy facilities: substations, wind farms, solar power stations, etc.
