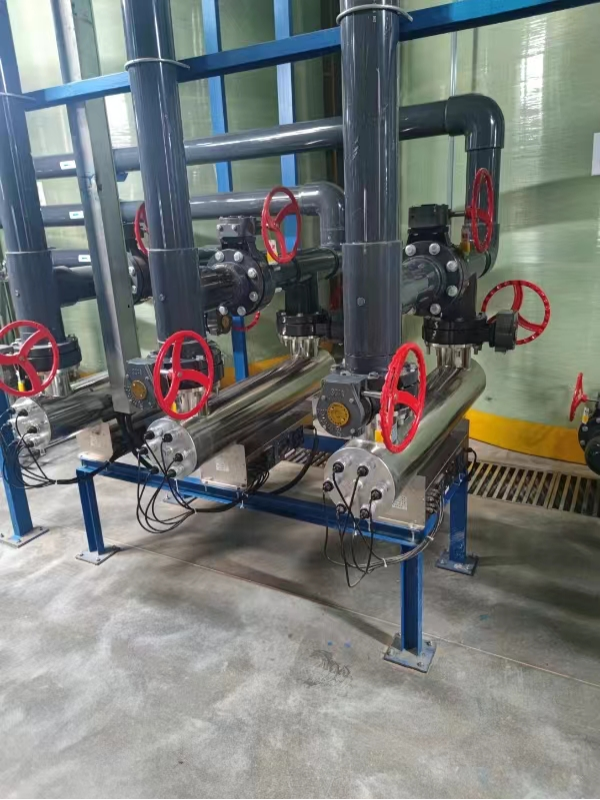

Customizability Industrial Wastewater Treatment System- UV Sterilizer
1 . Descriptions:
The UV sterilizer (ultraviolet sterilizer) is a type of equipment that uses ultraviolet radiation for disinfection and sterilization. Ultraviolet light disrupts the DNA or RNA of microorganisms, rendering them unable to reproduce or cause disease, achieving effective disinfection and sterilization. In an Industrial Wastewater Treatment System, UV sterilizers play a critical role in ensuring that harmful pathogens in wastewater are neutralized before further treatment or discharge.
The UV sterilizer uses ultraviolet lamps with a specific wavelength (typically 254 nanometers) to irradiate water, air, or surfaces. The ultraviolet light penetrates microbial cell walls, destroying their DNA or RNA structure, preventing microorganisms from replicating and surviving. This process is highly efficient in an Industrial Wastewater Treatment System, as it helps eliminate bacteria, viruses, molds, and other pathogens, ensuring that treated wastewater meets health and safety standards.
After receiving a sufficient dose of UV irradiation, microorganisms in the water, air, or on surfaces are effectively killed, making the UV sterilizer a vital component in any Industrial Wastewater Treatment System. By incorporating UV sterilization into an Industrial Wastewater Treatment System, industries can ensure safer and more environmentally compliant wastewater management practices.
2 . Product parameters:
Specification Of Tube(mm) | Flange Size | Flange Center Distance | Equipment Size (L*W*H) | Quantity and Specification Of Lamp Tubes | Total Power | Processing Capacity(T/H) | ||
Lower Cabinet | Side Housing | |||||||
900*89 | DN65 | 690 | 900×100×320 | 900×260×240 | 1*80W | 80W | 3-6T | |
900*108 | DN80 | 675 | 900×100×360 | 900×280×280 | 2*80W | 106W | 10-15T | |
900*133 | DN100 | 620 | 900×140×400 | 900×300×320 | 3*80W | 240W | 20-25T | |
900*159 | DN125 | 590 | 900×160×430 | 900×330×350 | 4*80W | 320W | 30-35T | |
900*219 | DN150 | 550 | 900×200×520 | 900×390×440 | 7*80W | 560W | 40-45T | |
900*273 | DN200 | 500 | 900×300×600 | 900×443×520 | 10*80W | 800W | 70-75T | |
1200*133 | DN100 | 920 | 1200×140×400 | 1200×300×320 | 4*120W | 480w | 45-50T | |
1200*159 | DN125 | 890 | 1200×160×430 | 1200×330×350 | 5*120W | 600W | 55-60T | |
1200*219 | DN150 | 850 | 1200×220×520 | 1200×390×440 | 8*12W | 960W | 95-98T | |
1200*273 | DN200 | 800 | 1200×300×600 | 1200×443×520 | 12*120W | 1440W | 140-145T | |
1600*219 | DN150 | 1250 | 1600×220×520 | 1600×390×440 | 8*150W | 1200W | 110-120T | |
1600*273 | DN200 | 1200 | 1600×300×600 | 1600×443×520 | 14*150W | 2100W | 200-210T | |
※parameter and detail are customizable to clients' demands. |
3 . Specificities:
1. Efficient sterilization: able to kill many kinds of microorganisms in a short time, including bacteria, viruses, fungi and protozoa.
2. No chemical pollution: pure physical disinfection process, no need to add chemicals, will not produce secondary pollution.
3. Easy operation: simple structure of the equipment, easy installation, low operation and maintenance costs.
4. Widely applicable: suitable for a variety of application scenarios such as water treatment, air purification and surface disinfection.
5. Safe and environmentally friendly: no harmful by-products, environmentally friendly and safe.
4 . Appliance:
1. Drinking water treatment: used for municipal tap water, household drinking water purification, removing pathogenic microorganisms in the water to ensure safe water quality.
2. Sewage treatment: in sewage treatment plants, used to treat the effluent, to ensure that the discharge water quality in line with environmental standards.
3. Air purification: Installed in air conditioning systems, air purifiers and other equipment to kill airborne bacteria, viruses and mold.
4. Food processing: Used for air and surface disinfection in food processing plants to extend the shelf life of food and ensure food hygiene and safety.
5. Pharmaceutical and medical:In pharmaceutical factories, hospitals and other places, used for the maintenance of aseptic environment, sterilization of medical devices and equipment.
6.Laboratory:Used for the sterilization of laboratory environment and experimental instruments to prevent cross contamination.
