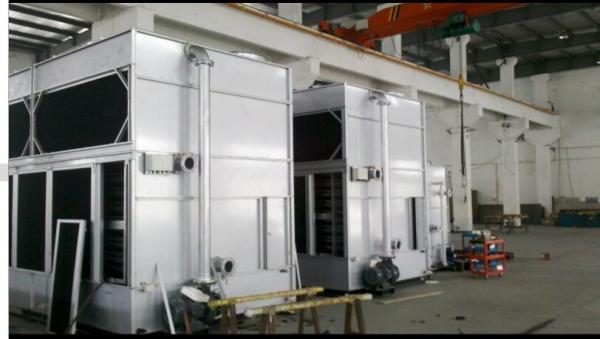

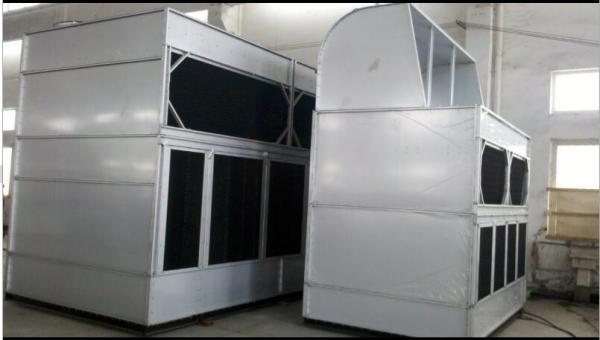

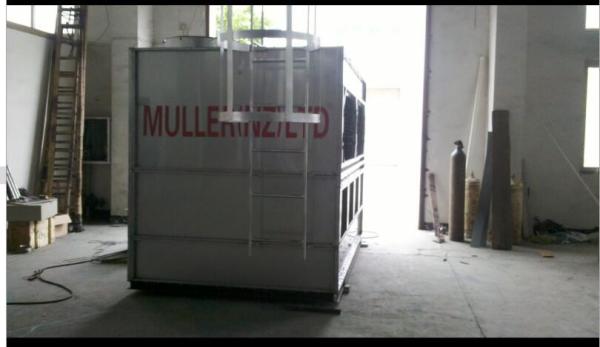

Industry Square Type Closed Loop Cooling Tower With CHINT Electric Control Cabinet
Industry Square Type Closed Loop Cooling Tower With CHINT Electric Control Cabinet
Industry Square Type Closed Loop Cooling Tower With CHINT Electric Control Cabinet
Industry Square Type Closed Loop Cooling Tower With CHINT Electric Control Cabinet
Industry Square Type Closed Loop Cooling Tower With CHINT Electric Control Cabinet
Industry Square Type Closed Loop Cooling Tower With CHINT Electric Control Cabinet
Specifications
Brand Name :
YanYe/Jiangfan/baofeng
Model Number :
KBL MODEL/YCT MODEL
Certification :
ISO9001/CTI
Place of Origin :
JIANGSU WUXI/SHANGHAI
MOQ :
I UNIT
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
320 UNIT/MONTH
Delivery Time :
60 DAYS
Packaging Details :
PALLET WITH FILM WRAPPING FOR CONTAINER OCEAN TRANSPORT
Shell :
Alum-zink galvanized steel plate (S.Korea)
Power Supply :
380V/3P/50HZ
Temperature controller :
Standard
Electric Control Cabinet :
CHINT electric
Cooling Coils :
304 SS steel plate
Water Basin :
304 SS steel plate
Motor Grade :
IP55 Insulation: F
Spray Pump :
Cast iron
Description

CLOSED COOLING TOWER,WATER COOLING TOWER Closed circuit cooling tower BAC Cooling

Technical Specifications

Description Closed Circuit Cooling Tower, Count flow
Model KBL-08
Operating Conditions
Nominal Flow Rate (m3/h) 50
Inlet/Outlet DN (mm) 80
Cooling Capacity (Kcal/h)

260000 Kcal/h >

249480 Kcal/h=45.36*5.5 ℃*1000
Unit Heat Rejection (KW) 302
Unit Fan Motor (KW) 1.5 kw*2
Unit Airflow (m3/h) 16800*2
Spray Pump’s Delivery Lift (m) 10
Spray Pump Power (KW) 1.1 kw
Spray Water Flow Rate (m3/h) 22.0 m3/h
Main Water Pump’S Delivery Lift (m) 32
Main Water Pump’S Power (KW) 7.5
Main Water pump’s Flow Rate (m3/h) 50
Operation Work pressure 0.10--0.35 Mpa
Unit Dimension L × W × H (mm) 2500*1250*2700
Shipping Weight (kg) 1560
Operation Weight (kg) 3100

Description

1. closed cooling towers are Using the counter flow cooling way; few cooling blind area, high thermal efficiency:
2. Efficiency of cooling tower is to adopt the professional and efficient water collector to control the running floating rate ,that is less or equal to 0.001%;
3.Closed cooling tower in high air duct design to make sure the equipment to meet the demand of cooling air flow rate during operation;
4. Reduce the occupied area compare to other types of cooling tower to meet the users' space demanding;
5. The tank of cooling tower adopts closed loop, eliminate clutters go into the tower body to produce spraying blocked;
6. The important part of counterflow cooling tower is the cooler that uses the antifreeze energy-saving design, to ensure the circulating water drain up and avoid freezing in the northern region with low temperature;
7. Design two-circuit cycle according to the demands of custom's devices, even if one circulation failure, anther cycle can be still normally operating;
8. The cooling tower design of units are elegant appearance, automatic digital display, easy to maintain.

Product Advantages

Compatible with numerous process fluids
(water, water/glycol, oil, other fluids)

◆ Capable and flexible in customized solutions
◆ Factory assembled for maximal installation convenience
◆ Modular design suits a wide range of heat rejection duties
◆ Compact design with minimal footprints
◆ Multiple corrosion resistant options
◆ Low sound operation options available
◆ More optimizing options available
◆ Performance and quality guaranteed
◆ Super long service life
