Automatic Temperature Control Evaporative Fluid Cooler , Small Consumption Of Soft Water
Automatic Temperature Control Evaporative Fluid Cooler , Small Consumption Of Soft Water
Automatic Temperature Control Evaporative Fluid Cooler , Small Consumption Of Soft Water
Automatic Temperature Control Evaporative Fluid Cooler , Small Consumption Of Soft Water
Automatic Temperature Control Evaporative Fluid Cooler , Small Consumption Of Soft Water
Automatic Temperature Control Evaporative Fluid Cooler , Small Consumption Of Soft Water
Specifications
Brand Name :
YANYE /JiangFan/Baofeng
Model Number :
YKH/YCT/CLA/CLAB
Certification :
ISO 9001:2008
Place of Origin :
Shanghai /Jiangsu
MOQ :
I UNIT
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
300 unit/month
Delivery Time :
68 days
Packaging Details :
PALLET WITH FILM WRAPPING FOR CONTAINER OCEAN TRANSPORT
Power supply :
380V/3P/50HZ
Spare Parts :
As per Customer actual situation

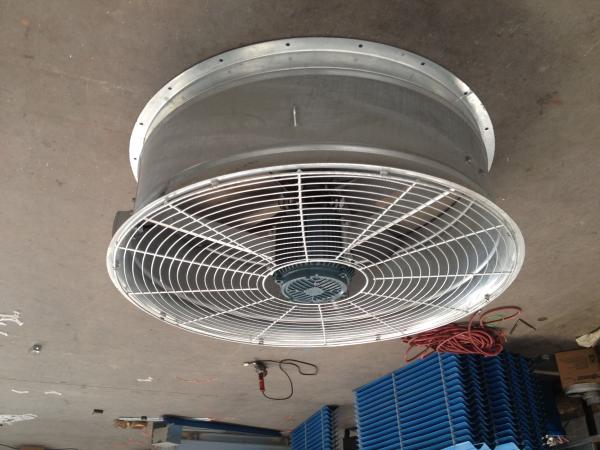

Fan Blade :
Carbon Fiber Fan Blade/ Aluminum alloy blade
Water Eliminator :
Anti-corrosion Sun sheltering drift elimination
Motor Grade :
IP55 Insulation: F
Electrical Brand name :
Schneider
Cooling coils :
316L SS steel plate
Shell :
Alum-zink galvanized steel plate (S.Korea)
Spray Pump :
Cast iron
Water Basin :
304 ss steel plate/Alum-zink galvanized steel plate (S.Korea)
Description

Closed fluid Cooler:

1) Automatic temperature control
Automatic start/stop spraying system to achieve effective control on the temperature of cycled cooling water, the temperature of the cooling water can be controlled below 40 ℃. With this function, the water & energy cost is reduced to the lowest point with intelligent control to the number of working fans and start & stop of spray pump.

2) No need of water pool and cooling tower
Low cost, small space occupancy, easy installation and move with the welder.

3) Automatic digital display of temperature control
Energy efficient and user friendly.

4) Cooling system structure
Galvanized iron beam.

5) High efficiency heat exchange

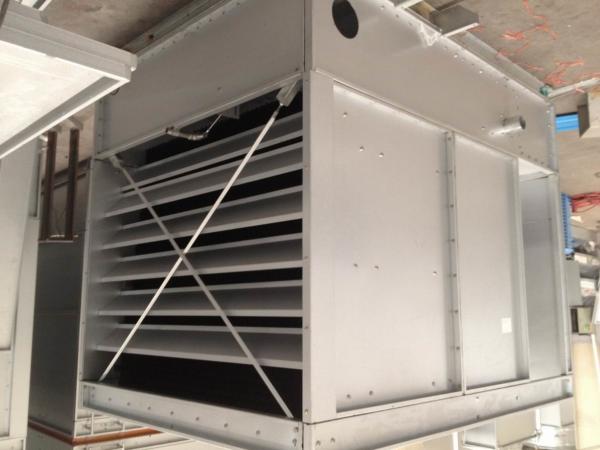

Four side air inlet louvers supply sufficient amount of wind blowing through cooling coils taking most of the heat away, which effect is strengthened via spray cooling water running through the cooling coils.

6) Small consumption of soft water
Filling the soft water once is enough for half-year operation without water loss.

Antifreeze is required in the winter season for areas subject to freeze temperature.

YCT-330F Specifications
Heat Reject :330 kw
Gas Filling Rate :49 kg/minute
Power of fan :1× 4.0 kw
Blowing rate: 1× 65000 m3/h
Spray Pump’s Delivery Lift :10 m
Spray Pump’s Power : 1.1 kw
Spray Water Flow Rate : 50 m3/h
Drift Loss : 0.001% m3/h
Operation Work Pressure: 0.10—0.35 Mpa
Inet/ Outnet: 1*DN 100mm/ 1*DN 100mm
DN100:Liquid outlet (Please specify adopted screw standards)
DN100:Air inlet (Please specify adopted screw standards)
Compensation water pipe: DN 25 mm
Discharge pipe: DN 50 mm
Overflow pipe: DN 80 mm
Shipping Weight: 2200 kg
Operating Weight:3400 kg
1820mm×1620mm×3278mm (L*W*H)
