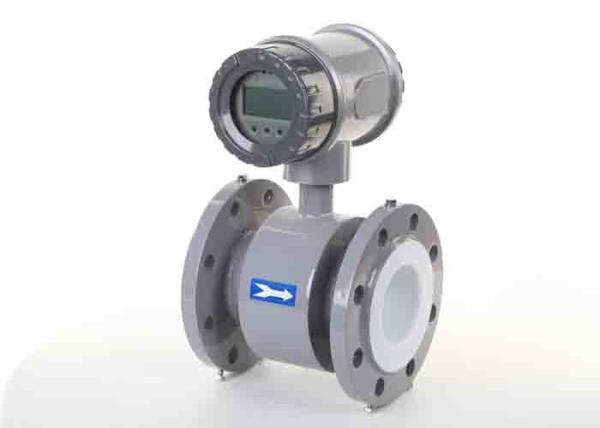

Municipal Billing Industrial Water Flow Meter With Communication Bacnet Flange Dn50
Municipal Billing Industrial Water Flow Meter With Communication Bacnet Flange Dn50
Municipal Billing Industrial Water Flow Meter With Communication Bacnet Flange Dn50
Municipal Billing Industrial Water Flow Meter With Communication Bacnet Flange Dn50
Specifications
Brand Name :
Iflow
Model Number :
YF-E50-2
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
50
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
2-4 weeks
Packaging Details :
carton / box
Name :
municipal water utility billing meter
Size :
DN50 - DN200
Pressure rating :
PN16, PN25, PN40 Mpa
Tube material :
SS316
Electrode :
316L / Hasteloy-C / Ti / Ta / Pt100
Accuracy :
0.25% , 0.5%
Communication :
BACNET/Modbus/RS485/4-20 mA
Totalizer :
Remote / Compact
Liner material :
PTFE
Description

Flow meter for municipal water utility billing, by magnetic flow meter Communication Bacnet Flange DN50

Industries Where Used
In order of usage, water/wastewater industry, chemical, food and beverage, oil and gas (although not for oil and gas fluids but in support of the processes), power, pulp and paper, metals and mining, and pharmaceutical.

Product descriptions:

The electromagnetic Flow Meter reduces lifecycle costs and unplanned shutdowns by accurately measuring water and wastewater flows in a variety of utility applications. It help users take advantage of improved installation, maintenance and process-management practices. With fully welded sensor construction and an isolated, replaceable termina, it is the most dependable meter available for utility and water applications.

Key features

  • Maximal uptime with dual-compartment transmitter housing that isolates electronics from moisture and contamination
  • Robust structure, fully welded construction designed to withstand sustained vibration
  • Confirm meter calibration without interrupting the process using continuous meter verification
  • Perform easy repairs in the field without the need to replace the entire meter with a replaceable terminal block
  • Advanced diagnostic capabilities and printed reports verify meter performance for compliance with regulatory agencies
  • Simplify configuration and accessibility with an easy-to-use Local Operator Interface

Accuracy

Pipe Dia (mm) Velocity (m/s) Accuracy
3-20 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout
25-600 0.1-0.3 + 0.25% FS
0.3-1 + 0.5% Readout
1-15 + 0.3% Readout
700-3000 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout

Technical data

Product name Electromagnetic flowmeter
Product type Local|compact display Remote display Signal converter
Model IYF-E IYF-F IRT
Pipe Diameter (mm) DN10-DN2000
Power supply 100-240 VAC / 18-36 VDC
Accuracy + 0.5% + 0.5% + 0.5%
Power consumption <6w <6w <6w
Enclosure rating IP65 IP68 IP65
Liquid temperature -25-120℃ -25-120℃ -25-120℃
Ambient temperature -25-50℃ -25-50℃ -25-50℃
Relative humidity 10-90% 10-90% 10-90%
Meter ratio 1:100 1:100 1:100
Flow direction Bi-direction flow Bi-direction flow Bi-direction flow
Communication RS485 / Bacnet RS485 / Bacnet RS485 / Bacnet
Signal Output 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency

Manufacture process

Municipal Billing Industrial Water Flow Meter With Communication Bacnet Flange Dn50

Packing

Municipal Billing Industrial Water Flow Meter With Communication Bacnet Flange Dn50
