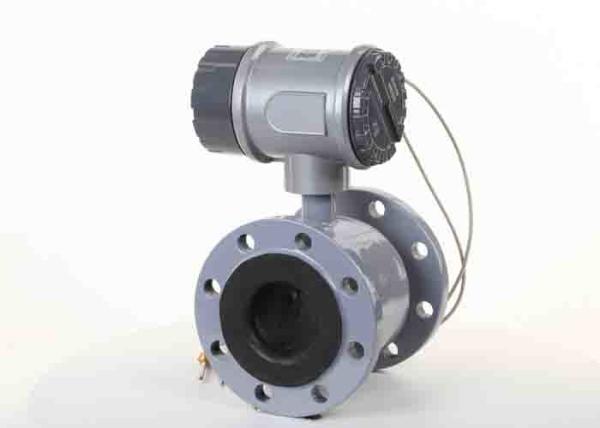

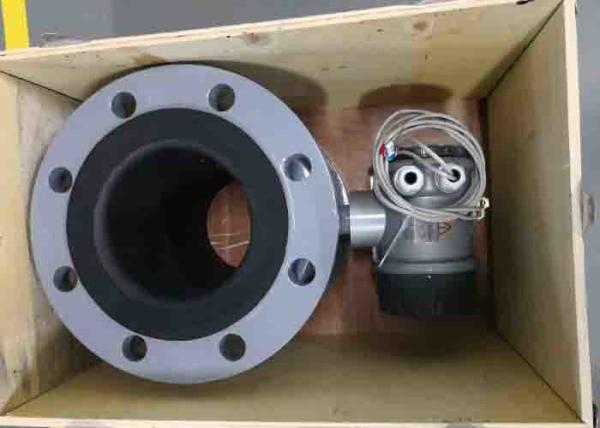

Sewage Multi Jet Water Meter Magnetic With Compact / Remote Totalizer
Sewage Multi Jet Water Meter Magnetic With Compact / Remote Totalizer
Sewage Multi Jet Water Meter Magnetic With Compact / Remote Totalizer
Sewage Multi Jet Water Meter Magnetic With Compact / Remote Totalizer
Specifications
Brand Name :
Iflow
Model Number :
YF-E150-1
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
2-4 weeks
Packaging Details :
carton / box
Description :
sewage flow meter
Power :
85-265V AC / 8-36V DC
Diameter :
2 inch - 48 inch
Accuracy :
1%, 1.5%
Electrode :
316L / Hasteeloy-C / Ti / Ta / Pt100
Liner :
Rubber, PTFE
Totalizer :
compact / remote
Flow transducer :
electromagnetic flowmeter
Description

sewage flow meter payable by magnetic flowmeter Dia: DN150 Liner: rubber

Product description:

The electromagnetic Flow Meter Sensors are designed for stable flow measurement in sewage, waste water and slurry applications. It reduces process variability by providing the most stable flow output available. The increased signal strength, coupled with advanced signal processing and superior filtering techniques provides the ideal solution to demanding flow-measurement applications, including those in the mining and pulp and paper industries.

Work principle

The Magnetic flowmeters are often used where the liquid is fed using gravity. Be sure that the orientation of the flowmeter is such that the flowmeter is completely filled with liquid. Failure to ensure that the flowmeter is completely filled with liquid can significantly affect the flow measurement. Be especially careful when operating magnetic flowmeters in vacuum service because some magnetic flowmeter liners can collapse and be sucked into the pipeline in vacuum service, catastrophically damaging the flowmeter. Note that vacuum conditions can occur in pipes that seemingly are not exposed to vacuum service such as pipes in which a gas can condense (often under abnormal conditions). Similarly, excessive temperature in magnetic flowmeters (even briefly under abnormal conditions) can result in permanent flowmeter damage.

Industries Where Used

In order of usage, water/wastewater industry, chemical, food and beverage, oil and gas (although not for oil and gas fluids but in support of the processes), power, pulp and paper, metals and mining, and pharmaceutical.

Accuracy

Pipe Dia (mm) Velocity (m/s) Accuracy
3-20 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout
25-600 0.1-0.3 + 0.25% FS
0.3-1 + 0.5% Readout
1-15 + 0.3% Readout
700-3000 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout

Technical data

Product name Electromagnetic flowmeter
Product type Local|compact display Remote display Signal converter
Model IYF-E IYF-F IRT
Pipe Diameter (mm) DN10-DN2000
Power supply 100-240 VAC / 18-36 VDC
Accuracy + 0.5% + 0.5% + 0.5%
Power consumption <6w <6w <6w
Enclosure rating IP65 IP68 IP65
Liquid temperature -25-120℃ -25-120℃ -25-120℃
Ambient temperature -25-50℃ -25-50℃ -25-50℃
Relative humidity 10-90% 10-90% 10-90%
Meter ratio 1:100 1:100 1:100
Flow direction Bi-direction flow Bi-direction flow Bi-direction flow
Communication RS485 / Bacnet RS485 / Bacnet RS485 / Bacnet
Signal Output 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency

Production line

Sewage Multi Jet Water Meter Magnetic With Compact / Remote Totalizer

Calibration equipment

Sewage Multi Jet Water Meter Magnetic With Compact / Remote Totalizer
