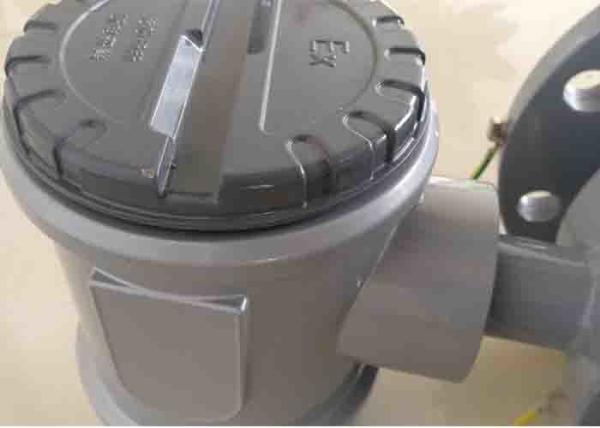

Ip68 Pn16 Electromagnetic Flow Meter 0.5% Accuracy Dn50 - 1200 Mm Diameter
Ip68 Pn16 Electromagnetic Flow Meter 0.5% Accuracy Dn50 - 1200 Mm Diameter
Ip68 Pn16 Electromagnetic Flow Meter 0.5% Accuracy Dn50 - 1200 Mm Diameter
Ip68 Pn16 Electromagnetic Flow Meter 0.5% Accuracy Dn50 - 1200 Mm Diameter
Specifications
Brand Name :
Iflow
Model Number :
EMF-80-4
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
2-4 weeks
Packaging Details :
carton / box
Description :
Electromagnetic flow meter
Pressure rating :
PN16, PN25, PN40 Mpa
Diameter :
DN50 - 1200 mm
Temperature :
±(0.3 + 0.05 * T)K; ΔT = T ± 0.1K
Electrode :
316L / Hasteloy-C / Ti / Ta / Pt100
Accuracy :
0.25% , 0.5%
Pipe connect :
Flange
Liner material :
Rubber, PTFE
Description

Industrial magnetic flowmeter, flow sensor: IP68, PN16, Accuracy: 0.5%

Diameter range:
The EMF series magnetic flow meter, is available in sizes from 1 to 24 inches (other sizes are available upon request). It has no moving parts to obstruct flow resulting in no pressure loss and the 0.5% accuracy is not affected by temperature, pressure, viscosity, density or flow profile. With no moving parts, practically no maintenance is required. The chloroprene rubber sensor liner is suitable for liquid temperatures from -13 to 176°F and is compatible with most water-based fluids and many chemicals.

Ip68 Pn16 Electromagnetic Flow Meter 0.5% Accuracy Dn50 - 1200 Mm Diameter

Standard features

Flow transmitter type Remote or compact
Pipe diameter DN15 mm - DN3000 mm
Power supply AC85-230V / DC 8-36V / Battery / PV
Accuracy 0.5%
Power consumption < 6W
Protection IP68 (flow sensor)
Media temperature

Hard rubber: -20 C - 70 C

PTFE: -20C - 120 C
Environment temperature -20 to 50 C
Explosion proof EXID
Flow direction forward and reverse
Communication Modbus RS485 / Bacnet / GPRS / NT-Iot / Lora
Signal output 4-20 mA, pulse, frequency


Technical data:
1. Diameter: DN15 - DN1200
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID
Ip68 Pn16 Electromagnetic Flow Meter 0.5% Accuracy Dn50 - 1200 Mm Diameter

Parameters

Product name Electromagnetic flowmeter
Product type Local|compact display Remote display Signal converter
Model IYF-E IYF-F IRT
Pipe Diameter (mm) DN10-DN2000
Power supply 100-240 VAC / 18-36 VDC
Accuracy + 0.5% + 0.5% + 0.5%
Power consumption <6w <6w <6w
Enclosure rating IP65 IP68 IP65
Liquid temperature -25-120℃ -25-120℃ -25-120℃
Ambient temperature -25-50℃ -25-50℃ -25-50℃
Relative humidity 10-90% 10-90% 10-90%
Meter ratio 1:100 1:100 1:100
Flow direction Bi-direction flow Bi-direction flow Bi-direction flow
Communication RS485 / Bacnet RS485 / Bacnet RS485 / Bacnet
Signal Output 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency


Applications:
Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities.

Ip68 Pn16 Electromagnetic Flow Meter 0.5% Accuracy Dn50 - 1200 Mm Diameter
