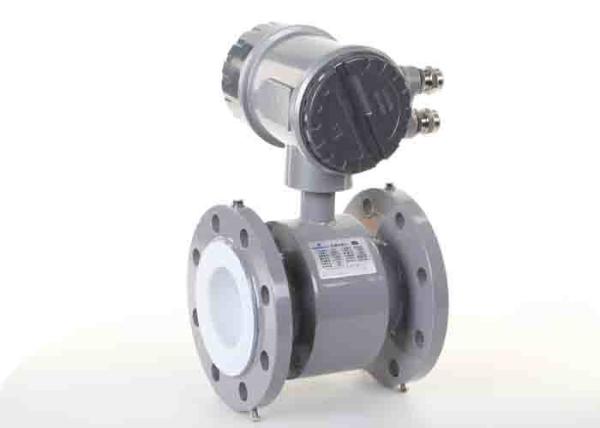

Irrigation Electromagnetic Water Flow Meter For Agriculture / Waste Water
Irrigation Electromagnetic Water Flow Meter For Agriculture / Waste Water
Specifications
Brand Name :
Iflow
Model Number :
EMF-80-3
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
2-4 weeks
Packaging Details :
carton / box
Product name :
Electromagnetic flow meter
Totalizer :
remote transmitter
Pressure rating :
PN16, PN25, PN40 Mpa
Temperature :
±(0.3 + 0.05 * T)K; ΔT = T ± 0.1K
Electrode :
316L / Hasteloy-C / Ti / Ta / Pt100
Accuracy :
0.25% , 0.5%
Communication :
BACNET/Modbus/RS485/4-20 mA
Pipe connect :
Flange
Liner material :
Rubber, PTFE
Description

Irrigation water flow meter by magnetic flow meter, in agriculture, waste water, grey water flow monitoring

Communication and analoge output:
Our electromagnetic flow meter includes both 4-20mA and pulse output. Communication option: Modbus RS485, GPRS, Bacnet, NB-iot. The transmitter can be mounted either integrally to the flow sensor or remotely. The transmitter features a three-line LCD that displays the flow total, flow velocity, flow rate percent of range, and alarm settings. A four-button keypad is used to change settings. There are 27 flow unit options to choose from programmed into the transmitter. .

Irrigation Electromagnetic Water Flow Meter For Agriculture / Waste Water

Applications:
Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities.

Irrigation Electromagnetic Water Flow Meter For Agriculture / Waste Water

Standard features

Flow transmitter type Remote or compact
Pipe diameter DN15 mm - DN3000 mm
Power supply AC85-230V / DC 8-36V / Battery / PV
Accuracy 0.5%
Power consumption < 6W
Protection IP68 (flow sensor)
Media temperature

Hard rubber: -20 C - 70 C

PTFE: -20C - 120 C
Environment temperature -20 to 50 C
Explosion proof EXID
Flow direction forward and reverse
Communication Modbus RS485 / Bacnet / GPRS / NT-Iot / Lora
Signal output 4-20 mA, pulse, frequency


Technical data:
1. Diameter: DN15 - DN1200
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID
Irrigation Electromagnetic Water Flow Meter For Agriculture / Waste Water

Parameters

Product name Electromagnetic flowmeter
Product type Local|compact display Remote display Signal converter
Model IYF-E IYF-F IRT
Pipe Diameter (mm) DN10-DN2000
Power supply 100-240 VAC / 18-36 VDC
Accuracy + 0.5% + 0.5% + 0.5%
Power consumption <6w <6w <6w
Enclosure rating IP65 IP68 IP65
Liquid temperature -25-120℃ -25-120℃ -25-120℃
Ambient temperature -25-50℃ -25-50℃ -25-50℃
Relative humidity 10-90% 10-90% 10-90%
Meter ratio 1:100 1:100 1:100
Flow direction Bi-direction flow Bi-direction flow Bi-direction flow
Communication RS485 / Bacnet RS485 / Bacnet RS485 / Bacnet
Signal Output 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency
