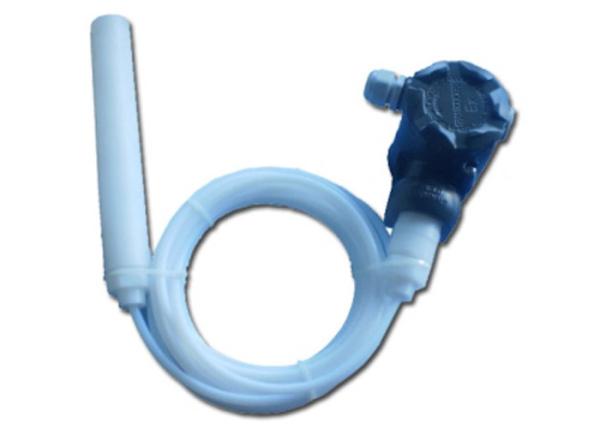

Liquid Gas Pressure Level Transmitter , Anti Corrosion Magnetic Level Transmitter
Liquid Gas Pressure Level Transmitter , Anti Corrosion Magnetic Level Transmitter
Liquid Gas Pressure Level Transmitter , Anti Corrosion Magnetic Level Transmitter
Liquid Gas Pressure Level Transmitter , Anti Corrosion Magnetic Level Transmitter
Specifications
Brand Name :
Iflow
Model Number :
L3
Certification :
ISO9001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
5000 pieces per month
Delivery Time :
2-4 weeks
Packaging Details :
box
Name :
Anticorrosion level transmitter
Media :
acid, alkali, and other corrosion liquid
range :
300-5000mm at pole type, 2-20m at cable type
Precision :
0.25%, 0.5%
Power supply :
24V DC
Output :
4-20mA
Option :
2088 terminal box, local display, remote display
Protection :
IP65
Description

Liquid and gas level pressure transmitter, anti corrosion type Level transmitter for acid or alkali liquid 2088

Brief introduction

The anticorrosion type level transmitter, has silicon pressure resistance and oil filled chips, suitable for acid, alkali and other type of corrosion liquid level transmitter.


Key features

  • Wide measurement range, high accuracy, low energy consumption
  • Non-contacting measurement method, no driven parts;
  • Measurement of liquid and solid;
  • Scientific echo tracing algorithm;
  • Interior temperature compensation;

Functions

  • Liquid and material level measurement
  • distance measurement
  • storage content indication

Technical data
1.specification of connection mouth: G2”
2.specification of inlet mouth: M20*P1.5
3.measurement medium: liquid, powder
4.working pressure(V): 20～36
5.voltage drop(V): <3.5
6.reverse power protection: yes
7.overload protection: yes
8.temperature compensation: yes
9.automatic efficiency calibration: yes
10.watchdog: yes
11.current drain(mA): 50
12.accuracy/deviation(%): ±0.1%
13.minimum resolution ratio(mm): 1
14.output response time(s): 1.5
15.output form: three-wire, 4~20mA output
16.maximum output load(mA): 400
17.analog output load(ohm): 4～20mA, Max(Ub-10V)*50
18.switch output characteristics: ①normally open and close②PNP or NPN output③SP and RP point
19.environment temperature(℃): -40~80
20.storage temperature(℃): -40~80
21.insulation resistance(M ): >100(1500VDC)
22.shell material: aluminium alloy, ABS,PA+GF
22.transducer frequency(KHz): 50
23.launching angle: <15℃
24.range(m):0.3~10
25.dead zone(cm): ≤30

Model selection of level transmitter and controller

Code Lever transmitter / controller
L1-L6 L1: submersible type;L2:cylinder, L3:anticorrosion,L4:shock proof,L5: capacitor type, L6: magnetic
LRS485 RS485 communication
UL ultrasonic type
LR radar type
code structure
Y compact
F remote type (split)
EX explosion proof
Measure range
0-10 meters, or 0-100 meters
code accuracy
1 0.5% FS
2 0.25% FS
Code Signal output
A1 0 - 10 mA
A2 4 - 20 mA
V4 0 - 10 V
Code Special function
1 standard
2 anti corrosion
F1 submersible
F2 flange type
FX thread M27 * 2
L1 31 /2 LCD
L2 31 /2 LED
P flat diaphragm
C1 terminal box
C2 directly wire
