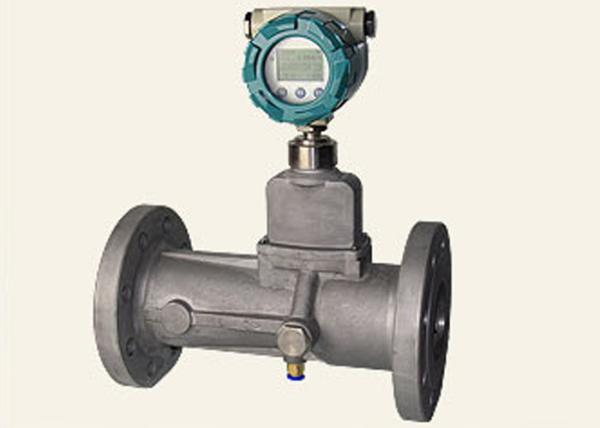

Alloy 1.6Mpa High Pressure Air Flow Meter Anti Interference For Natural Gas LPG
Alloy 1.6Mpa High Pressure Air Flow Meter Anti Interference For Natural Gas LPG
Alloy 1.6Mpa High Pressure Air Flow Meter Anti Interference For Natural Gas LPG
Alloy 1.6Mpa High Pressure Air Flow Meter Anti Interference For Natural Gas LPG
Specifications
Brand Name :
Iflow
Model Number :
LUX200
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
5000 pieces per month
Delivery Time :
1-2 weeks
Packaging Details :
carton
Name :
screw into the vortex flow meter
Diameter :
DN20 mm - 200mm
Precision :
depending on media and pipe size: 1%, 1.5%
Housing material :
CS, stainless, 12cr1MoV
Flow rate range :
0.2 ～11 m/s
Temperature :
25℃～800℃
Pressure rating :
0.25 ～60 Mpa
Output :
4 ～ 20 mA, 0-1 Khz, RS485
Wet part material :
Mo2Ti, Hc, Hb, Ta, PT, SS304
Description

high pressure air flow meter, Screw into the vortex flowmeter for natural gas and LPG,Pipe size DN20-200mm

General introduction

LUX intelligent precession vortex flowmeter is a new generation of flow measurement instruments, suitable for measuring a variety of cryogenic liquids and gases. Generate flow through the spiral vortex body model, the detection of amplified output, you can get a good measurement accuracy and flow range

Product features

  • Built-in pressure, temperature, flow sensor, high safety performance, compact structure, beautiful appearance.
  • Local display of temperature, pressure, instantaneous flow and cumulative flow.
  • Using a new signal processing amplifier and unique filtering technology, effectively eliminating the interference caused by pressure fluctuations and pipeline vibration signals, greatly improving the anti-interference ability of the flowmeter, so that the small flow with excellent stability.
  • Unique time display and real-time data storage capabilities, no matter what the circumstances, can guarantee that the internal data will not be lost, can be permanently stored.
  • Low power consumption of the whole machine, with long-term power supply within the battery run, is the ideal place to display instruments without external power supply.
  • Anti-theft function is reliable, with password protection to prevent parameter changes.
  • The header can be rotated 180 degrees, easy to install.

Technical data

Diameter Flow range Pressure Accuracy Repeatability
20 0.5-25

1.6Mpa (Alloy)

16Mpa (stainless)

1.0%

1.5%

 1/3
25 1-30
32 2-60
50 3-150
80 10-400
100 30-800
150 90-1800
200 180-3600

Inlet

Alloy 1.6Mpa High Pressure Air Flow Meter Anti Interference For Natural Gas LPG

Nameplate

Alloy 1.6Mpa High Pressure Air Flow Meter Anti Interference For Natural Gas LPG

Outlet

Alloy 1.6Mpa High Pressure Air Flow Meter Anti Interference For Natural Gas LPG
