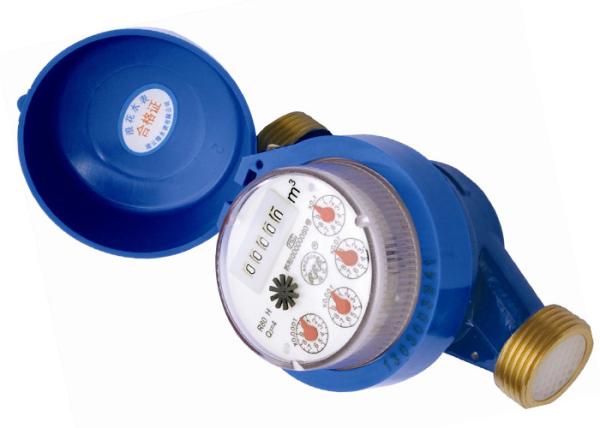

Class B Volumetric Single Jet Water Meter With Turbine DN 15mm ISO 4064
Class B Volumetric Single Jet Water Meter With Turbine DN 15mm ISO 4064
Class B Volumetric Single Jet Water Meter With Turbine DN 15mm ISO 4064
Class B Volumetric Single Jet Water Meter With Turbine DN 15mm ISO 4064
Specifications
Brand Name :
Iflow
Model Number :
LXDG-15
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
carton + pallet
Type :
Single jet water meter
Model :
LXDG20
Size :
DN20 - 3/4"
Connect :
thread
Material :
brass
Class :
Class B
Register :
dry dial
Temperature :
50C
Description

DN15mm Single jet water meter for cold water flow metering, dry dial, brass body, thread

It's for cold water volumetric flow measurement. This single jet water flow meter is IMPELLER (turbine). It's with dry type register for residential application with sizes from DN15 to DN25.

Functions:
Volumetric flow metering measurement for cold potable water flow through closed pipe line.
Features:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30℃(T30), can be used safely in water temperature up to 50℃(T50);
Rotary indicator register with 7 Rollers and 2 Pointers for easy reading;

The Impeller is the only moving parts in contact with water permitting the most reliable;
The conception of the Magnetic Protection to against the external influences;
No need for external adjustment due to its design and high technology in manufacturing;
High Accuracy for Horizontal installation;
With Pre-equipped for communication device as Option.

Maximum Permissible Error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%
(2) in the upper zone from qt inclusive up to and including qs is ±2%
(3) Hot water meter ±3%

Pressure curve
Class B Volumetric Single Jet Water Meter With Turbine DN 15mm ISO 4064
Flow curve
Class B Volumetric Single Jet Water Meter With Turbine DN 15mm ISO 4064

Data sheet

Model

Dia
(mm)

Class
ISO4064

Overload
flow (Qs)

Permanent
flow (Qp)

Transitional
flow (Qt)

Min flow
Qmin

 Min reading Max reading
(m3/h) (L/h) ( m3 )
LXDG-15 15 B 3.1 2.5 50 31 0.00005 99,999
LXDG-20 20 B 5 4 80 50 0.00005 99,999
LXDG-25 25 B 7.9 6.3 126 79 0.00005 99,999









Dimension

Model Pipe Dia Length(L) Width(B) Height (H) Thread
LXDG-15 15 110/203 82 88 G3/4B
LXDG-20 20 130/233 82 89.5 G1B
LXDG-25 25 130/250 82 93.5 G1-1/4B







Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line
Class B Volumetric Single Jet Water Meter With Turbine DN 15mm ISO 4064
