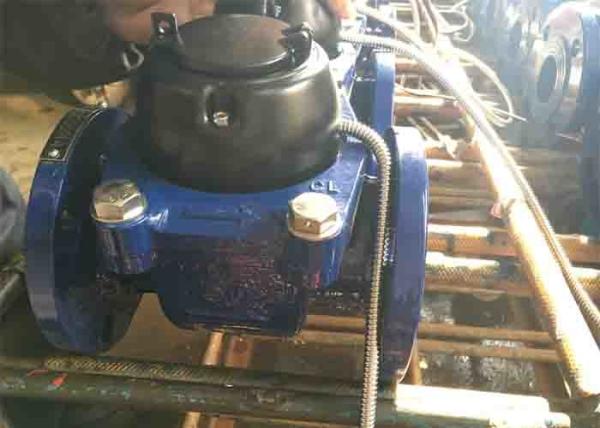

DN300 PN16 MPA Irrigation Hydrometer 12 Inch Positive Displacement Flange Port
DN300 PN16 MPA Irrigation Hydrometer 12 Inch Positive Displacement Flange Port
DN300 PN16 MPA Irrigation Hydrometer 12 Inch Positive Displacement Flange Port
DN300 PN16 MPA Irrigation Hydrometer 12 Inch Positive Displacement Flange Port
Specifications
Brand Name :
Iflow
Model Number :
LXXG300FX
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Product type :
irrigation hydrometer
Port size :
12 inch
Connect :
Flange
Pressure rating :
PN16
Material :
ductile iron
Class :
Class B
Register :
dry dial
Remote reading :
pulse emitter
Description

Irrigation hydrometer with pulse output for remote reading, positive displacement DN300, PN16 MPA

The irrigation hydrometer, is made of ductile. Vane wheel type water meter has a removable mechanism, it's an axial helix by magnetically driven. The meter has wide measure range, less pressure loss, high accuracy at low flow velocity, minimal initial flow. The optional tele reading with pulse output. It's idea for bulk volume measurement of cold water or hot water.

Feature:

  • The vertical helix design, easily maintenance.

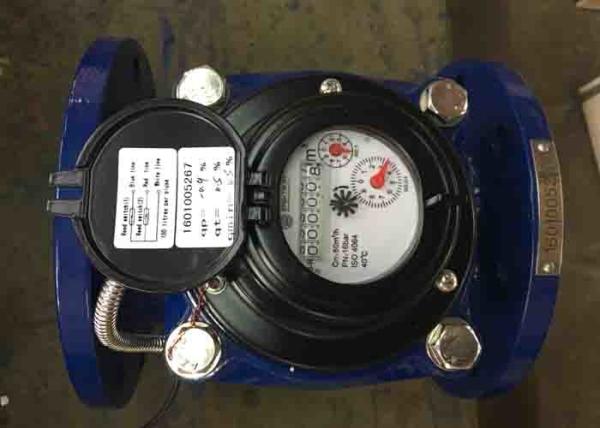

  • Magnetic driven, dry dial, clear reading
  • Full flow measuremeng
  • Wide measure range, Q3 is up to 250 m3/h
  • Initial flow Q3 is down 0.03m3/h
  • Technical data conform to international standard ISO 4064.

Note:

  • Measuring accuracy conform to ISO 4064 class B standard..
  • Available with different length on request. Available in hot water meter on request.

Working condition:

  • Water temperature:0.1℃～40℃( 0.1℃～90℃ for hot water meter)
  • Water pressure: ≤1.0Mpa

Maximum Permissible Error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%

(2) in the upper zone from qt inclusive up to and including qs is ±2%

(3) Hot water meter ±3%

Data sheet

Model

Dia

(mm)

Class

ISO4064

Overload

flow (Qs)

Permanent

flow (Qp)

Transitional

flow (Qt)

Min flow

Qmin

 Min reading Max reading
m3/h M3
IXLC-50 50 A 30 15 4.5 1.2 0.0002 999,999
B 3.0 0.45
IXLC-65 65 A 50 25 7.5 2.0 0.0002 999,999
B 5.0 0.75
IXLC-80 80 A 80 40 12 3.2 0.0002 999,999
B 8.0 1.2
IXLC-100 100 A 120 60 18 4.8 0.0002 999,999
B 12 1.8
IXLC-125 125 A 200 100 30 8 0.0002 999,999
B 20 3
IXLC-150 150 A 300 150 45 12 0.0002 999,999
B 30 4.5
IXLC-200 200 A 500 250 75 20 0.0002 999,999
B 50 7.5
IXLC-250 250 A 800 400 120 32 0.0002 999,999
IXLC-300 300 A 1200 600 180 48 0.0002 999,999

Dimension (LXLC)

Model Dia. L H Flange (mm)
(mm) D1 (OD) D2 (hole) Bolt(n-M)
IXLC-50 50 200 253 165 125 4-M16
IXLC-65 65 200 268 185 145 4-M16
IXLC-80 80 225 284 200 160 8-M16
IXLC-100 100 250 295 220 180 8-M16
IXLC-125 125 250 310 250 210 8-M16
IXLC-150 150 300 339 285 240 8-M20
IXLC-200 200 350 382 340 295

8-M20(1.0Mpa)

12-M20(1.6Mpa)
IXLC-250 250 400 433 395 350 12-M20(1.0Mpa)
450 438 405 355 12-M24(1.6Mpa)
IXLC-300 300 450 483 445 400 12-M20(1.0Mpa)
500 488 460 410 12-M24(1.6Mpa)

Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Pallet pack
