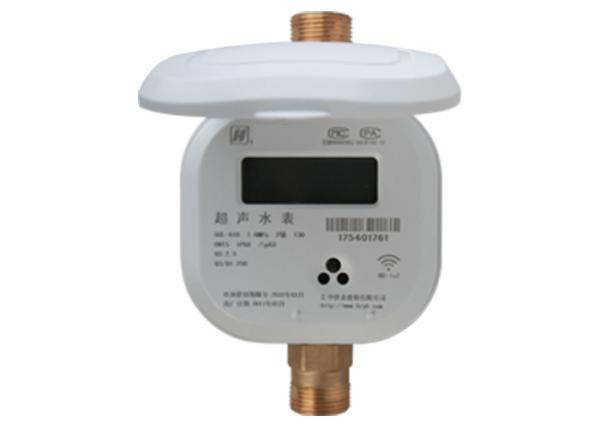

Port Thread Nb Iot Modbus Water Meter , AMR / AMI Brass Housing Hot Water Meter
Port Thread Nb Iot Modbus Water Meter , AMR / AMI Brass Housing Hot Water Meter
Port Thread Nb Iot Modbus Water Meter , AMR / AMI Brass Housing Hot Water Meter
Port Thread Nb Iot Modbus Water Meter , AMR / AMI Brass Housing Hot Water Meter
Specifications
Brand Name :
Iflow
Model Number :
C313-1
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Type :
Convection ultrasonic water meter
Pipe diameter :
1/2" - 1"
Connect port :
thread
Pressure rating :
PN16 , PN10
Work :
convectional
Accuracy :
1%
Electromagnetic compatibility :
Class E2
Communication :
RS485 Modbus
Description

Bi-Directional Ultrasonic Water Meter, convectional type, brass tube, DN15-40mm, Communication: Nbiot

Description:

Convectional type, ultrasonic water meter are with built in batch controller and time accumulator. It has extremely low power consumption, stable and reliable performance in long term. All the wet part protection is IP68. The UFM is widely used in municipal water supply, water resource management, industrial water supply, agriculture, irrigation and gardening.

Product features

● Port size: DN15, DN20 and DN25;

● Dynamic range option: R 160 , 250, 400;

● Starting flow rate as low as 0.002 m3/h;

● Provides sustained accuracy within ±2%;

● Mounting in any installation position in difficult circumstances;

● Integrated mechanical design with protection class of IP68;

● No moving parts eliminate mechanical wear and pressure loss;

● Lithium battery with lifetime over 10 years (measuring cycle: 1s);

● Optional with wired lead or AMR/AMI devices;

● Communication interface: Optical, M-BUS/RS-485, RF.

Note:

  • Measuring accuracy conform to ISO 4064 class B standard..
  • Available with different length on request. Available in hot water meter on request.

Working condition:

  • Water temperature:0.1℃～40℃( 0.1℃～90℃ for hot water meter)
  • Water pressure: ≤1.0Mpa

Maximum Permissible Error:

(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%

(2) in the upper zone from qt inclusive up to and including qs is ±2%

(3) Hot water meter ±3%

Technical specifications

Nominal diameter DN15, DN20, DN25
Max work pressure 1.6 Mpa
Temperature class T50 / T90
Accuracy ISO 4064
Housing material brass
Battery life over 10 years
Protection IP68
Pressure loss ΔP25
Climatic and mechanical environment Class C
Communication M-bus / RS485
Display

9 digit LCD Display + prompts
Cumulative flow (m3, L, GAL),

Instantaneous flow (m3/h, L/min, GP), Flow direction,

Low battery alarm, Output mode, Leak detection, etc.
Minimum reading 0.0001m3
Maximum reading 999999999m3
Flow profile sensitivity U3/D0
Memory week / year / 6 year

Dimensions

Diameter mm 15 20 25
in 1/2 3/4 1
L - Length (mm) 160 190 225
B - Width (mm) 95 95 95
H - Height (mm) 91 91 91
h - height (mm) 20 20 20

Competitive Advantage:

  • Compliance to international standards: ISO 4064-2005 , GBT 778.1-2007
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line

Port Thread Nb Iot Modbus Water Meter , AMR / AMI Brass Housing Hot Water Meter

Calibration equipment

Port Thread Nb Iot Modbus Water Meter , AMR / AMI Brass Housing Hot Water Meter
