Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary
Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary
Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary
Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary
Specifications
Brand Name :
Iflow
Model Number :
LXH15-1
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
2200000 unit per year
Delivery Time :
4-6 weeks
Packaging Details :
carton + pallet
Type :
Rotary piston water meter
Connect :
thread
Pipe size :
DN15 (1/2")
Class :
Class C
R value :
80 / 100 / 125 / 160
House material :
brass / plastic
Upstream sensitivity :
U0
Downstream sensitivity :
D0
Description

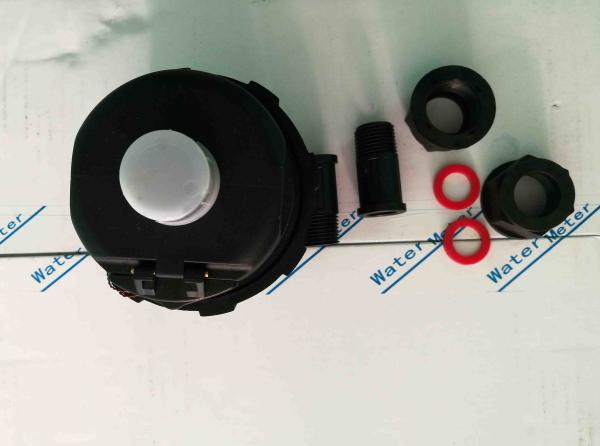

Rotary piston type, Multi Jet Water Meter, plastic meter housing for sanitary water meter DN15

ProductDescription

This type of water meter, also called volumetric type water meter, which can be used for a remote reading transmission system as equipped with a built-in sensor..

Applications range:
These water meter are for record the total water volumetric flow meter in cubic, liter which pass through the closed pipe line, like water utilities, municipal water supply, etc.

Key Features

  • Volumetric rotary piston principle of measurement;
  • LXHY-15～20 is no location limitation for installation.
  • Accuracy is not to be affected wherever installed at a horizontal, vertical or inclined pipeline;
  • Register is sealed with a special liquid to keep a clear reading in long term service;
  • Mechanism use of high-quality material to ensure a stable characteristic;
  • Accurate measurement with conformity to ISO 4064 class C.

Note:

Technical data conform to International Standard ISO 4064.

Application:

Measuring the volume of cold portable water passing through the pipeline.

Data sheet

Model Size Class Q4 Q3 Q2 Q1 Min read Max read
m³/h m³/h m³/h
LXHY-15 15mm C 3 1.5 22.5 15 0.0001 9999
LXHY-20 20mm C 5 2.5 37.5 25 0.0001 9999
LXHY-25 25mm C 7.875 6.3 63 39.4 0.0001 9999


Flow curve

Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary
Pressure curve
Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary
Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line
Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary

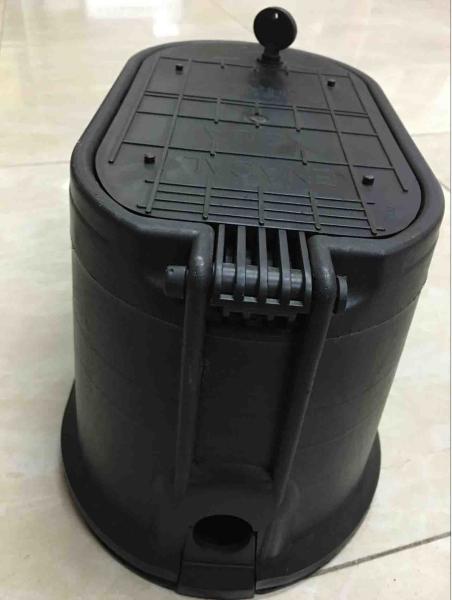

Meter box
Brass DN15 Rotary Piston Water Meter Multi Jet Plastic Housing Sanitary
