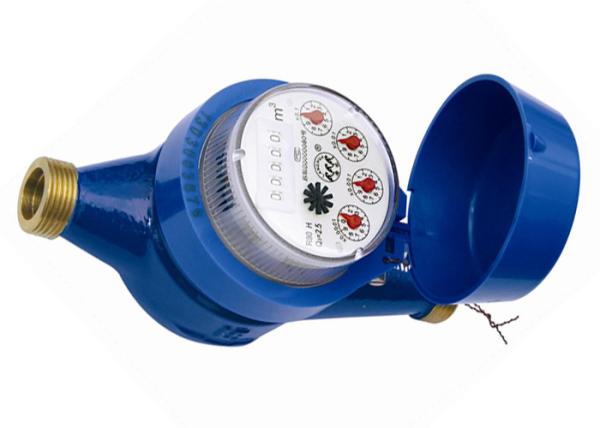

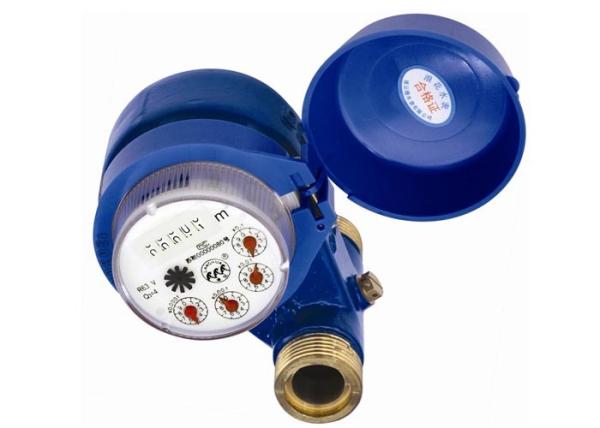

Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port
Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port
Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port
Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port
Specifications
Brand Name :
Iflow
Model Number :
LXSG20
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
2200000 unit per year
Delivery Time :
4-6 weeks
Packaging Details :
carton + pallet
Type :
Multi jet water meter
Size :
DN20 -3/4 inch
Connect :
thread GB, NPT
Class :
Class B
R value :
80 / 100 / 125 / 160
House material :
grey iron / plastic / brass
Upstream sensitivity :
U0
Downstream sensitivity :
D0
Description

Multi Jet Water Meter, dry dial, for residential water flow metering, utility billing

Description

The meter size option: DN15, 20, 25, 32, 40, 50 thread connect. The dry dial water meters use the multi-jet principle, also single jet principle available for smaller port size. This vane wheel water meter is known for its wide range, simple operation, and accuracy in cold water or hot water totalization and flow rate metering. The impeller is centered in a ring of jets, with inlet jets on one level and outlet jets on another. A gear train drives the register totalizer dials.

Applications:
To record the total water volumetric flow meter in cubic, liter which pass through the closed pipe line, like water utilities, municipal water supply, etc.

Product Features

  • Multi-jet, dry-dial, easy for maintenance;
  • Magnetic drive reliable characteristic, long working life;
  • Vacuum sealed register ensures the dial keep free from fog and frost, keep the reading clear in a long term service;
  • Technical data conform to international standard ISO4064 Class B

Data sheet

Description Unit Hydraulic data and dimensions
Nominal size mm(inch) DN15 (1/2") DN20(3/4")
Overload flow rate (Qs) m3/h 2 3
Permeanent flow rate (Qp) m3/h 1 1.5
Transitional flow rate (Qt) l/h 80 120
Minimum flow rate (Qmin) l/h 20 30
Min reading l 0.05 0.05
Max reading l 99999.9999 99999.9999
Max work pressure MPa 1.6 1.6
Pressure difference at Qs Mpa <0.1 <0.1
L mm 165 190
I mm 245 290
H mm 135 135
h mm 36.5 36.5
B mm 94 94
D inch G3/4B G1B
d inch R1/2 R3/4
weight with connections kg 1.49 1.75
without connections 1.29 1.45


Flow curve
Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port
Pressure curve
Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port
Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line
Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port

Pallet pack
Residential Class B Multi Jet Water Meter ISO 4064 Grey Iron Housing For Smaller Port
