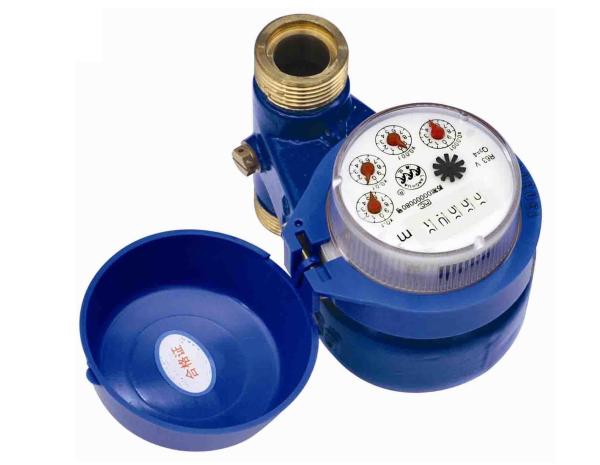

Grey Iron Housing Vertical Water Meter DN15 - 25 With Magnetic Drive Impeller
Grey Iron Housing Vertical Water Meter DN15 - 25 With Magnetic Drive Impeller
Grey Iron Housing Vertical Water Meter DN15 - 25 With Magnetic Drive Impeller
Grey Iron Housing Vertical Water Meter DN15 - 25 With Magnetic Drive Impeller
Specifications
Brand Name :
Iflow
Model Number :
LXSGV20
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
2200000 unit per year
Delivery Time :
4-6 weeks
Packaging Details :
carton + pallet
Type :
Multi jet water meter vertical
Mounting :
Vertical line
Connect :
thread port, with coupler
Class :
Class B
R value :
80 / 100 / 125 / 160
House material :
grey iron / plastic / brass
Upstream sensitivity :
U0
Downstream sensitivity :
D0
Description

multi jet water meter, vertical mounting, magnetic driven, impeller for water utility billing DN15-25

ProductDescription

These vertical mounting type, dial water meters use the multi-jet principle, also single jet principle available for smaller port size. This vane wheel water meter is known for its wide range, simple operation, and accuracy in cold water or hot water totalization and flow rate metering. The impeller is centered in a ring of jets, with inlet jets on one level and outlet jets on another. A gear train drives the register totalizer dials.

Applications range:
These residential water meters are for record the total water volumetric flow meter in cubic, liter which pass through the closed pipe line, like water utilities, municipal water supply, etc.

Key Features

  • Multi-jet, dry-dial, easy for maintenance;
  • Magnetic drive reliable characteristic, long working life;
  • Vacuum sealed register ensures the dial keep free from fog and frost, keep the reading clear in a long term service;
  • Technical data conform to international standard ISO4064 Class B

Data sheet

Model size inch

Q4

m³/h

Q3

m³/h

Q2

L/h

Q1

L/h

Min

L

Max

m³
LXSGD15 15mm 1/2 3.125 2.5 50 31.3 0.05 9999
LXSGD20 20mm 3/4 5 4 80 50 0.05 9999
LXSGD25 25mm 1 7.875 6.3 126 78.8 0.05 9999


Drawing
Grey Iron Housing Vertical Water Meter DN15 - 25 With Magnetic Drive Impeller
Dimensions

Model L1 L H B D d
mm inch

LXSGD15

 96 191 107 142 G3/4B R1/2
LXSGD20 100 205 109.5 157 G1B R3/4
LXSGD25 110 230 120 174 G1-1/4B R1

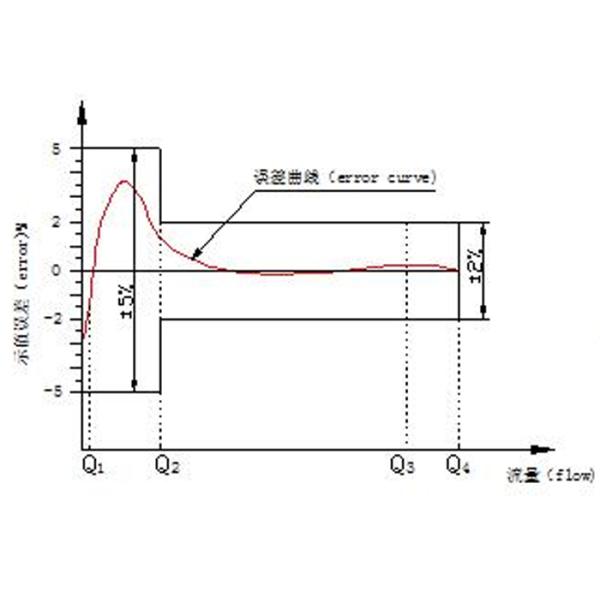

Flow curve

Grey Iron Housing Vertical Water Meter DN15 - 25 With Magnetic Drive Impeller

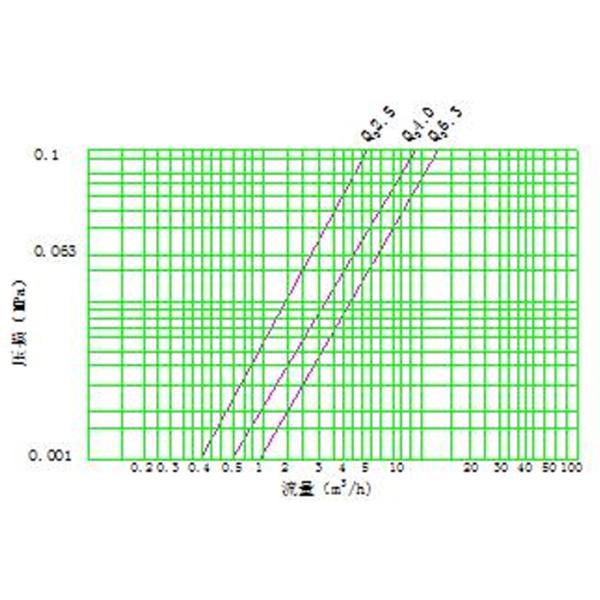

Pressure loss

Grey Iron Housing Vertical Water Meter DN15 - 25 With Magnetic Drive Impeller

Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

Production line

Measurement mechanism
