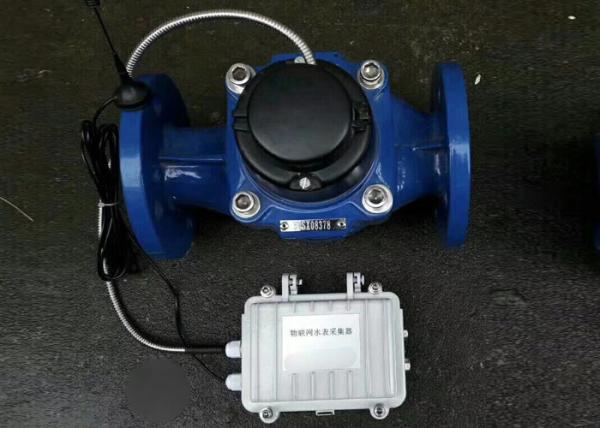

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
Specifications
Brand Name :
Iflow
Model Number :
LXXG150FX
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Type :
Irrigation hydrometer with pulse emitter
Port :
DN400F
Connect port :
Flange
Pressure rating :
PN16 , PN10
Housing Material :
ductile iron
Class :
Class B
Register :
dry dial
Remote reading :
optional pulse emitter
Description

Dry Dial Woltman Water Meter DN300 Multijet Water Meter Vacuum Seal for irrigation hydrometer

Application

  • Measuring the volume of cold (hot) water passing through the pipeline

Feature:

  • Removable element structure, easy installation and maintenance
  • Dry-dial, Magnetic drive;
  • Large flow capacity, small pressure loss;
  • Resist water hummer and pollution;
  • Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
  • Selected high quality materials for steady and reliable characteristic;
  • Technical data conform to international standard ISO 4064.

Working condition

  • Water temperature: 0.1℃～40℃ (0.1℃～90℃ for hot water meter)
  • Water pressure: ≤1.0Mpa (1.6MPa on request)

Maximum permissible errors

  • in the lower zone from qmin inclusive up to but excluding qt is ±5%
  • in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)

MAIN TECHNICAL SPECIFICATIONS

Type Size(mm) Class qsOverloadFlow qpPermanentFlow qtTransitional Flow qminMin.Flow Min. Reading Max. Reading
m3/h m3
LXXG-50 50 A 30 15 4.5 1.2 0.0002 999,999
LXXG-65 65 A 50 25 7.5 2.0 0.002 999,999
LXXG-80 80 A 80 40 12 3.2 0.002 999,999
LXXG-100 100 A 120 60 18 4.8 0.002 999,999
LXXG-125 125 A 200 100 30 8 0.002 999,999
LXXG-150 150 A 300 150 45 12 0.002 999,999
LXXG-200 200 A 500 250 75 20 0.002 999,999
LXXG-250 250 A 800 400 120 32 0.02 9,999,999
LXXG-300 300 A 1200 600 180 48 0.02 9,999,999

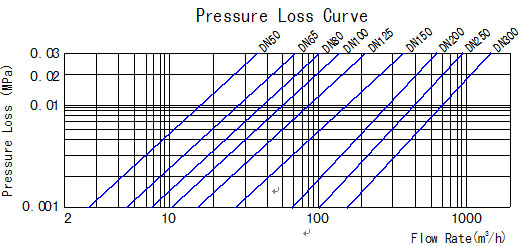

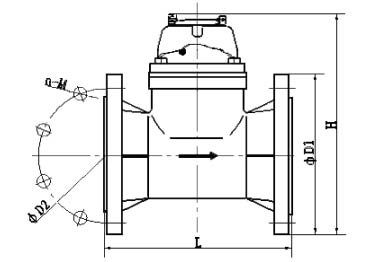

DIMENSIONS

Type Size

L

Length

H

Height

 Connecting flange
φD1Outside diameter φD2Bolt circle diameter

ConnectingBolts

(n-M)
mm
LXXG-50 50 200 253 165 125 4-M16
LXXG-65 65 200 268 185 145 4-M16
LXXG-80 80 225 284 200 160 8-M16
LXXG-100 100 250 295 220 180 8-M16
LXXG-125 125 250 310 250 210 8-M16
LXXG-150 150 300 339 285 240 8-M20
LXXG-200 200 350 382 340 295 8-M20(1.0MPa)
12-M20(1.6MPa)
LXXG-250 250 400 433 395 350 12-M20(1.0MPa)
450 438 405 355 12-M24(1.6MPa)
LXXG-300 300 450 483 445 400 12-M20(1.0MPa)
500 488 460 410 12-M24(1.6MPa)

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

NOTE: The flange dimension conforms to ISO7005-2:1988 standard. Order for products of special requirements is also accepted.

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

LXXG-50～300 HORIZONTAL VANE WHEEL, DRY-DIAL COLD WATER METER

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

Code Description Material QTY
1 Screw M5×45 For Sealing Stainless Steel 1
2 Screw M5×45 Stainless Steel 1
3 Cover With Lid Assembly 1
4 Sealed Register Assembly 1
5 Fixing pin Brass 1
6 Retainer Ring ABS 1
7 Screw Brass 4
8 Pin Stainless Steel 1
9 Support ABS 1
10 Bolt For Sealing Stainless Steel 2
11 Bolt M12×35 Stainless Steel 2
12 Gasket Stainless Steel 4
13 Adjusting Nut Brass 1
14 Flange Plate Cast Iron 1
15 O-ring Silicon Rubber 1
16 O-ring Silicon Rubber 1
17 Bush For Adjustment Brass 1
18 Upper Bearing Plate Brass 1
19 Screw Brass 4
20 Lower Central Gear Component 1
21 Cover Plate MPPO 1
22 O-ring For Adjustment Rubber 2
23 Transmission Gear Component Assembly 1
24 Adjusting Lever Brass 1
25 Turbine Component 1
26 Adjusting Plate MPPO 1
27 Bush with Agate Nylon with Graphite 1
28 Measuring Chamber MPPO 1
29 Fixing Screw Brass 3
30 O-ring Rubber 1
31 Body Cast Iron 1

Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team

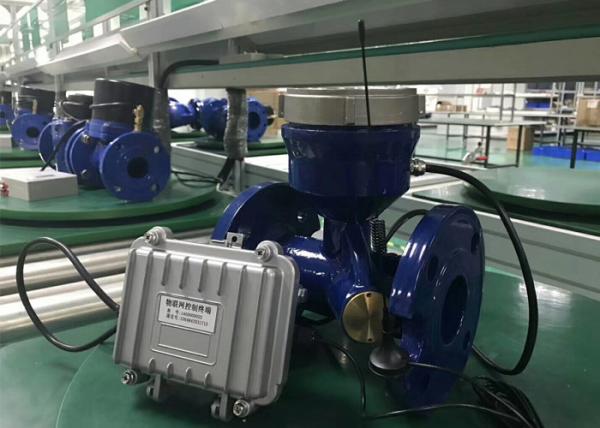

Production line

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter

Base water meter

Dry Dial DN400F Woltman Water Meter , PN10 Irrigation Multi Jet Water Meter
