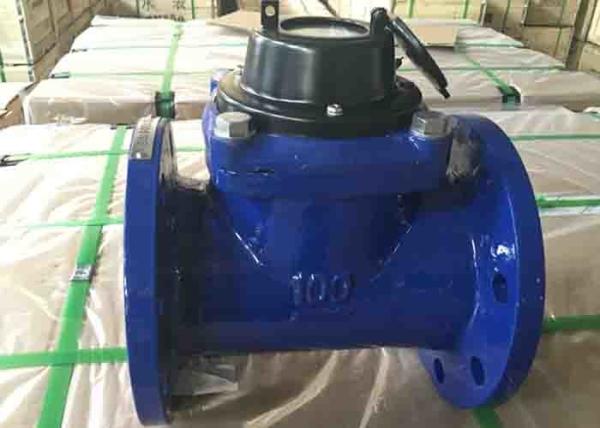

Flange Hot Woltman Water Meter With Pulse Emitter Remote Reading ISO 4064
Flange Hot Woltman Water Meter With Pulse Emitter Remote Reading ISO 4064
Flange Hot Woltman Water Meter With Pulse Emitter Remote Reading ISO 4064
Flange Hot Woltman Water Meter With Pulse Emitter Remote Reading ISO 4064
Specifications
Brand Name :
Iflow
Model Number :
LXLC-3
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
box + pallet
Type :
Hot water Woltman water meter
Pipe size :
DN50-DN300
Connect :
Flange
Pressure rating :
PN16
R valve :
R80
Class :
Class B
Material :
ductile iron, grey iron
Register :
dry dial
Description

Remote reading, Woltman water meter with pulse emitter, for industrial water meter PN16, Size DN50-300

INTRODUCTION:

This type of water meter also can be used for a remote reading transmission system as equipped with a built-in sensor.

APPLICATION:To totalize the total volume of cold (hot) water passing through the pipeline. Heat water meter, also can serve as heat meter. This type of water meter also can be used for a remote reading transmission system as equipped with a built-in sensor.

KEY FEATURES:

  • Vacuum sealed register ensures the dial keeps free from fog and keeps the reading clear in a long term service;
  • Selected high quality materials for steady & reliable characteristic;
  • Measuring mechanism has three different types.
  • Removable element structure, it is easy for installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
  • Dry-dial, Magnetic drive sensitive action, small pressure loss;
  • Counter of roller-big central pointer type, easy reading;
WORKING CONDITION:
  • The max.admissible water pressure: 1.0MPa OR 1.6MPa.
  • Water temperature: 0.1℃~50℃ for cold water ; 0.1℃~90℃ for hot water.
MAXIMUM PERMISSIBLE ERROR:
  • From transitional flow up to maximum flow both inclusive:
    ±2% for cold water.
    ±3% for hot water.
  • From minimum flow inclusive up to transitional flow: ±5%.
FLOW-ERROR CURVE PRESURE LOSS-ERROR CURVE
Flange Hot Woltman Water Meter With Pulse Emitter Remote Reading ISO 4064

DIMENSIONS AND WEIGHTS

Size Length L Height H Outer Diameter D1 Bolt Circle Diameter D2 Connecting Bolt Weight
mm n-Md Kg
50 200 247 165 125 4-M16 8
65 200 260 185 145 4-M16 13
80 225 265 200 160 8-M16 15
100 250 272 220 180 8-M16 19
125 250 295 250 210 8-M16 23
150 300 302 285 240 8-M20 30
200 350 359 340 295 8-M20(1.0MPa) 42
12-M20(1.6MPa) 41.5
250 450 470 395 350 12-M20(1.0MPa) 77
405 355 12-M24(1.6MPa) 79
300 500 492 445 400 12-M20(1.0MPa) 97
460 410 12-M24(1.6MPa) 114
400 600 631 565 515 16-M24(1.0MPa) 199
580 525 16-M27(1.6MPa) 206
500 800 740 670 620 20-M24(1.0MPa) 340
715 650 20-M30(1.6MPa) 358


MAIN TECHNICAL DATA

Size
mm		 CLASS Maximum
flow		 Nominal
flow		 Transitional
flow		 Minimum
flow		 Minimum
Reading		 Maximum
Reading
m3/h m3
50 B 30 15 3.0 0.45 0.001 999999
65 B 50 25 5.0 0.75 0.001 999999
80 B 80 40 8.0 1.2 0.001 999999
100 B 120 60 12 1.8 0.001 999999
125 B 200 100 20 3.0 0.001 999999
150 B 300 150 30 4.5 0.01 9999999
200 B 500 250 50 7.5 0.01 9999999
250 B 800 400 80 12 0.01 9999999
300 B 1200 600 120 18 0.01 9999999
400 B 2000 1000 200 30 0.1 99999999
500 B 3000 1500 300 45 0.1 99999999


BOUNDARY DIMENSION
Flange Hot Woltman Water Meter With Pulse Emitter Remote Reading ISO 4064

Competitive Advantage:

  • Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
  • Strict process control
  • Advanced calibration equipment
  • Engineer team
