130-200 Mm Length Ultrasonic Water Meter Customized Base Table Brass DN15-40
130-200 Mm Length Ultrasonic Water Meter Customized Base Table Brass DN15-40
130-200 Mm Length Ultrasonic Water Meter Customized Base Table Brass DN15-40
130-200 Mm Length Ultrasonic Water Meter Customized Base Table Brass DN15-40
Specifications
Brand Name :
Iflow
Model Number :
004
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Application :
energy meter base table
Material :
brass
Connect :
Thread
Pressure rating :
PN16 , PN10
Length :
130 - 200 mm
Transducer hole distance :
customized
Description

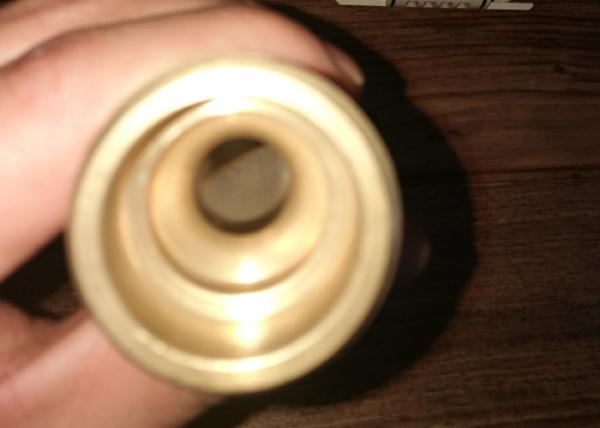

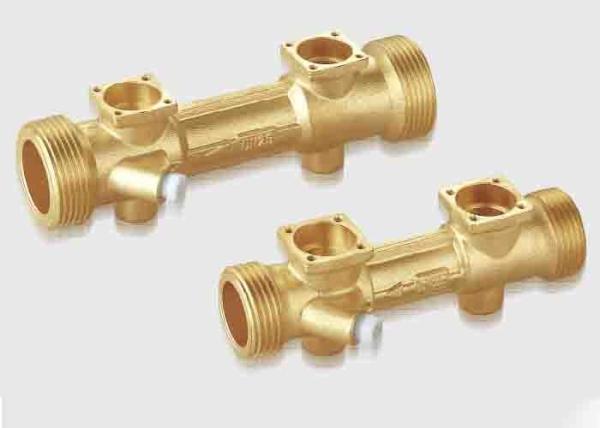

Customized base table for ultrasonic heat meter or cold water meter Brass, DN15-40

General Description:

The ultrasonic heat meter was specially designed for domestic water metering applications where conventional water meters fail due to harsh environment, solids in water, high maintenance, magnetic vandalization or incapability of leak detection. The sensor body is made from brass, not plastic. The whole meter is rated IP68 and is water-proof. Special packing technique protects the LCD from water condensation. This unique product can work reliably in challenging environment such as the desert or meter pits that fill with water.

A static ultrasonic water / heat meter with no moving parts to wear or tear. It is completely maintenance-free. The sensor body has a straight-through design with no blockage in the measuring tube. This not only leads to very minimal pressure drop, but also allows the meter to work with both pure water and water with some solids.

Applications

  • Revenue metering
  • Residential submetering
  • Commercial buildings
  • Leakage detection
  • AMR / AMI and billing

Parameter

Diameter

Tube length (mm)

Thread (inch)

Transducer hole size (mm)

Core (mm)

remarks

DN20

130

G1B

Φ21x9.2mm 17.2x1.5

Φ14x46mm

 Transducer fixed base size 27x27mm

DN25

160

G1-1/4B

Φ21x9.2mm 17.2x1.5

Φ17x60mm

DN32

180

G1-1/2B

Φ21x9.2mm 17.2x1.5

Φ22.5x60mm

DN40

200

G2B

Φ21x9.2mm 17.2x1.5

Φ28.5x60mm

Process equipment

130-200 Mm Length Ultrasonic Water Meter Customized Base Table Brass DN15-40
