DN80 / 3 Inch Electromagnetic Water Meter For HVAC / Industrial Utility
DN80 / 3 Inch Electromagnetic Water Meter For HVAC / Industrial Utility
Specifications
Brand Name :
Iflow
Model Number :
KEFD6
Certification :
ISO9001, CE, EMC, EXID
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
2-4 weeks
Packaging Details :
carton / box
Good name :
Electromagnetic water meter
Class :
0.5
Pressure rating :
1.6 Mpa
Temperature :
±(0.3 + 0.05 * T)K; ΔT = T ± 0.1K
Electrode :
316L / Hasteloy-C / Ti / Ta / Pt100
Standard :
ISO4064
Communication :
BACNET/Modbus/RS485/4-20 mA
Pipe connect :
Flange
Power supply :
DC, or DC + battery
Description

Electromagnetic water meter for HVAC, industrial utility, commercial building DN80 / 3 inch

General Introduction

This KEFD series magnetic water meters are specially designed for trade measurement and community assessment in commercial or industrial use. It has the characteristics of high R value (R160-400), extremely low starting velocity (5mm/s) and high accuracy. The stuck phenomenon will never happen. There is no any drop in precision caused by abrasion as well. Our electromagnetic water meter can replace the traditional mechanical water meter to reduce the measurement deviation and improve the working efficiency.

Key Features

  • Stand alone water meter with battery lifetime for more than 4 years. Easy battery change
  • Billing grade with class 0.5 accuracy
  • Plug and play. No need for programming, no need for wiring
  • Compact and rugged design. IP68 submersible
  • Large measurement range. Bi-directional
  • No moving parts to wear and tear. Maintenance free
  • Short straight-pipe run requirement. Suitable for any desired installation location
  • Optional GSM/GPRS wireless and turnkey data service.

Applications

  • MUNICIPAL WATER
  • INDUSTRIAL LIQUID
  • WASTEWATER
  • IRRIGATION
  • CHEMICALS
  • POWER SUPPLY
  • PHARMACEUTICALS
  • FOOD
  • PAPER PLANTS
  • METALLURGICAL MINES

Technical parameters:
1. Diameter: DN50 - DN500
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID

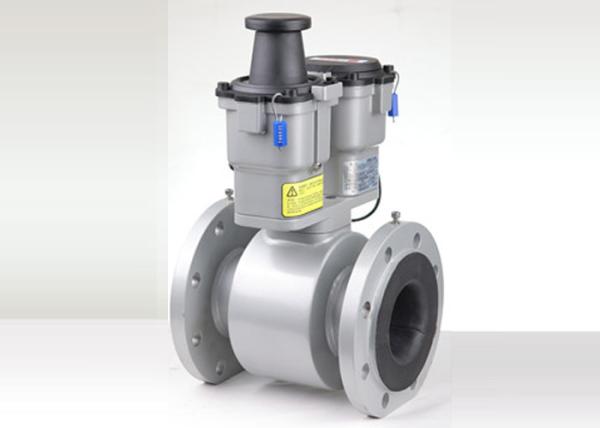

DN80 / 3 Inch Electromagnetic Water Meter For HVAC / Industrial Utility

Parameters

Product name Electromagnetic flowmeter
Product type Local|compact display Remote display Signal converter
Model IYF-E IYF-F IRT
Pipe Diameter (mm) DN10-DN2000
Power supply 100-240 VAC / 18-36 VDC
Accuracy + 0.5% + 0.5% + 0.5%
Power consumption <6w <6w <6w
Enclosure rating IP65 IP68 IP65
Liquid temperature -25-120℃ -25-120℃ -25-120℃
Ambient temperature -25-50℃ -25-50℃ -25-50℃
Relative humidity 10-90% 10-90% 10-90%
Meter ratio 1:100 1:100 1:100
Flow direction Bi-direction flow Bi-direction flow Bi-direction flow
Communication RS485 / Bacnet RS485 / Bacnet RS485 / Bacnet
Signal Output 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency


Measure Accuracy

Pipe Dia (mm) Velocity (m/s) Accuracy
3-20 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout
25-600 0.1-0.3 + 0.25% FS
0.3-1 + 0.5% Readout
1-15 + 0.3% Readout
700-3000 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout













Applications:
Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities
