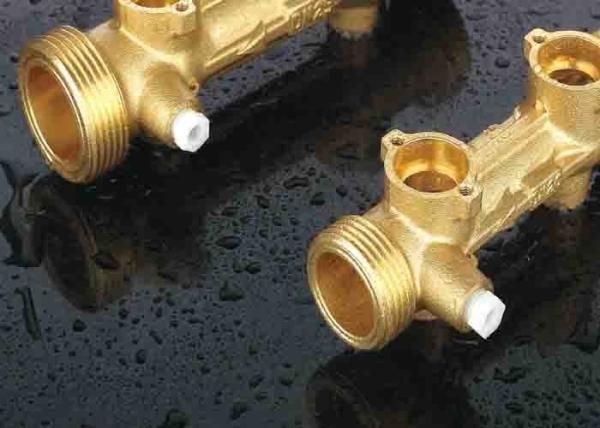

Brass Sensor Body Ultrasonic Heat Meter For Energy Consumption Measurement
Brass Sensor Body Ultrasonic Heat Meter For Energy Consumption Measurement
Brass Sensor Body Ultrasonic Heat Meter For Energy Consumption Measurement
Brass Sensor Body Ultrasonic Heat Meter For Energy Consumption Measurement
Specifications
Brand Name :
Iflow
Model Number :
002-3
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Product name :
sensor body for ultrasonic heat meter
Diameter :
1/2" to 1-1/2"
Connect :
Thread
Pressure rating :
PN16 , PN10
Temperature :
0 - 95 °C
Length :
110 - 200 mm
Transducer hole distance :
customized
Nozzle :
14*46 mm, customized
Description

Sensor body for Ultrasonic heat meter | cooling meter in energy consumption measurement DN15 - 40

General Description:

The ultrasonic heat meter and cooling meter is the new generation of heat meters and cooling meters for precise energy consumption measurement. The sensor body is molded in one piece, ensures flow accuracy, suitable with all famous brand ultrasonic heat meter. Kamstrup, Badgemeter, Spiremeter, etc.

Technical Parameter

Diameter

Tube length (mm)

Thread (inch)

Transducer hole size (mm)

Core (mm)

remarks

DN15

110

G3/4B

Φ21x9.2mm (17.2x1.5)

-

customized available

DN20

130

G1B

Φ21x9.2mm 17.2x1.5

Φ14x46mm

customized available

DN25

160

G1-1/4B

Φ21x9.2mm 17.2x1.5

Φ17x60mm

customized available

DN32

180

G1-1/2B

Φ21x9.2mm 17.2x1.5

Φ22.5x60mm

customized available

DN40

200

G2B

Φ21x9.2mm 17.2x1.5

Φ28.5x60mm

customized available
