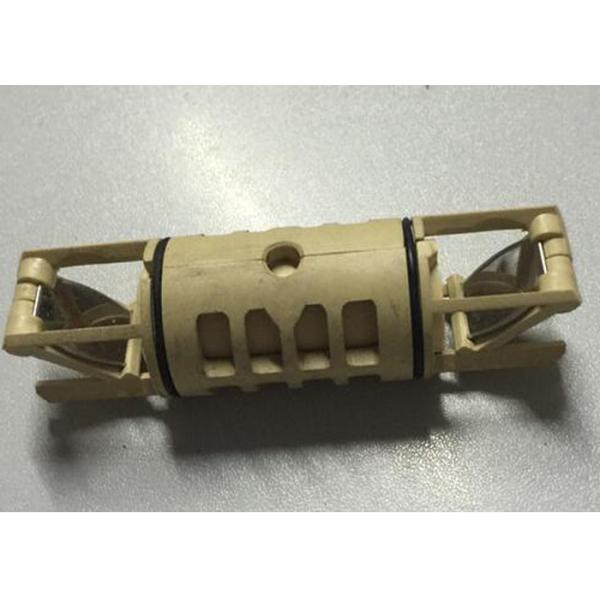

110 - 200 Mm Electronic Flow Meter / Heat Energy Meter PN16 Sensor Body
110 - 200 Mm Electronic Flow Meter / Heat Energy Meter PN16 Sensor Body
Specifications
Brand Name :
Iflow
Model Number :
008-2
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Product name :
Brass sensor body for ultrasonic heat meter
Dia of pipe :
DN15 - DN40
Connect :
Thread
Pressure rating :
PN16 , PN10
Temperature :
0 - 95 °C
Length :
110 - 200 mm
Transducer hole distance :
convection type
Nozzle :
14*46 mm, customized
Description

Brass sensor body for convection type ultrasonic water meter | heat energy meter DN15-DN40

General Description:

This sensor body is suitable for convection type ultrasonic water meter. The ultrasonic water / heat meter was specially designed for domestic water metering applications where conventional water meters fail due to harsh environment, solids in water, high maintenance, magnetic vandalization or incapability of leak detection.

Technical Parameter

Diameter

Tube length (mm)

Thread (inch)

Transducer hole size (mm)

Core (mm)

remarks

DN15

110

G3/4B

Φ21x9.2mm (17.2x1.5)

-

customized available

DN20

130

G1B

Φ21x9.2mm 17.2x1.5

Φ14x46mm

customized available

DN25

160

G1-1/4B

Φ21x9.2mm 17.2x1.5

Φ17x60mm

customized available

DN32

180

G1-1/2B

Φ21x9.2mm 17.2x1.5

Φ22.5x60mm

customized available

DN40

200

G2B

Φ21x9.2mm 17.2x1.5

Φ28.5x60mm

customized available
