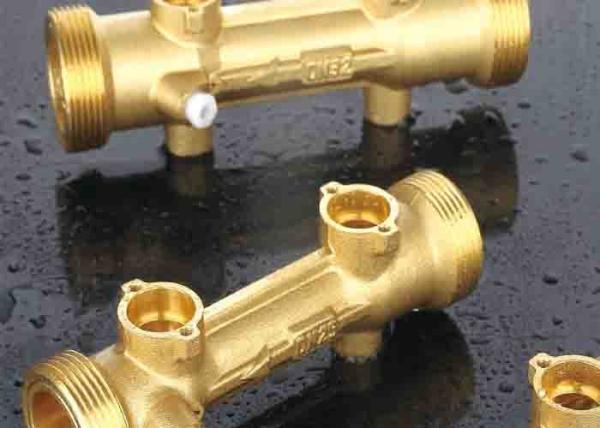

Static water meter's sensor body for ultrasonic water meter, Brass, DN15-DN40, PN16
Static water meter's sensor body for ultrasonic water meter, Brass, DN15-DN40, PN16
Specifications
Brand Name :
Iflow
Model Number :
008-5
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Product name :
static water meter
Size :
1/2" - 1-1/2"
End type :
Thread connect
Pressure rating :
PN16 , PN10
Temperature :
0 - 95 °C
Length :
110 - 200 mm
Transducer hole distance :
convection type
Nozzle :
14*46 mm, customized
Description

Static water meter's sensor body for ultrasonic water meter, Brass, DN15-DN40, PN16

General Description:

Our new generation of ultrasonic water / energy meters, used the solid-state technology in a compact, totally encapsulated, weatherproof, and UV-resistant housing, suitable for residential and light commercial smart water meter applications. Equipped with an easy-to-read, 9-digit LCD display, this residential smart water meter reports water consumption, rate of flow, reverse-flow indication, and alarms. With no moving parts.

Features

● Low pressure loss
● Waterproof
● High measuring accuracy
● Multi-position mounting
● Optional battery provision
● Optional communication port: LoRa, M-BUS or Pulse output
● Unique design of the flow sensor with Germany patent protection

Benefits

  • No moving parts virtually eliminates mechanical wear
  • Sealed, non-removable, tamper-protected meter and register
  • Minimum extended low-flow rate lower than typical positive displacement meters

Key Parameter

Diameter

Tube length (mm)

Thread (inch)

Transducer hole size (mm)

Core (mm)

remarks

DN15

110

G3/4B

Φ21x9.2mm (17.2x1.5)

-

customized available

DN20

130

G1B

Φ21x9.2mm 17.2x1.5

Φ14x46mm

customized available

DN25

160

G1-1/4B

Φ21x9.2mm 17.2x1.5

Φ17x60mm

customized available

DN32

180

G1-1/2B

Φ21x9.2mm 17.2x1.5

Φ22.5x60mm

customized available

DN40

200

G2B

Φ21x9.2mm 17.2x1.5

Φ28.5x60mm

customized available

Process equipment

Static water meter's sensor body for ultrasonic water meter, Brass, DN15-DN40, PN16
