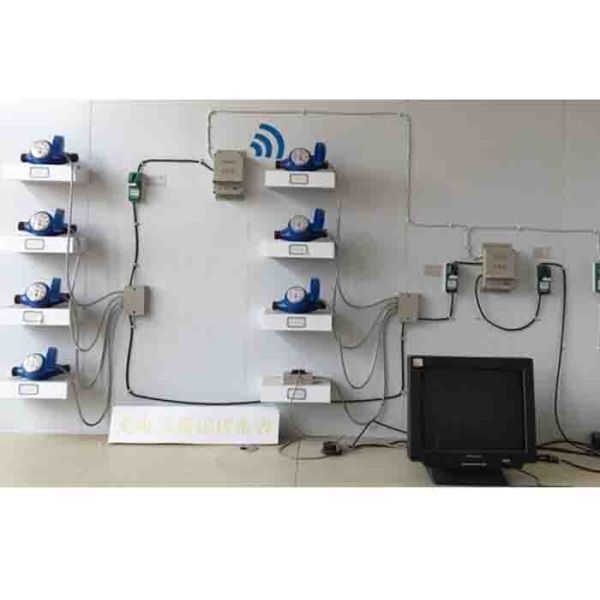

AMR smart water metering by multi jet water meter and wired Mbus transmit DN15-DN300

Applications:

Our advanced residential water meters LXSG-FX. It features electronic sensing of rotor speed, and remote readable by wired Mbus. All these features make the meter a building block for 'smart metering' measurement.

The multi-jet water meter operates on the velocity principle where water enters the measuring chamber through a number of ports and drives a rotor. The velocity of the rotor is proportional to the flow. Available in sizes 15mm to 40mm with nominal flow rates of Qn 1.5m3/h to Qn 10m3/h

Features

FUNCTIONS

1.Totally sealed design, waterproof.

2. Automatically memorize the wheel code position and no need initiation.

3. Avoiding external strong magnetic attack, high performance of anti-interference.

4. Effectively solve the phenomenon of reversing and hammering.

5. Adopting M-BUS communication port, which with long distance communication.

6. No need power supply for daily work.

7. With remote valve control function that can stop water supply remotely.

The basic water meter Features:

• The Nominal flowrate of Qn 1.5 m³/h to 15m³/h, Q3 2.5m³/h to 25m³/h
• R value is R80 / 100 / 125 / 160 as requested
• Suitable for both cold and warm water applications
• Replaceable meter inserts available
• Good readability even at extreme operational conditions
• Optionally retrofittable with pulse contactors

Water meter operate condition:

• Water temperature:0.1℃～40℃ for cold water
  30℃～90℃ for hot water meter.
• Water pressure: ≤1.0 Mpa

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

TECHNICAL PARAMETERS

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team
