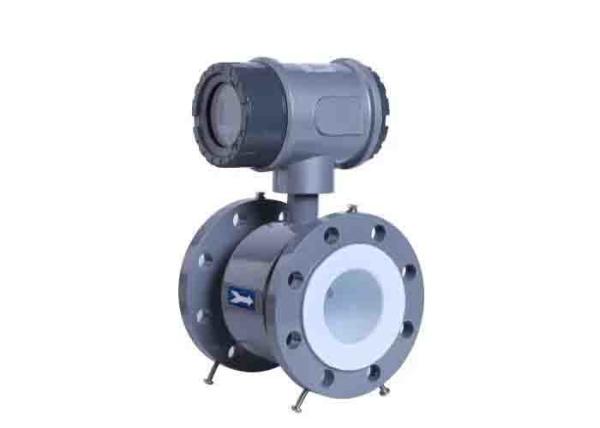

Magnetic flow meter in sewage treatment plant PN16 Liner: Rubber, DN150
Magnetic flow meter in sewage treatment plant PN16 Liner: Rubber, DN150
Magnetic flow meter in sewage treatment plant PN16 Liner: Rubber, DN150
Magnetic flow meter in sewage treatment plant PN16 Liner: Rubber, DN150
Specifications
Brand Name :
Iflow
Model Number :
YE-E2
Certification :
ISO9001, CE, EMC, EXID
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C, D/P, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
2-4 weeks
Packaging Details :
carton / box
Name :
Water flow meter
Measure accuracy :
1%
Liner :
CR
Temperature :
±(0.3 + 0.05 * T)K; ΔT = T ± 0.1K
Electrode :
316L / Hasteloy-C / Ti / Ta / Pt100
Standard :
ISO4064
Communication :
BACNET/Modbus/RS485/4-20 mA
Pipe connect :
Flange
Power supply :
DC, or DC + battery
Description

Magnetic flow meter in sewage treatment plant PN16 Liner: Rubber, DN150

Product introduction

The ideal flow meter suitable for wide range of liquid flow measurements even with very low conductivities. The meter offers no resistance to flow hence the pressure drop is almost negligible. The measurement being based on Faraday’s law of electromagnetic induction, is independent of visocity, density, pressure & temperature of flowing medium. The measurement is not affected by solid impurities as long as the min. conductivity of 5μs/cm is available. It is a true volumetric flow measurement. We offer various materials of construction for meter lining & electrodes to cover majority of corrosive liquids.

Product Features

  • High accuracy and wide flow rate range measurement
  • Bi-directional measure
  • Empty pipe electrode supplied as a standard (≥ DN50)
  • Coupled with any Euromag converters
  • Pressure port integrated (on request)
  • In house wet calibration for all diameters (up to DN2000)
  • Robust, fully welded and potted construction
  • Standard solution for the widest range of industrial applications
  • Certified for use in ballast systems
  • External coating for offshore or subsoil installation. Optional paint certified for C4 class environment
  • Wide choice of materials for housing and flanges including SS304 and SS316

Applications

  • MUNICIPAL WATER
  • INDUSTRIAL LIQUID
  • WASTEWATER
  • IRRIGATION
  • CHEMICALS
  • POWER SUPPLY
  • PHARMACEUTICALS
  • FOOD
  • PAPER PLANTS
  • METALLURGICAL MINES

Technical parameters:
1. Diameter: DN50 - DN500
2. Pressure rating: PN10/PN16/PN25/PN40
3. Media temperature: 0-80 C (Rubber), 0-120 C (PTFE)
4. Environment temperature: 0 - 60 C
5. Protection: IP68 (flow sensor)
6. Explosion proof: EXID
Magnetic flow meter in sewage treatment plant PN16 Liner: Rubber, DN150

Parameters

Product name Electromagnetic flowmeter
Product type Local|compact display Remote display Signal converter
Model IYF-E IYF-F IRT
Pipe Diameter (mm) DN10-DN2000
Power supply 100-240 VAC / 18-36 VDC
Accuracy + 0.5% + 0.5% + 0.5%
Power consumption <6w <6w <6w
Enclosure rating IP65 IP68 IP65
Liquid temperature -25-120℃ -25-120℃ -25-120℃
Ambient temperature -25-50℃ -25-50℃ -25-50℃
Relative humidity 10-90% 10-90% 10-90%
Meter ratio 1:100 1:100 1:100
Flow direction Bi-direction flow Bi-direction flow Bi-direction flow
Communication RS485 / Bacnet RS485 / Bacnet RS485 / Bacnet
Signal Output 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency 4-20mA/Pulse/Frequency


Measure Accuracy

Pipe Dia (mm) Velocity (m/s) Accuracy
3-20 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout
25-600 0.1-0.3 + 0.25% FS
0.3-1 + 0.5% Readout
1-15 + 0.3% Readout
700-3000 <0.3 + 0.25% FS
0.3-1 + 1.0% Readout
1-15 + 0.25% Readout













Applications:
Irrigation, clean water, paper pulp, slurry, sewage, waste water, HVAC/R system monitoring, residential water meter, industrial & commercial water utilities
