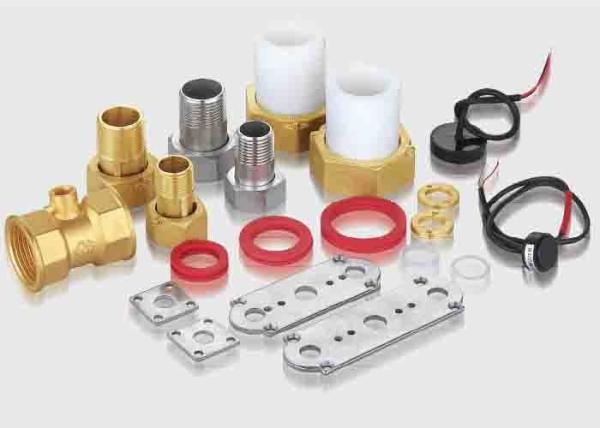

PN10 Ultrasonic Water Meter Brass Sensor Body For Residential Volumetric Water Metering
PN10 Ultrasonic Water Meter Brass Sensor Body For Residential Volumetric Water Metering
PN10 Ultrasonic Water Meter Brass Sensor Body For Residential Volumetric Water Metering
PN10 Ultrasonic Water Meter Brass Sensor Body For Residential Volumetric Water Metering
Specifications
Brand Name :
Iflow
Model Number :
008-4
Certification :
ISO 4064, GB/T19001
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2200000 units per year
Delivery Time :
4-6 weeks
Packaging Details :
wooden case pluse pallet
Product name :
Ultrasonic water meter's sensor body
Diameter :
1/2" - 1-1/2"
Connect :
Thread
Pressure rating :
PN16 , PN10
Temperature :
0 - 95 °C
Length :
110 - 200 mm
Transducer hole distance :
convection type
Nozzle :
14*46 mm, customized
Description

Ultrasonic energy meter | water meter for residential volumetric water metering Brass sensor body

ProductDescription:

The ultrasonic water / energy meters, used the solid-state technology in a compact, totally encapsulated, weatherproof, and UV-resistant housing, suitable for residential and light commercial smart water meter applications. Equipped with an easy-to-read, 9-digit LCD display, this residential smart water meter reports water consumption, rate of flow, reverse-flow indication, and alarms. With no moving parts.

Benefits

  • No moving parts virtually eliminates mechanical wear
  • Sealed, non-removable, tamper-protected meter and register
  • Minimum extended low-flow rate lower than typical positive displacement meters

Features

  • Materials: brass, stainless steel
  • Simplified one-piece electronic meter and register are integral to meter body
  • Easy-to-read, 9-digit LCD display reports consumption, rate of flow, reverse-flow indication, and alarms
  • Complies with the lead-free provisions of the Safe Drinking Water Act

Key Parameter

Diameter

Tube length (mm)

Thread (inch)

Transducer hole size (mm)

Core (mm)

remarks

DN15

110

G3/4B

Φ21x9.2mm (17.2x1.5)

-

customized available

DN20

130

G1B

Φ21x9.2mm 17.2x1.5

Φ14x46mm

customized available

DN25

160

G1-1/4B

Φ21x9.2mm 17.2x1.5

Φ17x60mm

customized available

DN32

180

G1-1/2B

Φ21x9.2mm 17.2x1.5

Φ22.5x60mm

customized available

DN40

200

G2B

Φ21x9.2mm 17.2x1.5

Φ28.5x60mm

customized available
