Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity
Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity
Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity
Hot Dip Galvanized Wire Mesh Container Foldable Large Loading Capacity
Specifications
Brand Name :
Wuhao
Model Number :
C2-1000
Place of Origin :
China
MOQ :
50 units
Price :
Negotiatable
Payment Terms :
T/T
Supply Ability :
40000 per month
Delivery Time :
15-20 days
Packaging Details :
(1) Stretch films and plastic banding wrapped (2) Packaged as per customer's requirements
Model No. :
C2-1000
External Size :
1200*1000*890mm
Internal Size :
950*750*700mm
Wire Gauge :
5.6mm
Mesh Size :
50*100mm
Surface Treatment :
Zinc plated/ Hot dip galvanized/ powder coating
Option :
castors, lid, pp sheet and so on
Application :
Material handling, transport, storage, warehouse and so on
Description

Storage Container for Warehouse Stackable Wire Container Foldable

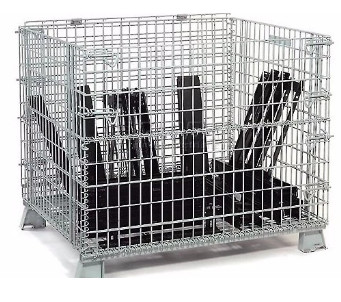

Wire mesh container

High-visibility parts storage for manufacturing and warehousing. Features reinforced under carriage and support legs, fully galvanized finish and a collapsible, stackable design for efficient storage. Folds flat for space-saving storage, with front drop-gate for easy access. Dimensions available, Material Wire mesh, Foldable Yes, Flared legs allow for easy 4-high stacking.

• 1200L x 1000W x 890H mm/ 1000L x 800W x 840H mm/ 800L x 600W x 640H mm
• Rugged 2-gauge 2in x 2in wire mesh with reinforced understructure
• Many capacity available
• Flared legs allow for easy 4-high stacking

Castors options

Roller bearing swivel casters are made of high-impact polypropylene, with 2 locking casters.

Two swivel locking poly casters and two rigid poly casters

Other options

It can work with pp sheet, wood pallet, plastic pallet, a top/cover, and casters and so on.

Specification:

Product Description Brand WUHAO
Type wire container, wire mesh container
Product code C2-1000
Dimension(L*W*H) 1200x1000x890mm
Mesh size 50x100mm
Wire guage 5.8mm
Weight 53kg
Loading Capacity 1000kg
Stackability four-layers
Material Steel wire and cold-rolled steel plate
Finishing Zinc plating, powder coat
Quantity/20Gp 144 units
Quantity/40Gp 324 units
Product shelf life up to 3 years under proper handling
MOQ no
Application warehouse, supermarket, logistics, etc.

Regular production models

C Series
Item No.

Specification

 Wire diameter Mesh gauge Load capacity Self-weight Feet height

Load quantity
External size (L*W*H)(mm) Internal size (L*W*H)(mm)

(mm)

(mm)

(kg)

(kg)±2%

(mm)

20' FT

40 ' FT
C1-1500

1200*100*890

1150*950*750

 5.8 50*50 1500 60

100

144

324
C1-1300 5.6 50*50 1300 55
C2-1000 5.8 50*100 1000 53
C2-800 5.6 50*100 800 48
C3-2000 6.3 50*50 2000 68

(1) Customized size: the size, wire diameter, mesh gauge can be customized as your design.

(2) Surface treatment: galvanized or powder coating.

Features:

• Collapses in seconds without the need of any tools
• Drop down gate with self locking latches provides access even when stacked.
• Zinc plated finish
• Easy to operate or fold: one or two person’s operation
• Ergonomic: Easy access to the products
• Good product visibility
• No detachable parts or no loose parts
