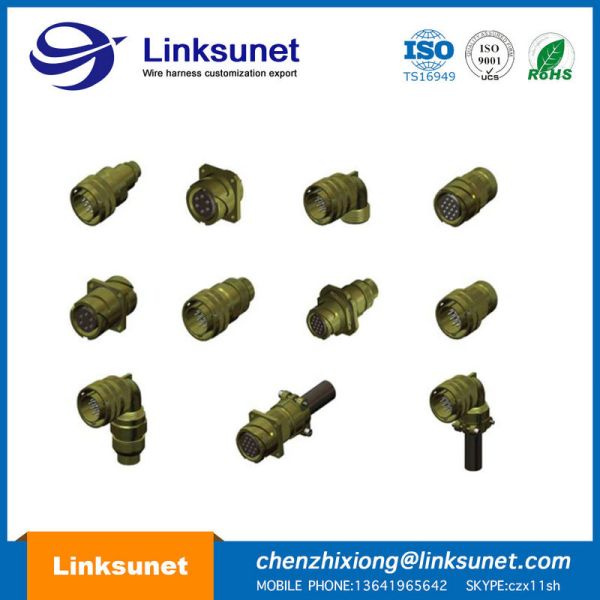

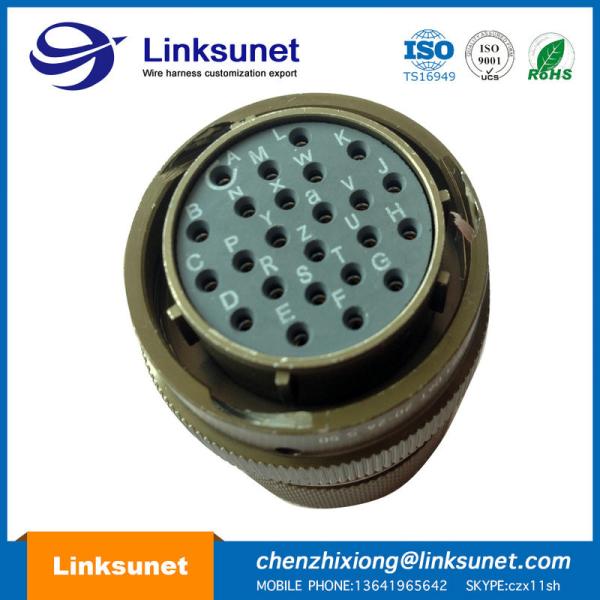

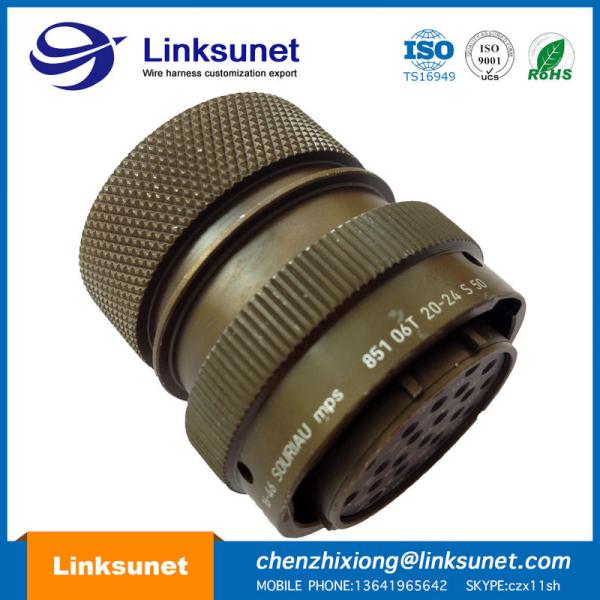

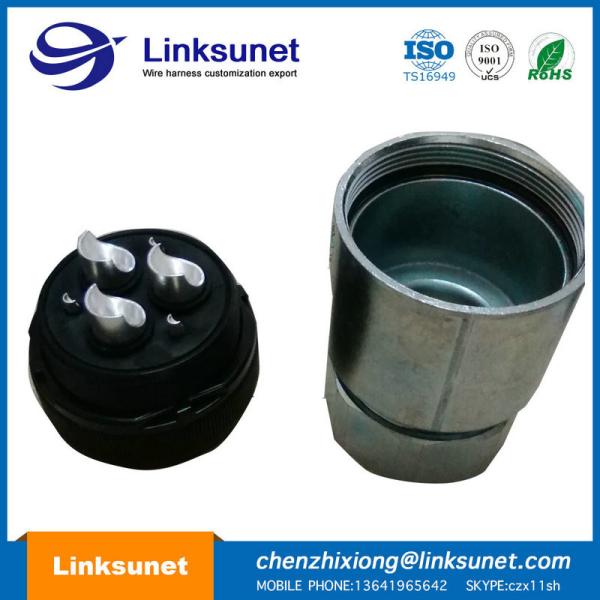

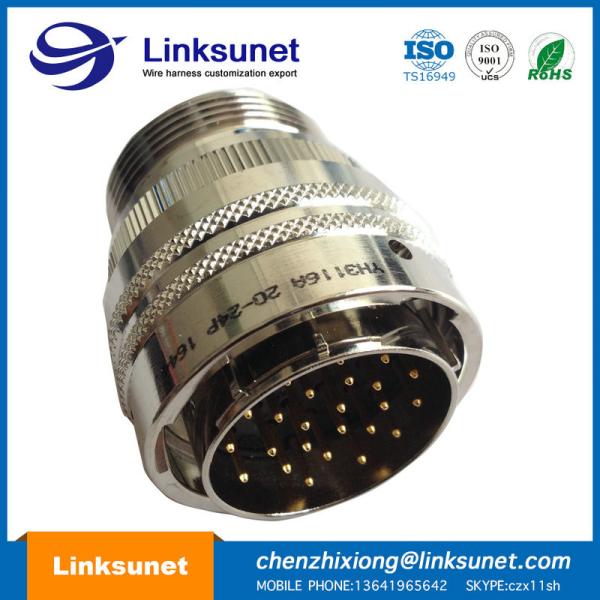

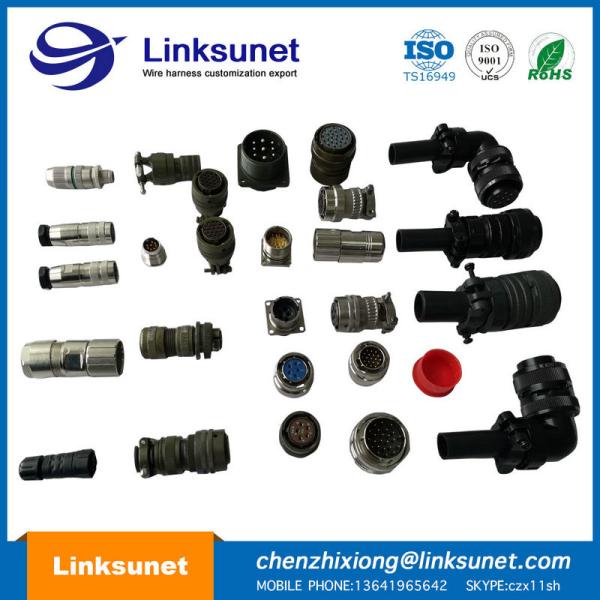

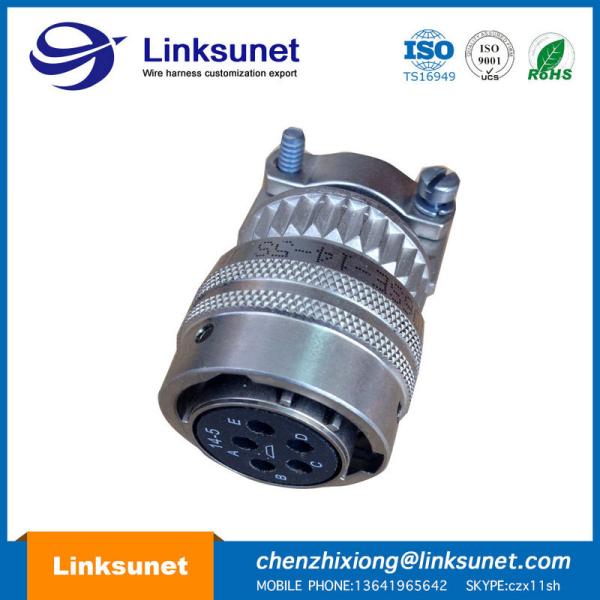

Welding Robot Arm Dress Package Harness DDK 36-3A / Wire Harness Assembly Solution Provider Customization

Features

Specifications

Current Rating 1A ／ Contact Voltage Rating 24V DC Dielectric Withstanding Voltage 1500V AC(r.m.s.) ／ 1 minute Insulation Resistance 1,000M Ω Min. at 500V DC Waterproof IP67 when mated Operating Temperature Range -25° C to +70° C No.of Contacts 25
(#20-2 Pin , #22-23 Pin)
32(#20-2 Pin , #22-30 Pin)
Applicable Wire Size #20 : 20AWG to 22AWG
#22 : 24AWG to 28AWG

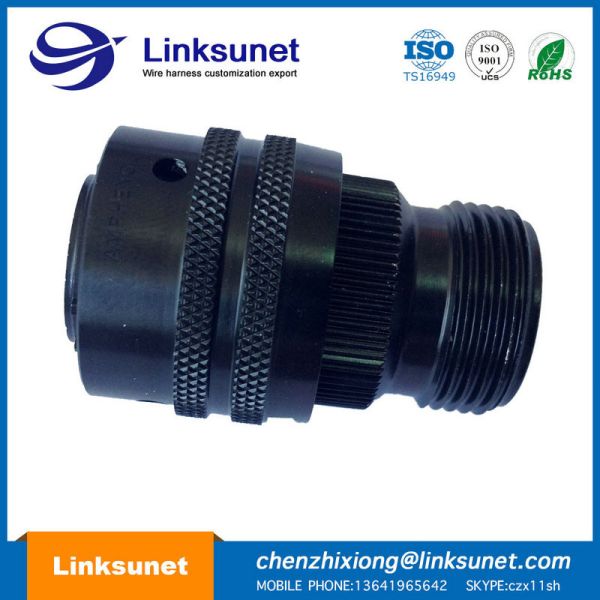

Strong construction, using metal shells.
One-touch mating and sure locking by “Push-On & Turn-Off”mechanism.
Sequence Structure With Protective Circuitry. #20 size power contacs, making first connections.
High Reliability by crimping termination.

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 3-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 10 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard:
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know
