PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm Pitch
Specifications
Brand Name :
Molex
Model Number :
51021 - 1200
Certification :
ROHS / UL
Place of Origin :
JAPA
MOQ :
100set
Price :
Negotiable
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
50000SET/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Overview :
PicoBlade Connector System
Color :
Natural
Category :
Crimp Housings
UL :
E29179
Application :
Signal, Wire-to-Board, Wire-to-Wire
Description

Part Number: 51021-1200

1.25mm Pitch PicoBlade™ Wire-to-Wire and Wire-to-Board Housing, Female, 12 Circuits

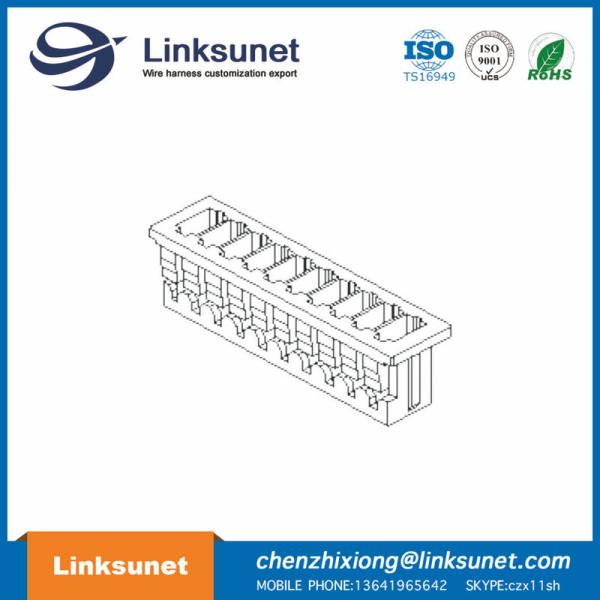

PicoBlade Wire To Wire Male Female Wire Connectors Female Molex 51021 - 1200 1.25mm PitchSeries image - Reference only

Status:Active

Series:51021

Category:Crimp Housings

Overview:PicoBlade™ Connector System

Part Detail

General

Status

Active

Category

Crimp Housings

Series

51021

Application

Signal , Wire - to - Board , Wire - to - Wire

Current Derating Order No

987651 - 3691

Overview

PicoBlade™ Connector System

Product Name

PicoBlade™

UPC

800753575264

Physical

Circuits (maximum)

12

Color - Resin

Natural

Flammability

94V - 0

Gender

Receptacle

Glow-Wire Compliant

No

Lock to Mating Part

Yes

Material - Resin

Polyester

Net Weight

106.400 / mg

Number of Rows

1

Packaging Type

Bag

Panel Mount

No

Pitch - Mating Interface

1.25mm

Polarized to Mating Part

Yes

Stackable

No

Temperature Range - Operating

- 40 °C to + 85 °C

Electrical

( Please review the Product Specification for specific details. )

Current - Maximum per Contact

0.8A , 1.0A

Agency Certification

Please find UL Certificates by searching the UL Database using the Molex Series Number . Click here to visit the UL Database

CSA

LR19980

UL

E29179

Reference - Drawing Numbers

Packaging Specification

SPK - 51021 - 001 - 001

Product Specification

PS - 51021 - 001 - 001 , PS - 51021 - 010 - 001 , PS - 51021 - 011 - 001,

PS - 51021 - 022 - 001 , PS - 51021 - 023 - 001 , PS - 51021- 024 - 001,

PS - 51021 - 025 - 001 , PS - 51021 - 026 - 001 , PS - 51021 - 027 - 001

Sales Drawing

SD - 51021 - 002 , SD - 51021 - 005

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know


Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
