MOLEX 43031 - 0001 , 20 - 24 AWG Male Crimp Terminal With Tin Plated Phosphor Bronze Contact
MOLEX 43031 - 0001 , 20 - 24 AWG Male Crimp Terminal With Tin Plated Phosphor Bronze Contact
MOLEX 43031 - 0001 , 20 - 24 AWG Male Crimp Terminal With Tin Plated Phosphor Bronze Contact
MOLEX 43031 - 0001 , 20 - 24 AWG Male Crimp Terminal With Tin Plated Phosphor Bronze Contact
MOLEX 43031 - 0001 , 20 - 24 AWG Male Crimp Terminal With Tin Plated Phosphor Bronze Contact
MOLEX 43031 - 0001 , 20 - 24 AWG Male Crimp Terminal With Tin Plated Phosphor Bronze Contact
Specifications
Brand Name :
MOLEX
Model Number :
43031 - 0001
Certification :
ROHS
Place of Origin :
JAPA
MOQ :
100set
Price :
Negotiable
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
50000SET/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Overview :
Micro-Fit 3.0 Connector System Product Family
Category :
Crimp Terminals
Application :
Power
Pitch :
3.00mm
Wire Size AWG :
20, 22, 24
Description

Part Number: 43031-0001

Micro-Fit 3.0™ Crimp Terminal, Male, with Tin (Sn) Plated Phosphor Bronze Contact, 20-24 AWG, Reel

MOLEX 43031 - 0001 , 20 - 24 AWG Male Crimp Terminal With Tin Plated Phosphor Bronze Contact

Click for larger image

Status:Active

Series:43031

Category:Crimp Terminals

Overview:Micro-Fit 3.0 Connector System Product Family

Packaging Alternative:43031-0007 (Loose)

Part Detail

General

Status Active
Category Crimp Terminals
Series 43031
Application Power
Overview Micro - Fit 3.0 Connector System Product Family
Product Literature Order No 987650 - 5984
Product Name Micro - Fit 3.0 ™
UPC 800753683679

Physical

Gender Male
Material - Metal Phosphor Bronze
Material - Plating Mating Tin
Material - Plating Termination Tin
Net Weight 0.061 / g
Packaging Type Reel
Plating min - Mating 1.016µm
Plating min - Termination 1.016µm
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.85mm max.
Wire Size AWG 20 , 22 , 24
Wire Size mm² N / A

Solder Process Data

Solderability Shelf Life Statement
Lead - freeProcess Capability N / A

Reference - Drawing Numbers

Product Specification PS - 43045 , TS - 46235 - 001 - 001

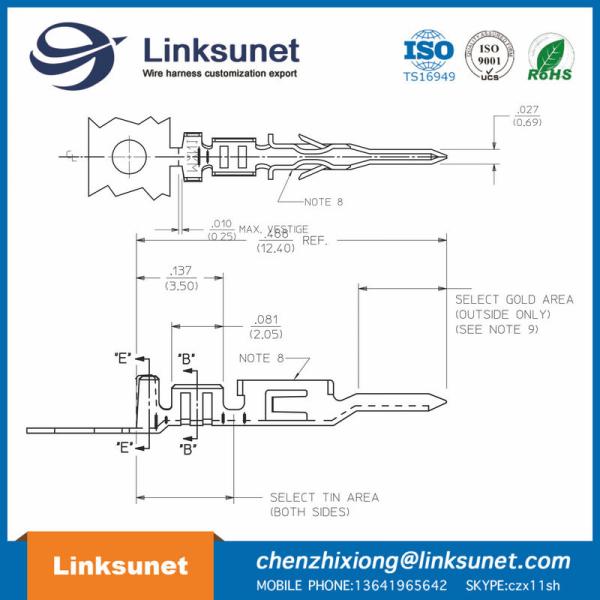

Sales Drawing SD - 43031 - * * * *

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
