26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade
Specifications
Brand Name :
Molex
Model Number :
50079-8000
Certification :
ROHS / UL
Place of Origin :
JAPA
MOQ :
100set
Price :
Negotiable
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
50000SET/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Category :
Crimp Terminals
Color :
Natural
Wire Size AWG :
26, 28
Gender :
Female
Application :
Signal
Description

Part Number: 50079-8000

1.25mm Pitch PicoBlade™ Crimp Terminal, 26-28 AWG, Reel

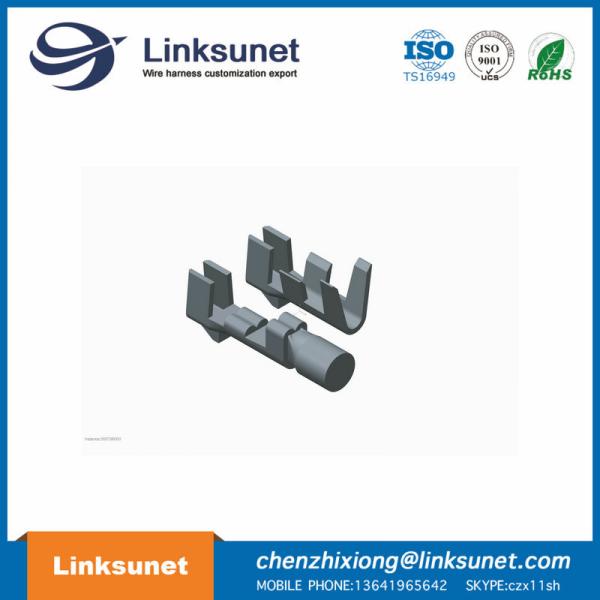

26 - 28 AWG Reel Female Crimp Terminal Molex 50079-8000 1.25mm Pitch PicoBlade Series image - Reference only

Status:Active

Series:50079

Category:Crimp Terminals

Overview:PicoBlade™ Connector System

Packaging Alternative:50079-8100 (Loose)

Part Detail

General

Status

Active

Category

Crimp Terminals

Series

50079

Application

Signal

Current Derating Order No

987651 - 3691

Overview

PicoBlade™ Connector System

Product Name

PicoBlade™

UPC

800753616233

Physical

Durability ( mating cycles max )

30

Gender

Female

Material - Metal

Phosphor Bronze

Material - Plating Mating

Tin

Material - Plating Termination

Tin

Net Weight

10.100 / mg

Packaging Type

Reel

Plating min - Mating

0.889µm

Plating min - Termination

0.914µm

Termination Interface: Style

Crimp or Compression

Wire Insulation Diameter

0.50 - 1.04mm

Wire Size AWG

26 , 28

Wire Size mm²

N / A

Electrical

( Please review the Product Specification for specific details . )

Current - Maximum per Contact

1.0A

Reference - Drawing Numbers

Packaging Specification

SPK - 50079 - 001 - 001

Product Specification

PS - 51021 - 001 - 001 , PS - 51021 - 002 - 001 , PS - 51021 - 009 - 001,

PS - 51021 - 010 - 001 , PS - 51021 - 011 - 001 , PS - 51021 - 022-001,

PS - 51021 - 023 - 001 , PS - 51021 - 024 - 001 , PS - 51021 - 025 - 001,

PS - 51021 - 026 - 001 , PS - 51021 - 027 - 001 , PS - 51021 - 032 - 001

Sales Drawing

SD - 50079 - 001 , SD - 51021 - 002

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know


Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
