MOLEX Male Female Wire Connectors Krimptite Ring Tongue Terminal For 10 - 12 AWG Wire
MOLEX Male Female Wire Connectors Krimptite Ring Tongue Terminal For 10 - 12 AWG Wire
MOLEX Male Female Wire Connectors Krimptite Ring Tongue Terminal For 10 - 12 AWG Wire
MOLEX Male Female Wire Connectors Krimptite Ring Tongue Terminal For 10 - 12 AWG Wire
MOLEX Male Female Wire Connectors Krimptite Ring Tongue Terminal For 10 - 12 AWG Wire
MOLEX Male Female Wire Connectors Krimptite Ring Tongue Terminal For 10 - 12 AWG Wire
Specifications
Brand Name :
MOLEX
Model Number :
19069 - 0209
Certification :
ROHS
Place of Origin :
JAPA
MOQ :
100set
Price :
Negotiable
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
50000SET/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Overview :
Solderless Terminals
Color :
GRAY
Category :
Ring and Spade Terminals
cable :
UL1007-10-12AWG
Stud Size :
10 ( M5 )
Length :
19 . 94mm
Description

Part Number: 19069-0209

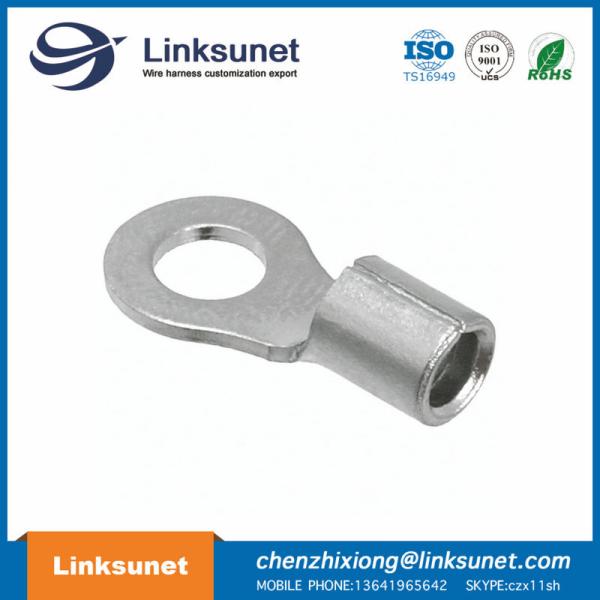

Krimptite™ Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 10 (M5), Length 19.94mm

MOLEX Male Female Wire Connectors Krimptite Ring Tongue Terminal For 10 - 12 AWG WireSeries image - Reference only

Status : Active

Series : 19069

Category : Ring and Spade Terminals

Overview : Solderless Terminals

Engineering / Old PN : C - 128 -10

Part Detail

General

Status Active
Category Ring and Spade Terminals
Series 19069
Mil-Spec N / A
Overview Solderledd Terminals
Product Name Krimptite™
Type Ring
UPC 800755067231

Physical

Barrel Type Closed
Insulation None
Material - Plating Mating Tin
Material - Plating Termination Tin
Net Weight 1.488 / g
Packaging Type Bag
Plating min - Mating 2 . 540µm
Plating min - Termination 2 . 540µm
Stud Size 10 ( M5 )
Termination Interface : Style Crimp or Compression
Wire Size AWG 10 , 12
Wire Size mm ² 4 . 00 - 6 . 00

Agency Certification

Please find UL Certificates by searching the UL Database using the Molex Series Number . Click here to visit the UL Database
CSA LR18689
UL E32244

Solder Process Data

Solderability Shelf Life Statement
Lead-freeProcess Capability N / A

Material Info

Engineering Number C - 128 - 10

Reference - Drawing Numbers

Product Specification PS - 19902 - 011 - 001 , PS - 19902 - 013 - 001
Sales Drawing SD - 19069 - 020

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
