MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors
MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors
MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors
MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors
MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors
MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors
Specifications
Brand Name :
MOLEX
Model Number :
70543 - 0001
Certification :
ROHS
Place of Origin :
JAPAN
MOQ :
100set
Price :
Negotiable
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
50000SET/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Overview :
SL Modular Connectors
Color :
Black
Category :
PCB Headers
Application :
Signal, Wire-to-Board
Pitch :
2.54mm
UL :
E29179
Description

MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors

Part Number : 70543-0001

2.54mm Pitch SL™ Header, Single Row , Vertical , 3.05mm Pocket , Shrouded, 2 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating

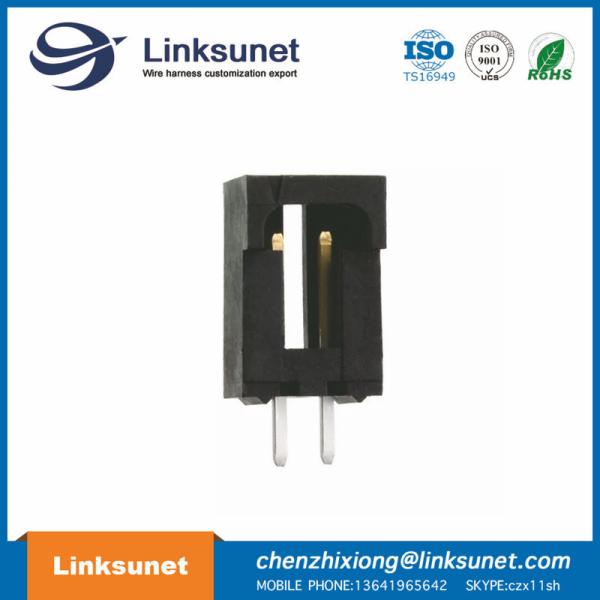

MOLEX 70543 - 0001 SL Header , Single Row , Vertical , 2.54mm Pitch Male Female Wire Connectors Series image - Reference only

Status : Active

Series : 70543

Category : PCB Headers

Overview : SL™ Modular Connectors

Engineering/Old PN : A - 70543 - 0001

Part Detail

General

Status

Active

Category

PCB Headers

Series

70543

Application

Signal, Wire-to-Board

Overview

SL™ Modular Connectors

Product Name

SL™

UPC

800753597884

Physical

Breakaway

No

Circuits (Loaded)

2

Circuits (maximum)

2

Color - Resin

Black

Durability (mating cycles max)

50

First Mate / Last Break

No

Flammability

94V-0

Glow-Wire Compliant

No

Guide to Mating Part

No

Keying to Mating Part

None

Lock to Mating Part

Yes

Material - Metal

Brass, Phosphor Bronze

Material - Plating Mating

Gold

Material - Plating Termination

Tin

Material - Resin

High Temperature Thermoplastic

Net Weight

0.484/g

Number of Rows

1

Orientation

Vertical

PC Tail Length

3.30mm

PCB Locator

No

PCB Retention

None

PCB Thickness - Recommended

1.60mm

Packaging Type

Tube

Pitch - Mating Interface

2.54mm

Pitch - Termination Interface

2.54mm

Plating min - Mating

0.381µm

Plating min - Termination

1.905µm

Polarized to Mating Part

Yes

Shrouded

Fully

Stackable

No

Surface Mount Compatible (SMC)

No

Temperature Range - Operating

-40°C to +105°C

Termination Interface: Style

Through Hole

Electrical

(Please review the Product Specification for specific details.)

Current - Maximum per Contact

3.0A

Voltage - Maximum

250V

Agency Certification

Please find UL Certificates by searching the UL Database using the Molex Series Number. Click here to visit the UL Database

CSA

LR19980

UL

E29179

Solder Process Data

Solderability Shelf Life Statement

Duration at Max. Process Temperature (seconds)

003

Lead-freeProcess Capability

WAVE

Max. Cycles at Max. Process Temperature

001

Process Temperature max. C

260

Material Info

Engineering Number

A-70543-0001

Reference - Drawing Numbers

Packaging Specification

PK-70873-0014

Product Specification

PS-70400-001, PS-70541-001, TS-70541-100-001

Sales Drawing

SDA-70543-****

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
