Specifications
Brand Name :
Molex
Model Number :
50 - 57 - 9405
Certification :
ROSH
Place of Origin :
JAPAN
MOQ :
100set
Price :
Negotiable
Payment Terms :
T/T,PAYPAL,ALIPAY
Supply Ability :
5000SET/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Category :
Crimp Housings
Color :
Bk
Pich :
2.54mm
cable :
Lify
Series :
70066
UL :
E29179
Description

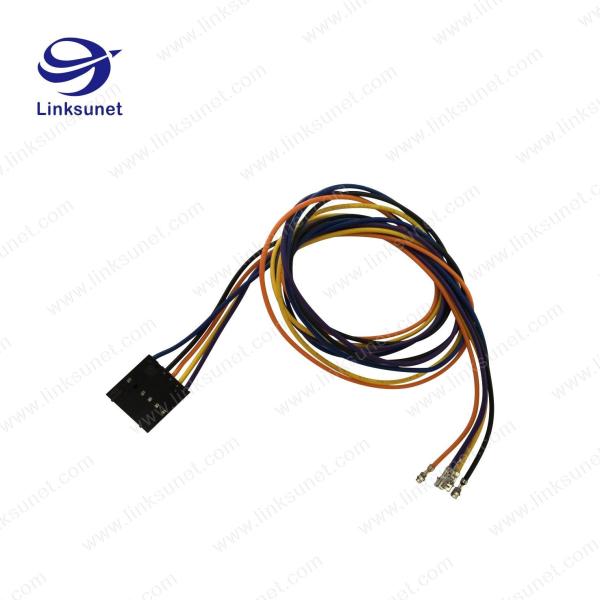

MOLEX 50 - 57 - 9405 SL Crimp Housing , Single Row , Male Female Automobile Wire Harness / 2.54mm Pitch

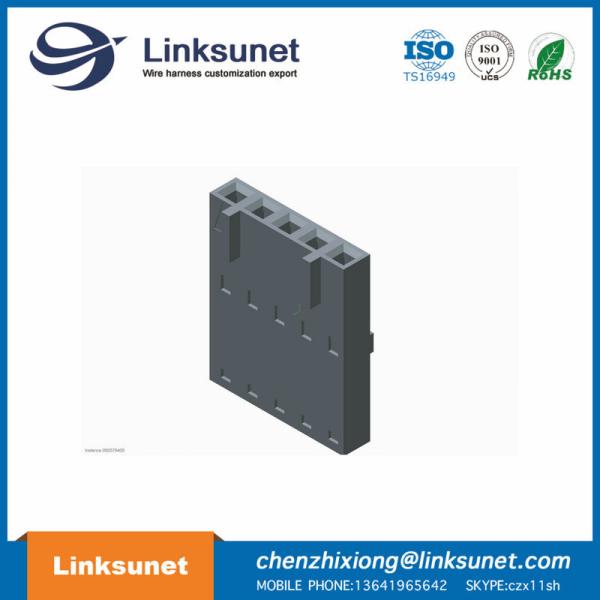

Part Number : 50 - 57 - 9405

SL™ Crimp Housing, Single Row, Version G, Positive Latch, 5 Circuits

Series image - Reference only

Status : Active

Series : 70066

Category : Crimp Housings

Overview : SL™ Modular Connectors

Engineering/Old PN : 70066-0179

Part Detail

Circuits ( maximum )

5

Color - Resin

Black

Flammability

94V - 0

Gender

Receptacle

Glow - Wire Compliant

No

Keying to Mating Part

Yes

Lock to Mating Part

Yes

Material - Resin

Polyester Alloy

Net Weight

0.520 / g

Number of Rows

1

Packaging Type

Bag

Panel Mount

No

Pitch - Mating Interface

2.54mm

Stackable

No

Temperature Range - Operating

- 40 °C to + 105 °C

UL standard internal wiring

UL1007 Hook-up Wire
UL1015 Hook-up Wire
UL1061 Hook-up Wire
UL1185 Single Conductor Shielded Cable
UL1316 Reinforced Hook-up Wire
UL1330 FEP Insulated Wire
UL1430 Crosslinked PVC Insulated Wire
UL1452 Reinforced Hook-up Wire
UL1533 Single Conductor Shielded Cable
UL1569 Hook-up Wire
UL1571 Hook-up Wire
UL1672 Reinforced Hook-up Wire
UL10064 FEP Insulated Wire
UL10086 High Temperature Resistant Hook-up Wire
UL10097 Crosslinked PVC Insulated Wire
UL10272 Hook-up Wire
UL10308 High Temperature Resistant Hook-up Wire
UL2464 Multi-Conductor Shielded Cable
UL2468 Flat Ribbon Wire
UL2509 Multi-Conductor Cable
UL2517 Multi-Conductor Shielded Cable
UL2547 Multi-Conductor Shielded Cable
UL2552 Multi-Conductor Shielded Cable
UL2576 Multi-Conductor Cable
UL2586 Multi-Conductor Cable
UL2651 Flat Ribbon Wire
UL2725 Multi-Conductor Shielded Cable
UL2835 Multi-Conductor Shielded Cable
UL2854 Multi-Conductor Shielded Cable
UL2919 Low Voltage Multi-Conductor Shielded Cable
UL20276 Multi-Conductor Shielded Cable
UL20379 Multi-Conductor Shielded Cable
UL21149 Multi-Conductor Shielded Cable
UL21520 Multi-Conductor Cable
UL3443 Hook-up Wire

UL halogen-free wire
UL11027 Hook-up Wire
UL10983 Single Conductor Shielded Cable
UL10982 Hook-up Wire
UL10981 Hook-up Wire
UL10984 Reinforced Hook-up Wire
UL10986 Single Conductor Shielded Cable
UL10987 Hook-up Wire
UL11025 Hook-up Wire
UL11028 Hook-up Wire
UL11029 Hook-up Wire
UL11045 Reinforced Hook-up Wire
UL11047 Reinforced Hook-up Wire
UL21451 Double Shielded Cable
UL21452 Double Shielded Cable
UL21455 Multi-Conductor Shielded Cable
UL21456 Multi-Conductor Shielded Cable
UL21457 Multi-Conductor Shielded Cable
UL21458 Flat Ribbon Wire
UL21461 Multi-Conductor Shielded Cable
UL21474 Multi-Conductor Shielded Cable
UL21476 Multi-Conductor Shielded Cable
UL21515 Flat Ribbon Wire
UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

Industrial electric wire

Flexible Single Core Cable
Flexible Multi-core Torsion Cable
Flexible Multi-core Shielded/Non-Shielded Control Cable

VDE standard wire

LifY Single Core,extra fine wires with highest flexibility
LIYY-Command Cable (Style 2464/300 V, (80°C)
LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

Automotive wire

FLRY-A Automotive Wire Series
FLRY-B Automotive Wire Series
FLRYW Automotive Wire Series

TWP Automotive Wire Series
TXL Automotive Wire Series
GXL Automotive Wire Series
AVS Automotive Wire Series
AVSS Automotive Wire Series

Packaging & Shipping

Export cartons
(406mm*306mm*250mm)
