Specifications
Brand Name :
Customized
Model Number :
Cha
Certification :
UL/ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
USD30-1000/PCS
Supply Ability :
1000PCS/D
Packaging Details :
CARTON OR WOOD BOX
Material :
PVC
COLOR :
BK
length :
Customized
Housing :
JST -XH-10
Description

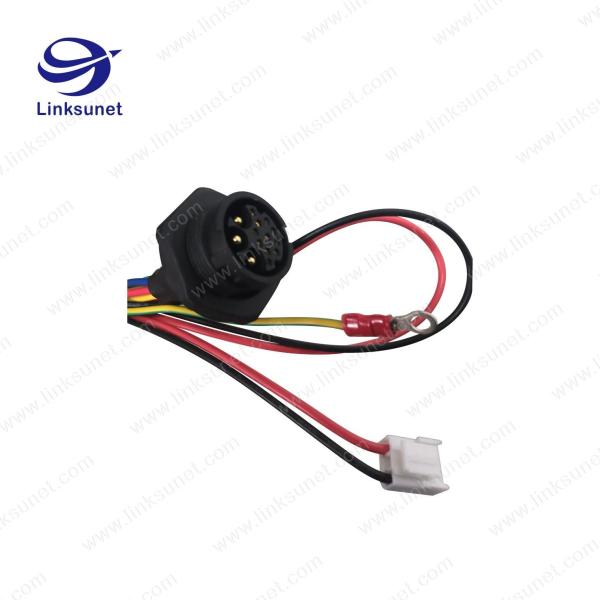

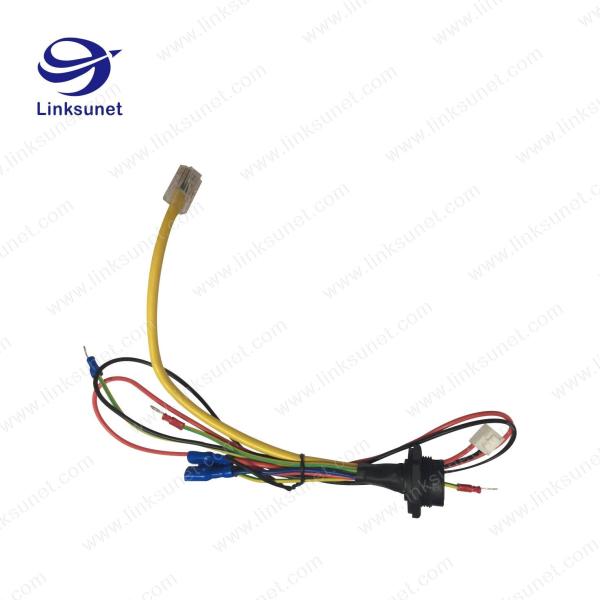

LED Connector Front Panel Mount lock bayonet type , solder add JST VHR-8N Soldering Wiring Harness / PVC / BK

Specifictations

Number of Contacts 2 3 3 9 18 24 3+9 3+11
Wire Gauge 4.0mm 2 ( 12AWG ) 8.4mm2 ( 8AWG ) 0.75mm2 ( 18AWG )

0.3mm2

( 22AWG )

 2.5mm2 + 0.2mm2 ( 12AWG + 24AWG )
Panel Thickness Max . 5.0mm Max . 2.2mm
Environmental Protection IP67
Mechanical Life 500 mating cycles
Operating Temperature - 45 ℃ ~ 105 ℃
Voltage Rating 300V 300V 300V 125V 125V 300V 300V
Rated Current ( 40 ℃ ) 20A 20A 50A 5A 5A 20A + 5A 20A + 5A

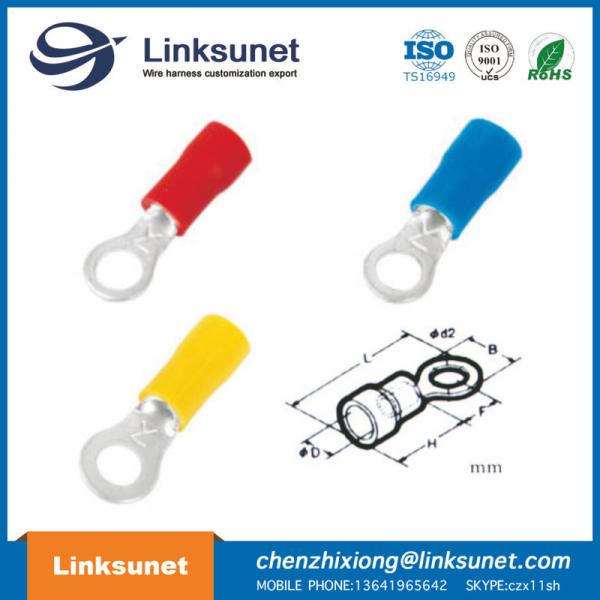

TVR / VF

Ring Terminals

Electrolytic copper

Tin plated

Easy entry

P.V.C.insulation

NO:E185793(N)Series VF1.25 VF5.5

PART NO TYPE WIRE RANGE Ø D H F B Ø d2 L COLOR Maximum current Crimping Tools
AWG / MCM mm2
00101 0.75 - 3 22 - 16 0.2 - 1.0 3.5 9.6 4.3 5.5 3.2 16.5 RED 10A YYT - 1 YYT - 7 2026NJ
00102 0.75 - 4 6.6 8 4.3 20.2
00103 0.75 - 5 6.6 8 5.3 20
00104 1.25 - 3S 22 - 16 0.5 - 1.6 4 10.6 4.3 5.5 3.2 17.7 19A
00105 1.25 - 3 4.3 5.5 3.7 17.7
00106 1.25 - 3M1 6.6 6.6 3.2 20.5
00107 1.25 - 3M 6.6 6.6 3.7 20.5
00108 1.25 - 4 7.3 8 4.3 21.9
00109 1.25 - 4M 6.6 6.6 4.3 20.5
00110 1.25 - 5 7.3 8 5.3 21.9
00111 1.25 - 6 11.4 11.6 6.4 27.8
00112 1.25 - 8 11.4 11.6 8.4 27.8 BLUE 27A
00113 2 - 3 16 - 14 1.0 - 2.6 4.7 10.7 7.7 8.5 3.2 22.7
00114 2 - 3M 6.3 6.6 3.7 20.3
00115 2 - 4 7.7 8.5 4.3 22.7
00116 2 - 4M 6.3 6.6 4.3 20.3
00117 2 - 5 7.2 9.5 5.3 22.7
00118 2 - 6 11 12 6.4 27.7
00119 2 - 8 11 12 8.4 27.7
00120 2 - 10 13.9 13.6 10.5 31.4
00121 3.5 - 4 12 - 10 2.6 - 4.6 5.8 13.5 8.2 9.5 4.3 26.5 YELLOW 37A
00122 3.5 - 5 8.2 9.5 5.3 26.5
00123 3.5 - 6 8.5 12 6.4 28
00124 5.5 - 3 12 - 10 4.6 - 6.6 6.2 13.6 8.2 9.5 3.7 26.6 48A
00125 5.5 - 4 8.2 9.5 4.3 26.6
00126 5.5 - 5 8.2 9.5 5.3 26.6
00127 5.5 - 6 13 12 6.4 32.6
00128 5.5 - 8 13.7 15 8.4 34.8
00129 5.5 - 10 13.7 15 10.5 34.8

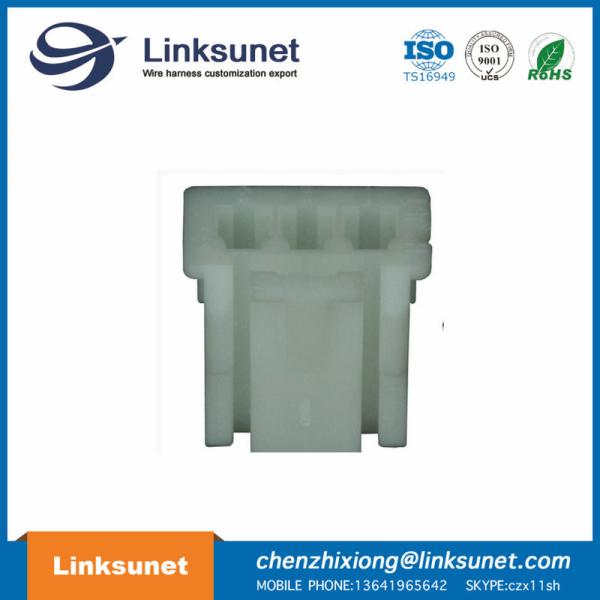

JST XAP

Image Manufacturer Part Number Description Connector Type Contact Type Number of Positions Pitch RoHS
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 02V - 1 CONN HOUSING XA 2POS 2.5MM Receptacle Female Socket 2 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 03V - 1 CONN XA HOUSING 3 POS 2.5MM Receptacle Female Socket 3 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 05V - 1 CONN XA HOUSING 5 POS 2.5MM Receptacle Female Socket 5 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 04V - 1 XA CONN DISCON CRIMP STYLE 4POS Receptacle Female Socket 4 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 07V - 1 CONN XA HOUSING 7 POS 2.5MM Receptacle Female Socket 7 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 08V - 1 CONN XA HOUSING 8 POS 2.5MM Receptacle Female Socket 8 0.098 " ( 2.50mm) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 09V - 1 CONN XA HOUSING 9 POS 2.5MM Receptacle Female Socket 9 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 10V - 1 CONN XA HOUSING 10 POS 2.5MM Receptacle Female Socket 10 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 12V - 1 CONN XA HOUSING 12 POS 2.5MM Receptacle Female Socket 12 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 13V - 1 CONN XA HOUSING 13 POS 2.5MM Receptacle Female Socket 13 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 11V - 1 CONN XA HOUSING 11 POS 2.5MM Receptacle Female Socket 11 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 06V - 1 CONN XA HOUSING 6 POS 2.5MM Receptacle Female Socket 6 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1
Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1 XAP - 14V - 1 CONN XA HOUSING 14 POS 2.5MM Receptacle Female Socket 14 0.098 " ( 2.50mm ) Bayonet Type LED Wire Connectors Front Panel Mount Lock TVR 1.25 - 5 Add JST XAP - 3V - 1

UL standard internal wiring

UL1007 Hook-up Wire
UL1015 Hook-up Wire
UL1061 Hook-up Wire
UL1185 Single Conductor Shielded Cable
UL1316 Reinforced Hook-up Wire
UL1330 FEP Insulated Wire
UL1430 Crosslinked PVC Insulated Wire
UL1452 Reinforced Hook-up Wire
UL1533 Single Conductor Shielded Cable
UL1569 Hook-up Wire
UL1571 Hook-up Wire
UL1672 Reinforced Hook-up Wire
UL10064 FEP Insulated Wire
UL10086 High Temperature Resistant Hook-up Wire
UL10097 Crosslinked PVC Insulated Wire
UL10272 Hook-up Wire
UL10308 High Temperature Resistant Hook-up Wire
UL2464 Multi-Conductor Shielded Cable
UL2468 Flat Ribbon Wire
UL2509 Multi-Conductor Cable
UL2517 Multi-Conductor Shielded Cable
UL2547 Multi-Conductor Shielded Cable
UL2552 Multi-Conductor Shielded Cable
UL2576 Multi-Conductor Cable
UL2586 Multi-Conductor Cable
UL2651 Flat Ribbon Wire
UL2725 Multi-Conductor Shielded Cable
UL2835 Multi-Conductor Shielded Cable
UL2854 Multi-Conductor Shielded Cable
UL2919 Low Voltage Multi-Conductor Shielded Cable
UL20276 Multi-Conductor Shielded Cable
UL20379 Multi-Conductor Shielded Cable
UL21149 Multi-Conductor Shielded Cable
UL21520 Multi-Conductor Cable
UL3443 Hook-up Wire

UL halogen-free wire
UL11027 Hook-up Wire
UL10983 Single Conductor Shielded Cable
UL10982 Hook-up Wire
UL10981 Hook-up Wire
UL10984 Reinforced Hook-up Wire
UL10986 Single Conductor Shielded Cable
UL10987 Hook-up Wire
UL11025 Hook-up Wire
UL11028 Hook-up Wire
UL11029 Hook-up Wire
UL11045 Reinforced Hook-up Wire
UL11047 Reinforced Hook-up Wire
UL21451 Double Shielded Cable
UL21452 Double Shielded Cable
UL21455 Multi-Conductor Shielded Cable
UL21456 Multi-Conductor Shielded Cable
UL21457 Multi-Conductor Shielded Cable
UL21458 Flat Ribbon Wire
UL21461 Multi-Conductor Shielded Cable
UL21474 Multi-Conductor Shielded Cable
UL21476 Multi-Conductor Shielded Cable
UL21515 Flat Ribbon Wire
UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

Industrial electric wire

Flexible Single Core Cable
Flexible Multi-core Torsion Cable
Flexible Multi-core Shielded/Non-Shielded Control Cable

VDE standard wire

LifY Single Core,extra fine wires with highest flexibility
LIYY-Command Cable (Style 2464/300 V, (80°C)
LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

Automotive wire

FLRY-A Automotive Wire Series
FLRY-B Automotive Wire Series
FLRYW Automotive Wire Series

TWP Automotive Wire Series
TXL Automotive Wire Series
GXL Automotive Wire Series
AVS Automotive Wire Series
AVSS Automotive Wire Series

Packaging & Shipping

Export cartons
(406mm*306mm*250mm)
