Specifications
Brand Name :
Molex
Model Number :
43645-0600+43640-0601
Certification :
UL/CE/ISO/TS16949/IPC-620D
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
T/T,PAYPAL,ALIPAY
Supply Ability :
5000pcs/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Brand :
molex
Color :
Bk
Pich :
3.0mm
cable :
Lify
leght :
customer demand
connector :
Single row
Description

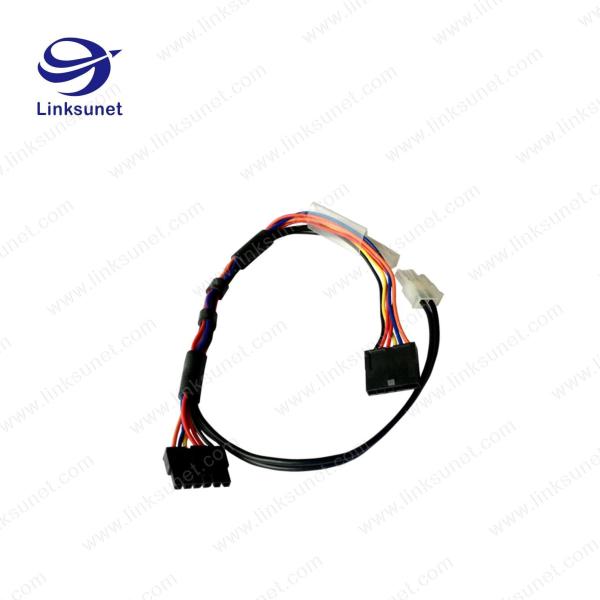

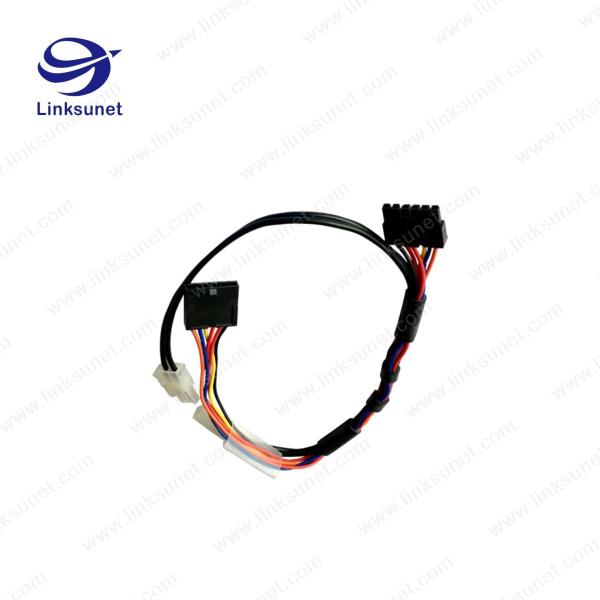

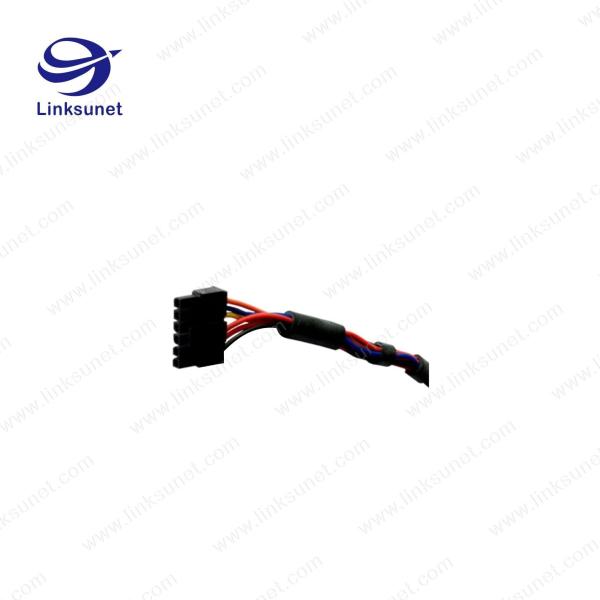

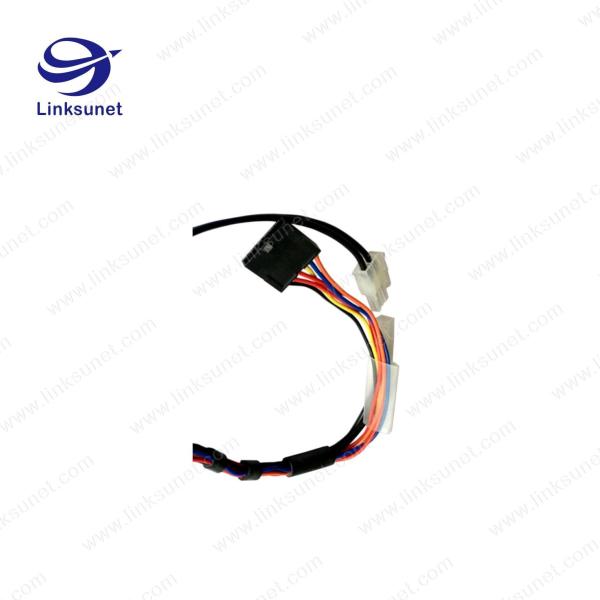

molex 43645 series and Lify-0.25 cable with On-line Crimp Force Monitor system

Application: internal wiring of machines

Small spacing , Connector2-12PIN ,Termial use 43030 series

current up to 4A

the chain wire harness, moving back and forth

cable jacket can choose :PVC,PUR,TPE

Temperature resistance:-40C°-105C°

Voltage:30V-600V

Connector housing :

1 43645 - 0200 Single row 3.0MM , 1 * 2 2PIN connector
2 43645 - 0300 Single row 3.0MM , 1 * 3 3PIN connector
3 43645 - 0400 Single row 3.0MM , 1 * 4 4PIN connector
4 43645 - 0500 Single row 3.0MM , 1 * 5 5PIN connector
5 43645 - 0600 Single row 3.0MM , 1 * 6 6PIN connector
6 43645 - 0700 Single row 3.0MM , 1 * 7 7PIN connector
7 43645 - 0800 Single row 3.0MM , 1 * 8 8PIN connector
8 43645 - 0900 Single row 3.0MM , 1 * 9 9PIN connector
9 43645 - 1000 Single row 3.0MM , 1 * 10 10PIN connector
10 43645 - 1100 Single row 3.0MM , 1 * 11 11PIN connector
11 43645 - 1200 Single row 3.0MM , 1 * 12 12PIN connector

1 43640 - 0200 Single row 3.0MM , 1 * 2 , with panel mounts 2PIN connector
2 43640 - 0300 Single row 3.0MM , 1 * 3 , with panel mounts 3PIN connector
3 43640 - 0400 Single row 3.0MM , 1 * 4 , with panel mounts 4PIN connector
4 43640 - 0500 Single row 3.0MM , 1 * 5 , with panel mounts 5PIN connector
5 43640 - 0600 Single row 3.0MM , 1 * 6 , with panel mounts 6PIN connector
6 43640 - 0700 Single row 3.0MM , 1 * 7 , with panel mounts 7PIN connector
7 43640 - 0800 Single row 3.0MM , 1 * 8 , with panel mounts 8PIN connector
8 43640 - 0900 Single row 3.0MM , 1 * 9 , with panel mounts 9PIN connector
9 43640 - 1000 Single row 3.0MM , 1 * 10 , with panel mounts 10PIN connector
10 43640 - 1100 Single row 3.0MM , 1 * 11 , with panel mounts 11PIN connector
11 43640 - 1200 Single row 3.0MM , 1 * 12 , with panel mounts 12PIN connector

1 43640 - 0201 Single row 3.0MM , 1 * 2 , without panel mounts 2PIN connector
2 43640 - 0301 Single row 3.0MM , 1 * 3 , without panel mounts 3PIN connector
3 43640 - 0401 Single row 3.0MM , 1 * 4 , without panel mounts 4PIN connector
4 43640 - 0501 Single row 3.0MM , 1 * 5 , without panel mounts 5PIN connector
5 43640 - 0601 Single row 3.0MM , 1 * 6 , without panel mounts 6PIN connector
6 43640 - 0701 Single row 3.0MM , 1 * 7 , without panel mounts 7PIN connector
7 43640 - 0801 Single row 3.0MM , 1 * 8 , without panel mounts 8PIN connector
8 43640 - 0901 Single row 3.0MM , 1 * 9 , without panel mounts 9PIN connector
9 43640 - 1001 Single row 3.0MM , 1 * 10 , without panel mounts 10PIN connector
10 43640 - 1101 Single row 3.0MM , 1 * 11 , without panel mounts 11PIN connector
11 43640 - 1201 Single row 3.0MM , 1 * 12 , without panel mounts 12PIN connector
Male Termail+Female Termial
1 43031 - 0001 20 - 24AWG , CHAIN TIN
2 43031 - 0002 20 - 24AWG , CHAIN GOLD
3 43031 - 0003 20 - 24AWG , CHAIN GOLD
4 43031 - 0004 26 - 30AWG , CHAIN TIN
5 43031 - 0005 26 - 30AWG , CHAIN GOLD
6 43031 - 0006 26 - 30AWG , CHAIN GOLD
7 43031 - 0007 20 - 24AWG , LOOSE TIN
8 43031 - 0008 20 - 24AWG , LOOSE GOLD
9 43031 - 0009 20 - 24AWG , LOOSE GOLD
10 43031 - 0010 26 - 30AWG , LOOSE TIN
11 43031 - 0011 26 - 30AWG , LOOSE GOLD
12 43031 - 0012 26 - 30AWG , LOOSE GOLD

1 43030 - 0001 20 - 24AWG , CHAIN TIN
2 43030 - 0002 20 - 24AWG , CHAIN GOLD
3 43030 - 0003 20 - 24AWG , CHAIN GOLD
4 43030 - 0004 26 - 30AWG , CHAIN TIN
5 43030 - 0005 26 - 30AWG , CHAIN GOLD
6 43030 - 0006 26 - 30AWG , CHAIN GOLD
7 43030 - 0007 20 - 24AWG , LOOSE TIN
8 43030 - 0008 20 - 24AWG , LOOSE GOLD
9 43030 - 0009 20 - 24AWG , LOOSE GOLD
10 43030 - 0010 26 - 30AWG , LOOSE TIN
11 43030 - 0011 26 - 30AWG , LOOSE GOLD
12 43030 - 0012 26 - 30AWG , LOOSE GOLD
13 43030 - 0038 UL1061 - 18AWG , CHAIN TIN
Datasheets 43645 - 0600
Micro - Fit Single Row Prod Spec
Product Training Modules Power Connectors
RoHS Information 0436450600 Cert of Compliance
Featured Product Power Connectors
Mfg CAD Models 43645 - 0600 . stp
0436450600 . pdf
PCN Design/Specification Micro - Fit Resin 20 / Aug / 2010
Micro - Fit Test Summary 12 / Aug / 2010
PCN Other Various Series Supplier Change 23 / Jul / 2014
Online Catalog Micro - Fit 3.0 ™ Series
Product Attributes Select All
Categories Connectors , Interconnects
Rectangular Connectors - Housings
Manufacturer Molex , LLC
Series Micro - Fit 3.0 ™ 43645
Packaging Bulk
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 6
Pitch 0.118" ( 3.00mm )
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging ( In - Line )
Contact Termination Crimp
Fastening Type Latch Lock
Color Black

UL standard internal wiring
UL1007 Hook-up Wire
UL1015 Hook-up Wire
UL1061 Hook-up Wire
UL1185 Single Conductor Shielded Cable
UL1316 Reinforced Hook-up Wire
UL1330 FEP Insulated Wire
UL1430 Crosslinked PVC Insulated Wire
UL1452 Reinforced Hook-up Wire
UL1533 Single Conductor Shielded Cable
UL1569 Hook-up Wire
UL1571 Hook-up Wire
UL1672 Reinforced Hook-up Wire
UL10064 FEP Insulated Wire
UL10086 High Temperature Resistant Hook-up Wire
UL10097 Crosslinked PVC Insulated Wire
UL10272 Hook-up Wire
UL10308 High Temperature Resistant Hook-up Wire
UL2464 Multi-Conductor Shielded Cable
UL2468 Flat Ribbon Wire
UL2509 Multi-Conductor Cable
UL2517 Multi-Conductor Shielded Cable
UL2547 Multi-Conductor Shielded Cable
UL2552 Multi-Conductor Shielded Cable
UL2576 Multi-Conductor Cable
UL2586 Multi-Conductor Cable
UL2651 Flat Ribbon Wire
UL2725 Multi-Conductor Shielded Cable
UL2835 Multi-Conductor Shielded Cable
UL2854 Multi-Conductor Shielded Cable
UL2919 Low Voltage Multi-Conductor Shielded Cable
UL20276 Multi-Conductor Shielded Cable
UL20379 Multi-Conductor Shielded Cable
UL21149 Multi-Conductor Shielded Cable
UL21520 Multi-Conductor Cable
UL3443 Hook-up Wire

UL halogen-free wire
UL11027 Hook-up Wire
UL10983 Single Conductor Shielded Cable
UL10982 Hook-up Wire
UL10981 Hook-up Wire
UL10984 Reinforced Hook-up Wire
UL10986 Single Conductor Shielded Cable
UL10987 Hook-up Wire
UL11025 Hook-up Wire
UL11028 Hook-up Wire
UL11029 Hook-up Wire
UL11045 Reinforced Hook-up Wire
UL11047 Reinforced Hook-up Wire
UL21451 Double Shielded Cable
UL21452 Double Shielded Cable
UL21455 Multi-Conductor Shielded Cable
UL21456 Multi-Conductor Shielded Cable
UL21457 Multi-Conductor Shielded Cable
UL21458 Flat Ribbon Wire
UL21461 Multi-Conductor Shielded Cable
UL21474 Multi-Conductor Shielded Cable
UL21476 Multi-Conductor Shielded Cable
UL21515 Flat Ribbon Wire
UL21517 Multi-Conductor Shielded Flat Ribbon Wiree

Industrial electric wire

Flexible Single Core Cable
Flexible Multi-core Torsion Cable
Flexible Multi-core Shielded/Non-Shielded Control Cable

VDE standard wire

LifY Single Core,extra fine wires with highest flexibility
LIYY-Command Cable (Style 2464/300 V, (80°C)
LIYY-TP-Command Cable-Twisted (Style 2464/300 V, (80°C)
LIYCY-Shielding Command Cable (Style 2464/300 V, (80°C)
LIYCY-TP-Shielding Command Cable-Twisted (Style 2464/300 V, (80°C)

Automotive wire

FLRY-A Automotive Wire Series
FLRY-B Automotive Wire Series
FLRYW Automotive Wire Series

TWP Automotive Wire Series
TXL Automotive Wire Series
GXL Automotive Wire Series
AVS Automotive Wire Series
AVSS Automotive Wire Series

Packaging & Shipping

Export cartons
(406mm*306mm*250mm)
