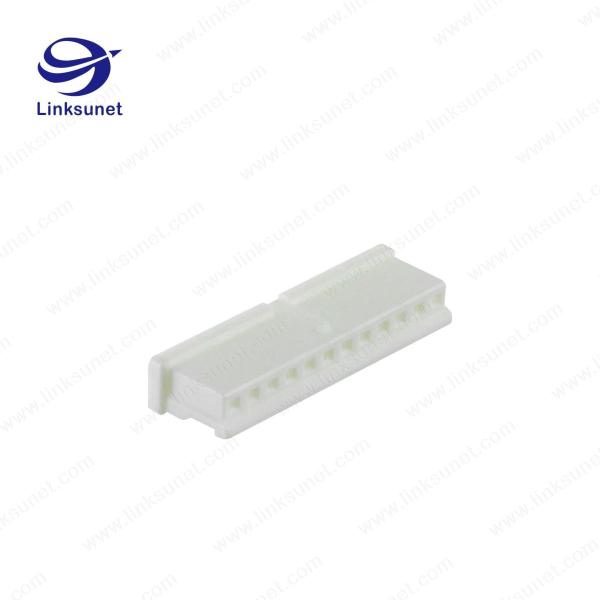

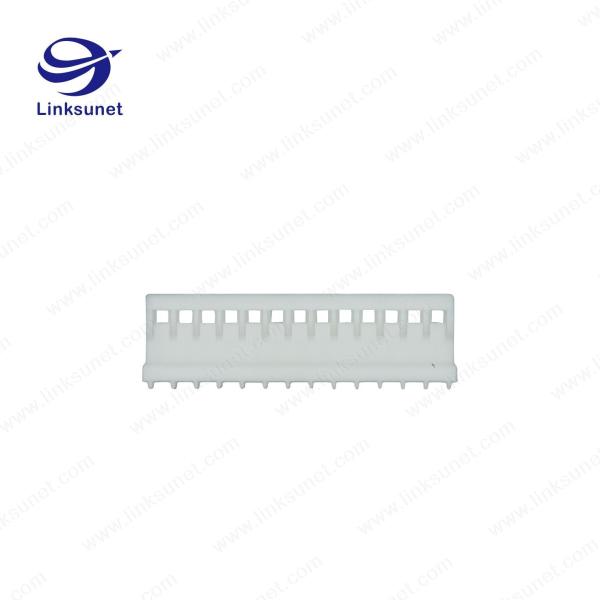

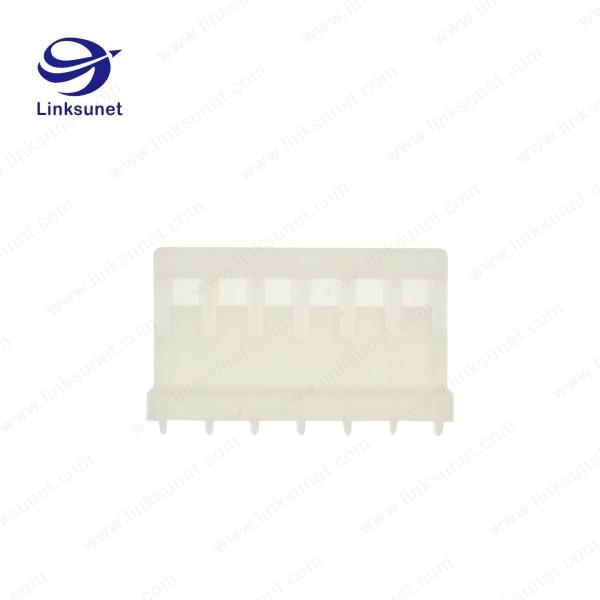

MOLEX Pico - SPOX 87439 series 2 - 15P 1.5mm natural connectors
Housing | Notes | |
1 | 87439 - 0200 | 2P , UL94 - V0 |
2 | 87439 - 0300 | 3P , UL94 - V0 |
3 | 87439 - 0400 | 4P , UL94 - V0 |
4 | 87439 - 0500 | 5P , UL94 - V0 |
5 | 87439 - 0600 | 6P , UL94 - V0 |
6 | 87439 - 0700 | 7P , UL94 - V0 |
7 | 87439 - 0800 | 8P , UL94 - V0 |
8 | 87439 - 0900 | 9P , UL94 - V0 |
9 | 87439 - 1000 | 10P , UL94 - V0 |
10 | 87463 - 1100 | 11P , UL94 - V0 |
11 | 87439 - 1200 | 12P , UL94 - V0 |
12 | 87439 - 1300 | 13P , UL94 - V0 |
13 | 87439 - 1400 | 14P , UL94 - V0 |
14 | 87439 - 1500 | 15P , UL94 - V0 |
Documents & Media
Category | Crimp Housings |
---|---|
Series | 87439 |
Application | Signal , Wire - to - Board |
Circuits ( maximum ) | 2 - 15 |
Color - Resin | Natural |
Flammability | 94V - 0 |
Gender | Receptacle |
Glow-Wire Compliant | No |
Lock to Mating Part | Yes |
Material - Resin | Nylon |
Number of Rows | 1 |
Pitch - Mating Interface | 1.50mm |
Temperature Range - Operating | - 55 °C to + 105 °C |
