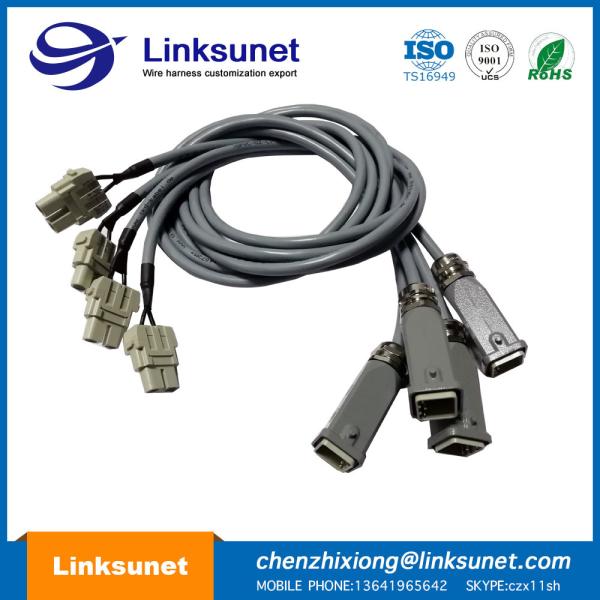

40A Harting Modular Connector Industrial Wire Harness 2P 09140022701 09120123001
40A Harting Modular Connector Industrial Wire Harness 2P 09140022701 09120123001
40A Harting Modular Connector Industrial Wire Harness 2P 09140022701 09120123001
40A Harting Modular Connector Industrial Wire Harness 2P 09140022701 09120123001
40A Harting Modular Connector Industrial Wire Harness 2P 09140022701 09120123001
40A Harting Modular Connector Industrial Wire Harness 2P 09140022701 09120123001
Specifications
Brand Name :
HARTING
Model Number :
09140022701+2G2.5+19200031443+09120123001
Certification :
UL/CSA/ISO9001/TS16949/IPC/WHMA-A-620
Place of Origin :
German
MOQ :
10PCS
Price :
Negotiable
Supply Ability :
1000PCS/D
Packaging Details :
CARTON OR WOOD BOX
Description :
CONN HOOD SIDE ENTRY SZ3A-M20-25
Connector Type :
HOOD
Size :
HA-3A
Processing mode :
Crimping+assembly
Material :
AL
Gland Size :
M20/M25
Description

40A Four Point Crimping Industrial Wire harness Harting Modula 2PConnector 09140022701 Add 09120123001

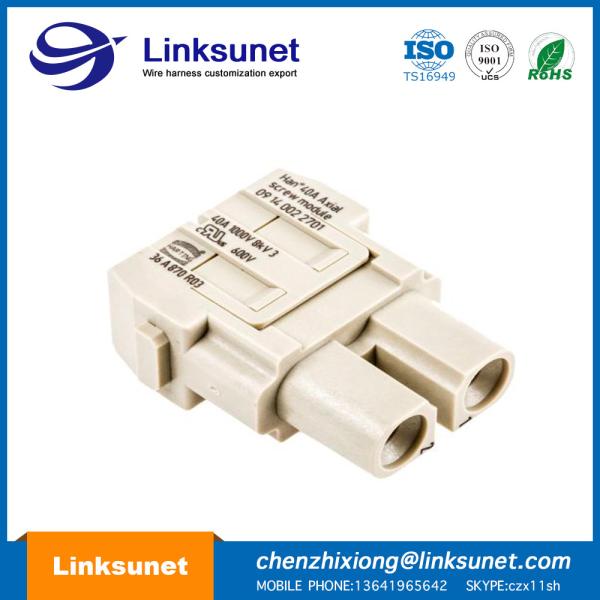

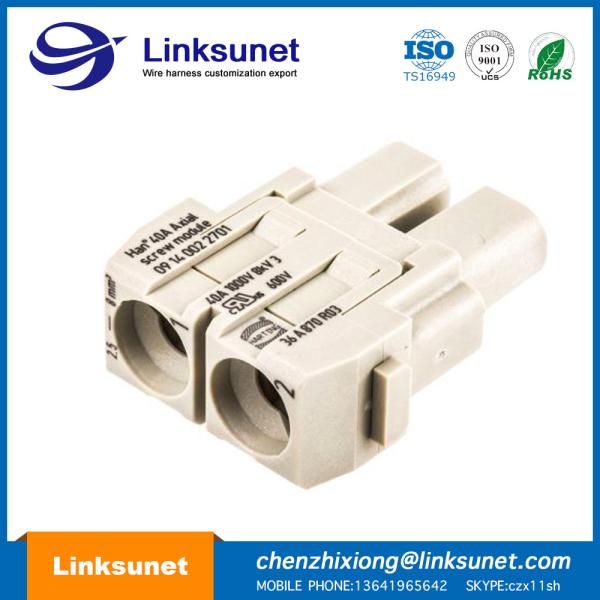

Connector : 09140022701

Connector hood :19200031443

Connector:09120123001

Termial : 09150006106

Gland : M20

Cable : TKDKABLE 2G2.5

Application situation:Robots, Control machines, Locomotives

Documents & Media

Datasheets

09140022701 Drawing
Featured Product

Han - Modular ® Connector System
Online Catalog Han - Modular ® Series

Product Attributes Select All
Categories Connectors , Interconnects
Heavy Duty Connectors - Inserts , Modules
Manufacturer HARTING
Series Han-Modular ®
Packaging Bulk
Part Status Active
Connector Type Module
Gender Female
Number of Positions 2
Size -
Termination Style Screw
Voltage Rating 600V
Current Rating 40A
Contact Type -
Operating Temperature - 40 °C ~ 125 °C
Color Gray
Housing Material Polycarbonate ( PC )
Contact Material Copper Alloy
Contact Finish Silver
Material Flammability Rating UL94 V - 0

Documents & Media
Datasheets

19200031443 Drawing Overview ( Sample : Han - Brid ® Cu )
Mfg CAD Models

19200031443 . stp
Online Catalog Han® A Series

Product Attributes Select All
Categories Connectors , Interconnects
Heavy Duty Connectors - Housings , Hoods , Bases
Manufacturer HARTING
Series Han ® A
Packaging Bulk
Part Status Active
Connector Type Hood
Style Top Entry
Size 3A
Lock Location Locking Clip ( 1 ) on Base Bottom
Thread Size M20
Size / Dimension 1.063 " L x 1.102 " W x 2.362 " H ( 27.00mm x 28.00mm x 60.00mm )
Housing Color -
Features -
Ingress Protection IP44
Housing Material Zinc , Die Cast
Housing Finish Powder Coated
Operating Temperature - 40 °C ~ 125 °C

Documents & Media
Datasheets

09120123001 Drawing
Featured Product

Han - Modular ® Connector System
Online Catalog Han ® Q Series

Product Attributes Select All
Categories Connectors , Interconnects
Heavy Duty Connectors - Inserts , Modules
Manufacturer HARTING
Series Han ® Q
Packaging Bulk
Part Status Active
Connector Type Insert without Contacts
Gender Male
Number of Positions 12
Size 3A
Termination Style Crimp , Push In with Lock
Voltage Rating 600V
Current Rating 10A
Contact Type Han ® D
Operating Temperature - 40 °C ~ 125 °C
Color Gray
Housing Material Polycarbonate ( PC )
Contact Material -
Contact Finish -
Material Flammability Rating UL94 V - 0

Q1: What's your guarantee?

Q2: What's your delivery time ?
A: The delivery time is 10 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 10 pcs.

Q4: Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q6.Production standard:

A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know
