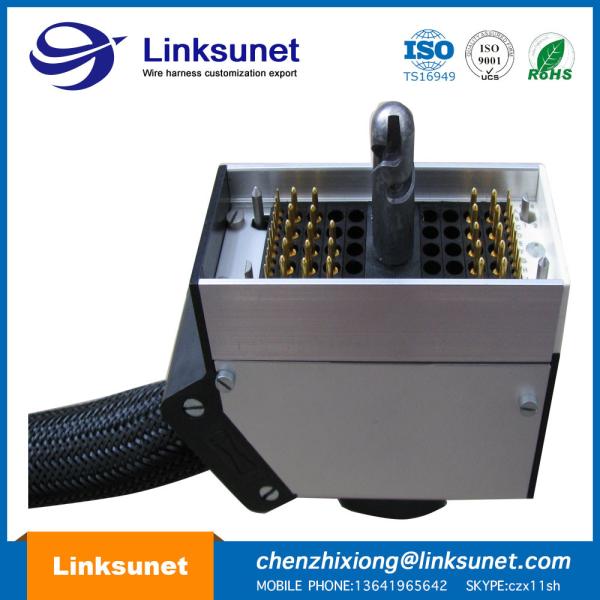

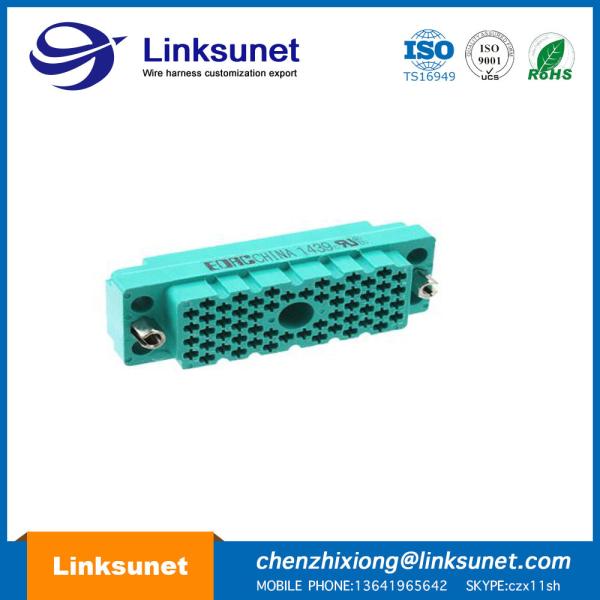

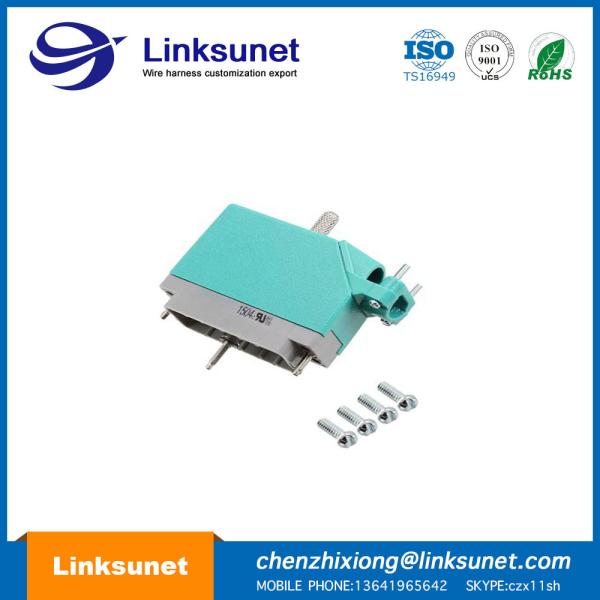

EDAC Automotive 3.81mm Termial harness 516-290-590 and HELUKABLE/ LIFY-0.75 BK Custom processing

• FEATURES: • .150" (3.81mm) Contact Spacing x .130" (3.30mm) or .150" (3.81mm) Row Spacing with staggered Grid • Plug and Receptacle in 20, 38, 56, 90 and 120 Contact Sizes • Edacon Hermaphroditic Contact Mating Design • Contact Termination Options include Crimp, P.C. Tail, Wire Hole and Wire Wrap • Mating and Unmating Simplified with use of Actuating Screws • Optional Covers with Side or Top Entry Cable Clamp in Plastic or Metal material Available for all Connector Sizes • Versatile Metal Cover Design permits Assembly or Disassembly After Cabling is Complete plus Cable Entry Style Flexibility • Actuating Screws, Locknuts, Polarizing Hardware, Covers and Contacts Suitable for either Plug or Receptacle • Polarizing Hardware Adjustable for 288 Mating Combinations • Tools Available for Contact Installation, Removal and Crimping and Polarizing Changes • RoHS Compliant & UL Recognized

Insulator Material Diallyl Phthalate, Thermoplastic Polyester or Polycarbonate UL 94V- 0 Color Green, or Polycarbonate Color: Grey Contact Material Copper Alloy Contact Plating Gold Plating over Nickel over entire contact Current Rating 8.5 Amperes Contact Resistance 10 milliohms maximum Withstanding Voltage 2000 VAC rms at sea level Insulation Resistance 5000 Megohms minimum Operating Temp -40°C to +125°C (Diallyl Phthalate Only) Operating Temp -40°C to +105°C Insertion & Withdrawal Force 2 to 16 Oz (0.56 to 4.45N) per contact position

Example Part Number: 516-038-500-212 Style and Material Cover Code Hardware Code Series 516 Total Number of Contacts 020, 038, 056, 090 or 120 Cover Code 4, 5, 6, 7 Description 0 No Cover Assembly 1 Plastic Cover, Top Entry Standard Clamp 2 Plastic Cover, Side Entry Standard Clamp 3 Plastic Cover, Top Entry Large Clamp 4 Plastic Cover, Side Entry Large Clamp 5 Metal Cover, Side Entry 6 Metal Cover, Top Entry Contact Code 1,2 Description & Tail Size Tail Length "G" 000 No Contacts Assembled ------------ 500 Wire Hole .110 x .024 (2.79 x 0.61) .245 (6.22) 520 P.C. Tail .25 x .024 (0.64 x 0.61) .215 (5.46) 540 Wire Wrap .050 x .024 (1.27 x 0.61) .600 (15.24) 541 Wire Wrap .026 x .024 (0.66 x 0.61) .620 (15.70) 542 Wire Wrap .050 x .024 (1.27 x 0.61) .790 (20.07) RACK AND PANEL CONNECTOR (PLUG AND RECEPTACLE) Style & Material 3 Style Insulator Material 1 Plug Green Diallyl Phthalate 2 Receptacle Green Diallyl Phthalate 3 Plug Grey Polycarbonate 4 Receptacle Grey Polycarbonate 5 Plug Green Polyester 6 Receptacle Green Polyester Hardware Code 8 Description 0 No Hardware 1 Actuating Screw & Polarizing Hardware 2 Locknut & Polarizing Hardware 5 Actuating Screw with No Polarizing Hardware 6 Locknut with No Polarizing Hardw

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.

Q2: What's your delivery time ?
A: The delivery time is 2-15 working days. The specific delivery time depends on the items and the quantity of your order.

Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 200 pcs.

Q4: Can you supply the sample?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q6.Production standard:

A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )

Application: internal wiring of machines

Documents & MediaWe can provide the service.
