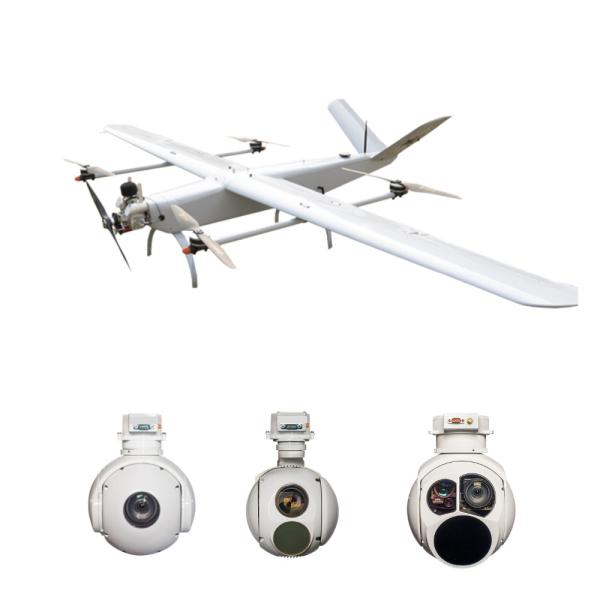

VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L
VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L
VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L
VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L
VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L
VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L
Specifications
Brand Name :
Accept Customization
Model Number :
HX360L
Certification :
CE, FCC, RoHS, REACH, KC, SAA, PSE, Brand Authorization, etc.
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Sets/ Month
Delivery Time :
7days
Packaging Details :
Packaging Specific To Industrial Drone
Drone Keywords :
Industrial Drone
OEM&ODM :
Available
Wingspan :
3600mm
Drone Power :
Gasoline
Basic Empty Weight :
19.5KG
Cruising Speed :
20m/s
Max Speed :
32m/s
Max Flight Time :
5Hours
Description

HX360L 5Hours Long Endurance 3600mm Wingspan Payload 5KG Pod Camera VTOL UAV Mapping Survey Inspection Industrial Drone

The HX360L hybrid vertical drone can carry a weight of 5kg. With a flight time of 5 hours, the HX360L can be used for surveying, mapping, inspection engineering, military and other tasks.

60cc Twin Cylinder Engine
-Double-layer shock-absorbing isolation design
-Effectively reduce engine idling vibration
-Oil level estimation (supported by EFI version)
-Real-time monitoring of fuel usage status in the air
-Support air start, reduce idling time, reduce carbon deposition
- Speed monitoring, real-time monitoring, reducing wear

ESC Telemetry
Real-time acquisition of power motor, voltage, current, speed, ESC temperature and other system data.

Motor Direct Drive Rudder Surface
There is no need for a tie rod, the rudder surface is directly driven by the steering gear, the transmission efficiency is higher, and the roll angle can reach 40°

HX360L Specifications

Industrial Drone
Wingspan Length 3600 mm
Basic Empty Weight 19.5 kg
Suggest Max Payload 5 kg
Takeoff Weight 30 kg
Cruising Speed 20 m/s
Max Speed 32 m/s
Stall Speed 17 m/s
Oil Tank Volume 6 L (Default)
Application mapping, inspection,survey, rescue

VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L

VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L

VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L

Why Choose Us?


*We support Customizing Industrial Drones(UAV) according to your work scene needs.

*HX Drone Factory started the drone business in 2017, reliable R&D capability and manufacturing capability are our core competitiveness.

*The goods can be sent to all over the world by international express within 7 days at the fastest.

*We have a 7*24 Hours After-Sales Service Team, which can solve various problems you encounter through online chat and video conference.

VTOL Industrial Drone Long Endurance 3600mm Wingspan Payload 5KG Pod Camera For Mapping Survey Inspection HX360L
