Specifications
Brand Name :
ABC
Model Number :
ABC-72V
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10 Set/Sets per Day
Delivery Time :
20-35days
Packaging Details :
General packing, according to the actual situation
Start type :
Electric
Engine :
72V (Dry battery)
Tyre :
1000-16/31.5-15
Drive type :
Drive type
Net weight :
1000 KG
Loading weight :
2.5 tons
Oveall size :
3450*1100*1250mm
Contain size :
1800*1100*450mm
Speed :
0-30km/h
Gear box :
Integral gearbox 4+1*2
Description

Tropical Rainforest Palm oil Garden Four Wheel Drive Articulated Agricultural Transport Truck

Product Description:

1. Preparation before driving:
(1) Check whether the power is sufficient and whether the circuit is normal; (2) Whether braking and steering are flexible and effective;

2. Driving: When starting, first turn on the power switch, release the brake, and then turn the speed control handle. When encountering a turn, the speed should be reduced in advance.

3. Parking Turn off the power switch, lift the handbrake, and move all function switches to the stop or off position.

4. Charging: Connect the charger output plug to the battery pack socket, open the battery waterproof cover, and connect to the 220V power supply until it is fully charged.

5.The hydraulic electric mini dumper truck is a product of our company. It adopts automatic hydraulic lifting system. No noise, no pollution, high efficiency, low energy consumption. The hydraulic electric mini dumper truck has beautiful appearance, exquisite design, excellent performance and comfortable driving. The hydraulic electric mini dumper truck is a useful tool for conveying and loading bulk materials in brick kiln factory, fire prevention factory, flour factory, concentrator, chemical factory and charge factory. The dumper truck is durable, climbing ability is strong, suitable for all kinds of mine roadway environment, especially suitable for narrow roadway, narrow road surface, inclined conditions. The hydraulic electric mini dumper truck can also transport ore, slag, transport tools, personnel and so on in the mine tunnel. The electric dumper truck has no heat, no smoke, no noise and no pollution, which brings a boon to miners suffering from diesel locomotive smoke and fires, maintaining the air quality of the roadway.

Product Parameters
Electric Dumper Truck
Load Capacity
2.5 tons
Overall Size
3450*1100*1250mm
Battery
72V (Dry battery)
Cargo Box Size
1800*1100*450mm
Driving Motor
5000W
Weight
1000kg
Gears
Forward and Reverse Gears
Lifting System
Hydraulic Lifting System
Front Tire
500-14
Brake
Hand Brake and Foot Brake
Rear Tire
650-16
Gearbox
High Speed and Low Speed

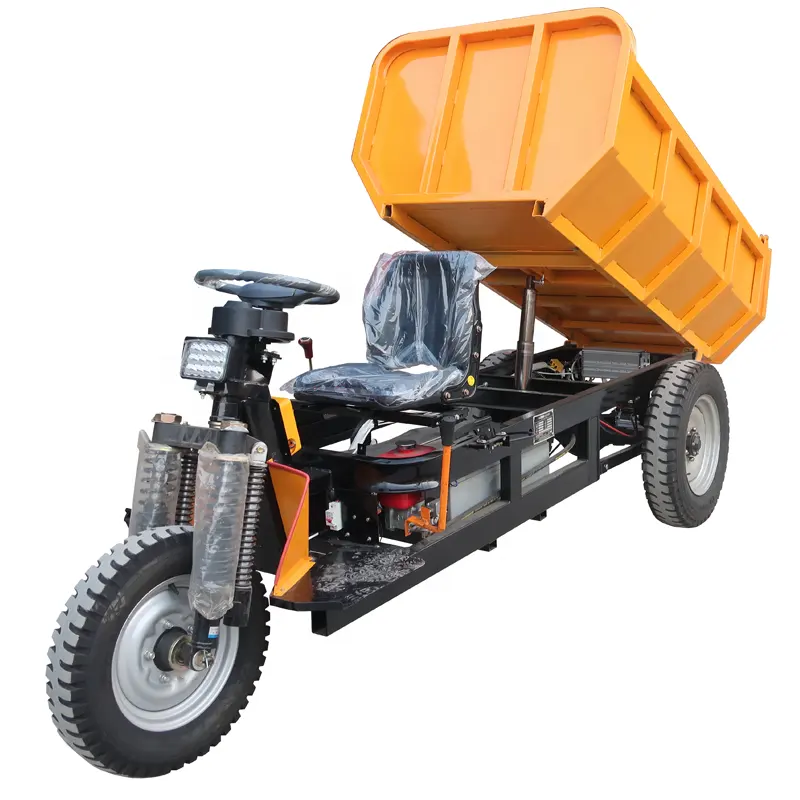

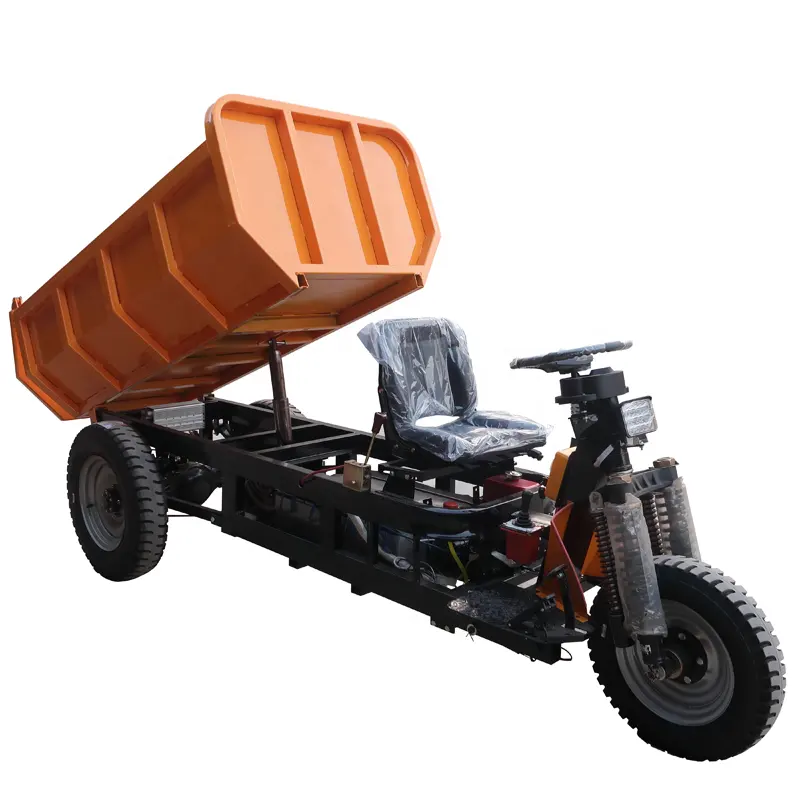

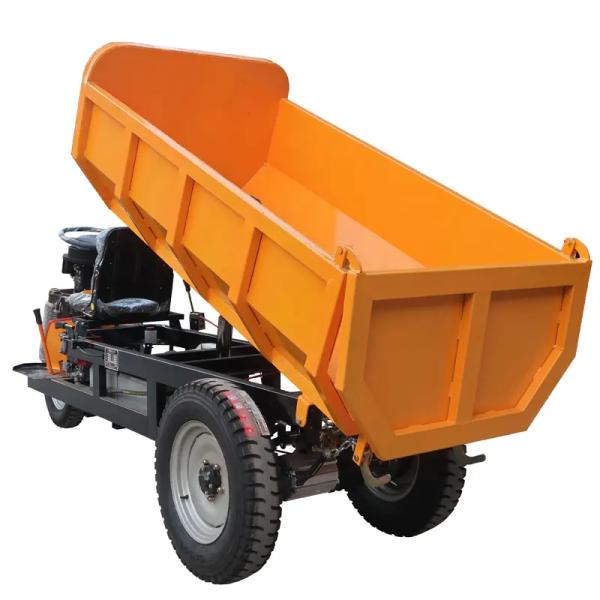

Product Display

​2.5t Oil Palm Transportation Tractor Mini Tipper Site Dumper 72V Battery Dump Truck Hydraulic Cylinder2.5t Oil Palm Transportation Tractor Mini Tipper Site Dumper 72V Battery Dump Truck Hydraulic Cylinder2.5t Oil Palm Transportation Tractor Mini Tipper Site Dumper 72V Battery Dump Truck Hydraulic Cylinder2.5t Oil Palm Transportation Tractor Mini Tipper Site Dumper 72V Battery Dump Truck Hydraulic Cylinder

FAQ

Q: How To Order ?

A: Step 1, please tell us what model and quantity you need;

Step 2, then we will make a PI for you to confirm the order details;

Step 3, when we confirmed everything, can arrange the payment;

Step 4, finally we deliver the goods within the stipulated time.

Q: When you ship my order

R: Normally container need 15-40days, sample 3-7DAYS

Q: How about the quality guarantee period?

R: One year.

Q: Do you have the certificates?

R: Yes, we have passed the CE and CCC certification.

Q: Do you offer ODM & OEM service.

R: Yes, we can custom design for specific application.

Q: When can I get the quotation?

R:We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q: How can I get a sample to check your quality?

R:After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ

Q: What is your main market?

R:Southeast Asia, South America,Middle East.North America,EU After-sales Service 1 year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
