Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm
Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm
Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm
Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm
Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm
Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm
Specifications
Brand Name :
ABC
Model Number :
ABC-PTR-424HG1
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
10 Set/Sets per Day
Delivery Time :
20-35days
Packaging Details :
General packing, according to the actual situation
NET WEIGHT（btm)(kg) :
1500
TREAD （mm） :
1220
WHEEL BASE（mm） :
1960
MIN TURNING RADIUS :
2000
MAX CLIMBABLE GRADIENT :
25
APPROACH ANGLE :
25
DEPARTURE ANGLE :
34
GROUND CLEARANCE(mm) :
280
LENGTH*WIDTH*HEIGHT(mm) :
4870*1500*2300
Description

Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm

Product Description:

Palm Oil Tractor is a powerful and reliable machine suitable for harvesting palm oil on plantations. It is equipped with a 4WD front axle and has a weight of 1250kg. The wheelbase is 2150mm and the tire type is agricultural. The PTO speed can be adjusted from 240-1340rpm, making it the perfect choice for palm oil harvesting. Its robust construction, reliable performance and long-lasting durability make it the ideal choice for palm oil harvesting operations. The Palm Oil Tractor is a highly efficient machine that will help you save both time and money in the long run.

Our Palm Oil Tractor and trucks are one of the best qualities in China and exported to more than 40 countries all over the world, like Malaysia, Ecuador, Peru,Chile, Bolivia and Ghana, South Africa. Quality first is always our first principle.

1.Stability of robotic arm
(It mainly depends on two points:
We previously used hyva's robotic arm, which was expensive, heavy, and inefficient, which affected the efficiency of picking palm fruits.
The gripper does not need to be too large, as it can also affect the efficiency of picking up palm fruits.
Currently, our factory's equipment has achieved this target )
2. Vibration and noise reduction
(We chose the three cylinder engine produced by Changchai Company Limited with lower noise. Currently, our factory's equipment has achieved this target)

3.The speed of grasping throughout the entire process
(Currently expects the entire process to take 7-8 seconds, our factory's equipment has achieved this target)

4.Waterproof and self rescue
(Seal the rear axle to prevent the entry of mud and water. Equipped with differential lock for better self rescue and escape.Currently, our factory's equipment has achieved this target)

5.Replace spare parts
(Customers hope that most of the spare parts needed to replace our factory's equipment can be easily purchased from hardware stores in local, rather than from China. This way, both repair time and work efficiency can be greatly improved. ensuring that over 85% of spare parts can be easily purchased in hardware stores in local, and the rest can be shipped directly from China. Currently, our factory's equipment has achieved this target)

Product Parameters
PTR-424DW PTR-424DT PTR-424DTH PTR-424DTH PTR-424HG
OVERALL DIMENSION(整车尺寸)
WHEEL BASE(mm)(轴距) 1960 1960 1960 1960 1960
TREAD (mm)(轮距) 1220 1220 1220 1220 1220
MAX CLIMBABLE GRADIENT(最大爬坡度) 25 25 25 25 25
APPROACH ANGLE(接近角) 25 25 25 25 25
DEPARTURE ANGLE(离去角) 34 34 34 34 34
MIN TURNING RADIUS(最小转弯半径) 2000 2000 2000 2000 2000
LENGTH*WIDTH*HEIGHT(mm)(长宽高) 4870*1500*2300 4870*1500*2300 4870*1500*2300 4870*1500*2300 4870*1500*2300
GROUND CLEARANCE(mm)(离地间隙) 280 340 280 340 280
NET WEIGHT(btm)(kg)(自重) 1250 1930 1310 1990 1700
BUCKET DIMENSION(货箱尺寸)
INTERIOR LENGTH*WIDTH*HEIGHT(mm)(长宽高) 2400*1400*460 2400*1400*460 2400*1400*460 2400*1400*460 2400*1400*460
ENGINE(发动机)
TYPE(型号) CHANGCHAI 390,WATER COOLING,DIESEL,DIRECT INHECTION
CYLINDERS(缸数) 3
DISPLACEMENT (L)(排量) 1.813L
HORSE POWER(马力) 42HP
TRANSMISSION(变速箱)
TYPE(型号) 12Y(3+1)*2
GEAR BOX HEAVY DUTY 4 SPEED MANUAL(DIRECT HI/LOW WITH SYNCHROMESH)四档手动变速带高低变速
ROAD SPEEDS(速度km/h)
MAX SPEED ON SMOOTH ROAD (km/h)(光滑路面最快速度) 35 20 35 20 35
STEERING SYSTEM(转向系统)
TYPE(型号) HYDRAULIC POWER WITH ARTICULATED STEERING(液压折腰转向)
AXLE(桥)
REAR(后桥) WITH DIFFERENTIAL LOCK AND SEALING DEVICE(带差速锁全密封后桥)
TYRE&TRACK(轮胎&履带)
TYPE(类型) WIDTH TIRES(宽胎) ENGINEING TRACK(工程履带) WIDTH TIRES(宽胎) ENGINEING TRACK(工程履带) WIDTH TIRES(宽胎)
WIDTH*SECTION*PITCH(履带:宽度*节数*节距) 31*15.5-15(TYRE) 320*32*90(TRACK) 31*15.5-15(TYRE) 320*32*90(TRACK) 31*15.5-15(TYRE)
BRAKES (刹车系统)
MAIN BRAKE(主要刹车) DRUM BRAKE(鼓式刹车)
CLUTCH(离合器)
TYPE(类型) 11” DRY SINGLE PLATE. HEAVY DUTY(11寸干式离合)
DRIVETRAIN(驱动形式)
TYPE(类型) FOUR WHEEL DRIVE(4*4) WITH HI/LOW GEAR(四轮驱动带高低变速)
PTO WITH WITH WITH WITH WITH
DUMP(卸货系统)
LIFT CYLINDER STROKE(mm)(举升油缸行程) 300 300 1150 1150 1150
SCISSOR CYLINDER STROKE(mm)(剪叉油缸行程) 160 160 160
UNLOADING HEIGHT(mm)(卸货高度) 2300 2300 2300

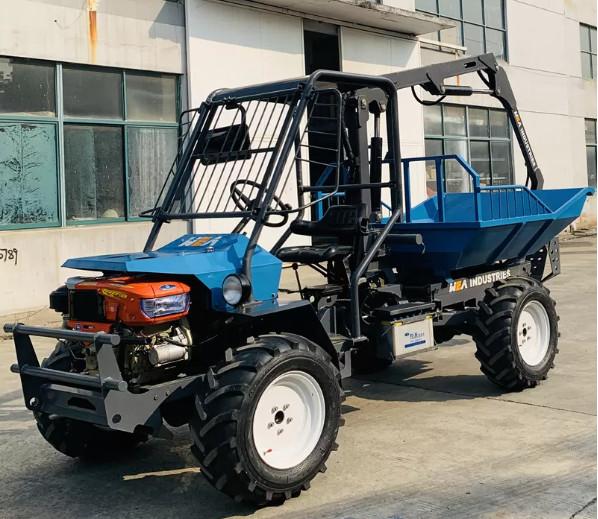

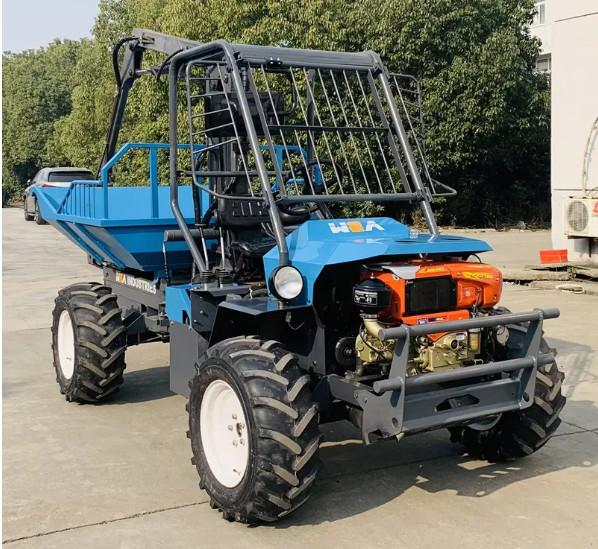

Product Display

​Palm Oil Tractor Palm Collection Vehicles With Robotic Mechanical ArmPalm Oil Tractor Palm Collection Vehicles With Robotic Mechanical ArmPalm Oil Tractor Palm Collection Vehicles With Robotic Mechanical Arm

FAQ

Q: How To Order ?

A: Step 1, please tell us what model and quantity you need;

Step 2, then we will make a PI for you to confirm the order details;

Step 3, when we confirmed everything, can arrange the payment;

Step 4, finally we deliver the goods within the stipulated time.

Q: When you ship my order

R: Normally container need 15-40days, sample 3-7DAYS

Q: How about the quality guarantee period?

R: One year.

Q: Do you have the certificates?

R: Yes, we have passed the CE and CCC certification.

Q: Do you offer ODM & OEM service.

R: Yes, we can custom design for specific application.

Q: When can I get the quotation?

R:We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q: How can I get a sample to check your quality?

R:After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ

Q: What is your main market?

R:Southeast Asia, South America,Middle East.North America,EU After-sales Service 1 year warranty for all kinds of products; If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
